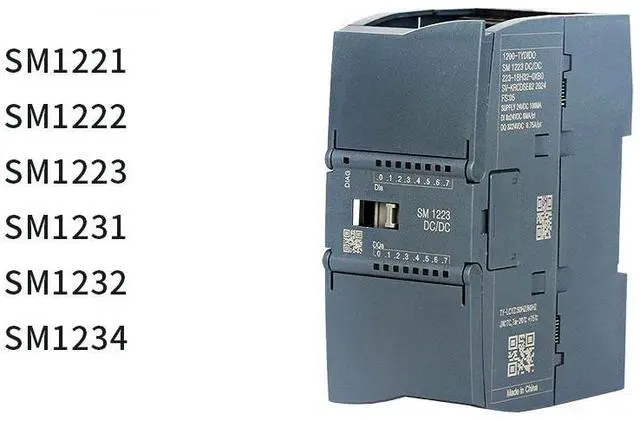

AMX S7-1200 PLC Expansion Module Siemens-Compatible 1200 Expansion IO Modules AMX Series 222-1HF32-0XB0 SM1222 [8-channel Digital Output /Relay]

Key Features

1. Fully compatible with Siemens S7-1200 PLC (firmware V4.0+)
2. Matches original modules in interface, mounting, and parameter settings
3. Offers various I/O combinations:
4. Digital input (DI): 8/16 points, 24VDC, NPN/PNP
5. Digital output (DO): 8/16 points, relay or transistor
6. Mixed I/O: combinations of DI/DO in 8/16 channel formats
7. Analog input (AI): 4 or 8 channels, ±10V, 020mA, 12-bit resolution
8. Analog output (AO): 2 or 4 channels, ±10V or 020mA, 14-bit resolution
9. Mixed analog I/O: 4 AI + 2 AO
10. Adjustable filter time for DI, high relay durability, and clear LED indicators
11. Compact design (4570mm width), DIN rail mountable, IP20 protection

Applications

Perfect for industrial automation systems using Siemens PLCs where cost-saving, reliable I/O expansion is required. Widely used in machinery control, HVAC, lighting systems, building management, and retrofitting existing installations.

Technical Specifications

1. Digital Input Modules:

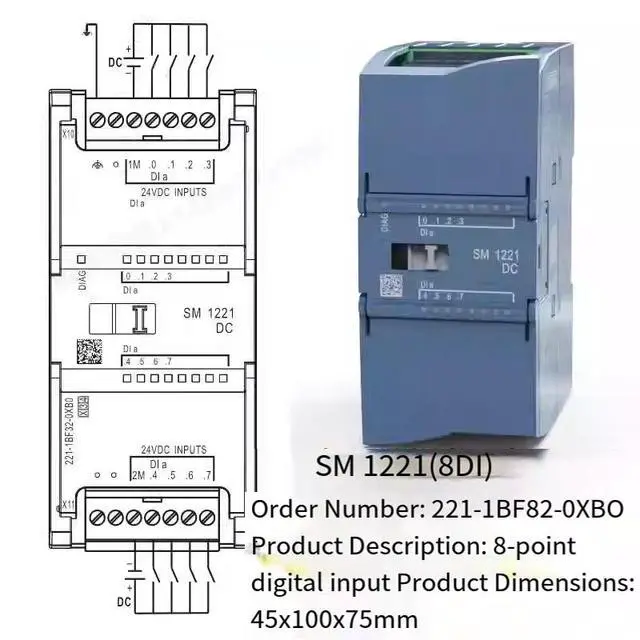

2. SM1221 8x/16x 24VDC input
3. 4mA typical input current, 15V logic high, 5V logic low
4. Configurable debounce filter (0.212.8ms)
5. Digital Output Modules:
6. SM1222 8x/16x relay or 24VDC transistor output
7. Relay: 2A per point, 250VAC/30VDC
8. Transistor: max 0.5A, 20.428.8VDC
9. Mixed DI/DO Modules:
10. SM1223 with 8/16 DI and 8/16 DO (relay or transistor)
11. Analog Input/Output Modules:
12. SM1231 (4/8 AI, ±10V or 020mA)
13. SM1232 (2/4 AO, ±10V or 020mA)
14. SM1234 (4 AI + 2 AO)
15. Resolution: 12-bit AI, up to 14-bit AO
16. Accuracy: ±0.10.6% full scale
17. Power Supply: 24VDC, reverse polarity protected
18. Operating Temperature: -10°C to +60°C
19. Dimensions: 4570mm (W) × 100mm (H) × 75mm (D)
20. Mounting: DIN rail, plastic housing, IP20
