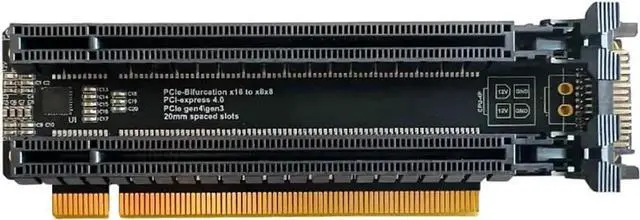

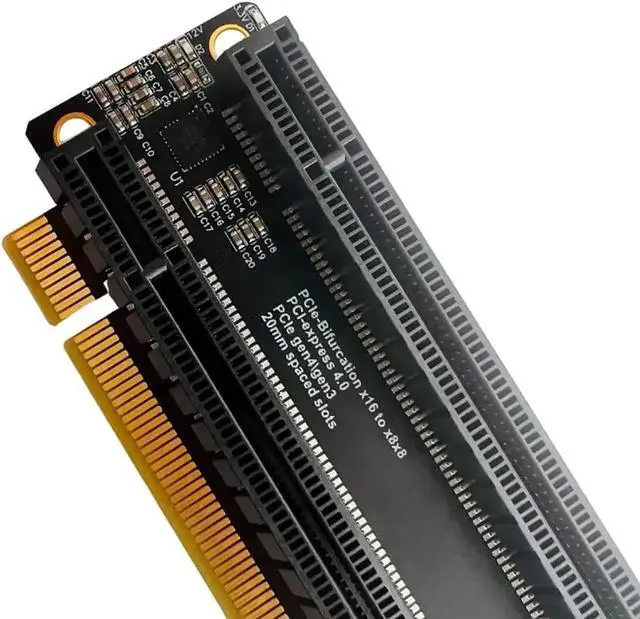

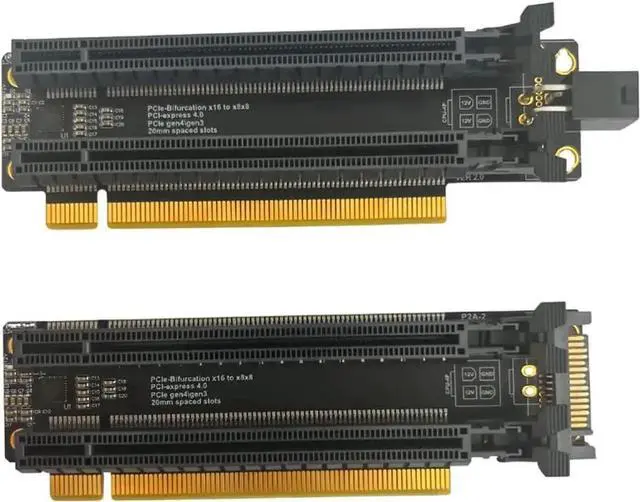

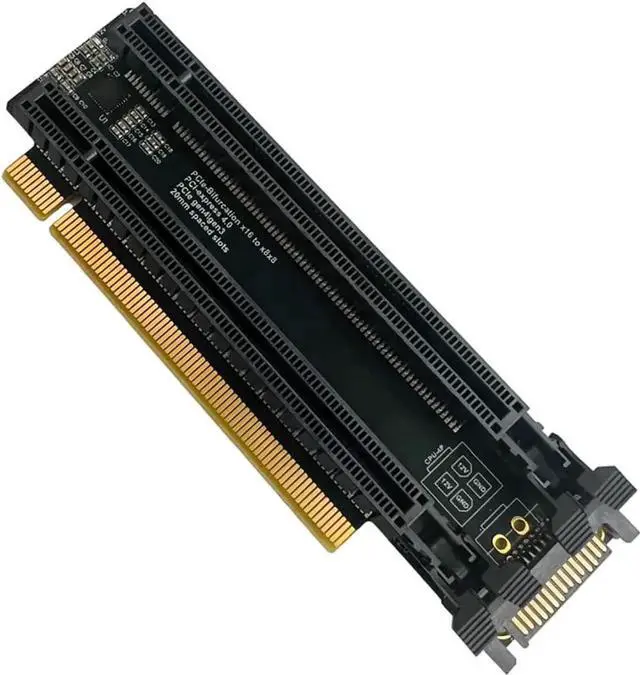

PCIe 4.0 x16 to x8x8 Bifurcation Split Expansion Card, Gen4 1-to-2 PCI-E Splitter with 20mm Slot Spacing & SATA CPU 4Pin Aux Power Port for GPU Capture Network Cards
- PCIe 4.0 Full Bifurcation Split: Single x16 lane split into dual independent x8 channels, backward compatible with PCIe 3.0
- 20mm Standard Slot Gap: Sufficient clearance between two PCIe slots to avoid GPU heatsink & bracket collision
- SATA CPU 4Pin Aux Power Interface: Supplementary power eliminates voltage drop under dual high-load PCIe devices
- Stable Signal Control Chip: Independent clock split IC ensures smooth simultaneous operation of two expansion cards
- Broad Device Compatibility: Works with graphics cards, video capture cards, 10G/25G network adapters and PCIe x8 peripherals
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This PCIe 4.0 x16 to x8x8 bifurcation split card turns one motherboard PCIe x16 slot into two separate x8 expansion ports, ideal for servers, editing workstations and multi-GPU rigs lacking native PCIe slots.
Compliant with PCI Express Gen4 standard, it retains complete transmission bandwidth and supports PCIe 3.0 downward adaptation. Important reminder: Your motherboard BIOS must enable PCIe bifurcation and x8x8 split mode to fully activate dual-channel performance.

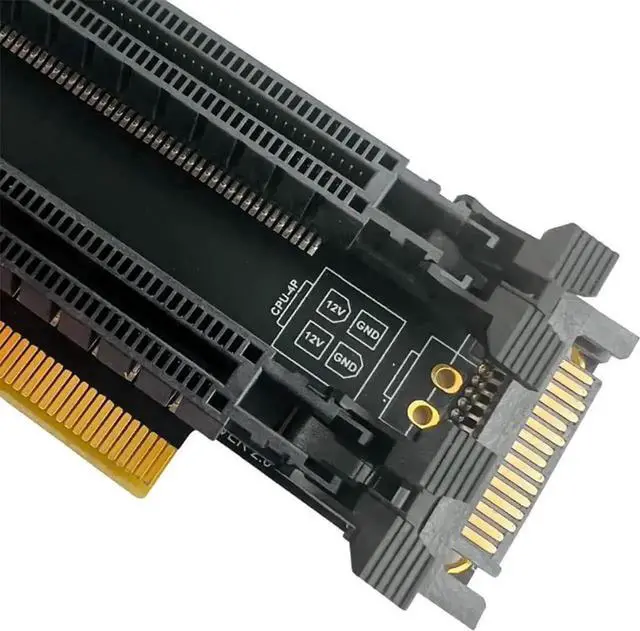

The two PCIe slots adopt 20mm spacing design, reserving enough space for large GPU cooling radiators without physical blockage between expansion cards. Equipped with a SATA-powered CPU 4Pin auxiliary power port, it supplies extra stable power to prevent crash or frame drop when running two high-power PCIe devices at full load.
Gold-plated contacts reduce oxidation and signal loss for long-time continuous operation, with built-in power indicator LED for quick status check. Widely applicable to dual-GPU rendering stations, multi-channel video recording hosts, multi-port network servers and industrial control expansion equipment. Just complete BIOS bifurcation setting before use, a high-efficiency PCIe lane expansion accessory.
