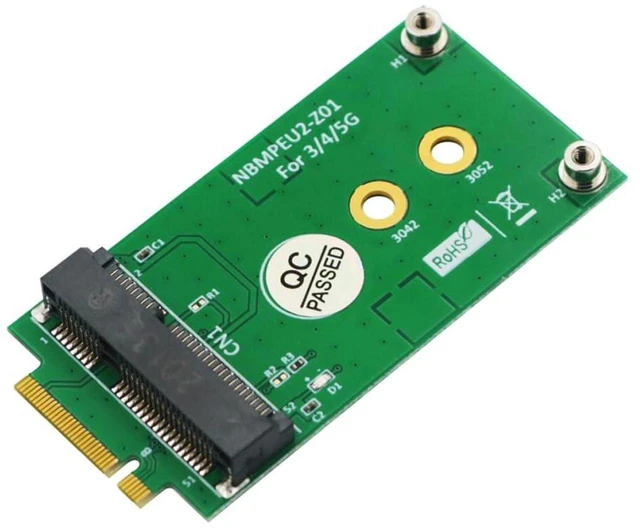

    AJMRTC NGFF M.2 Key B to Mini PCI-E WWAN Adapter Card, M.2 to mPCIe Converter for 3G 4G 5G GSM LTE Module, No SIM Card Slot, Compatible with 3042 3052 M.2 for Desktop PC

    Limited time offer, ends 11/29 By ‌ConnectFlow USA

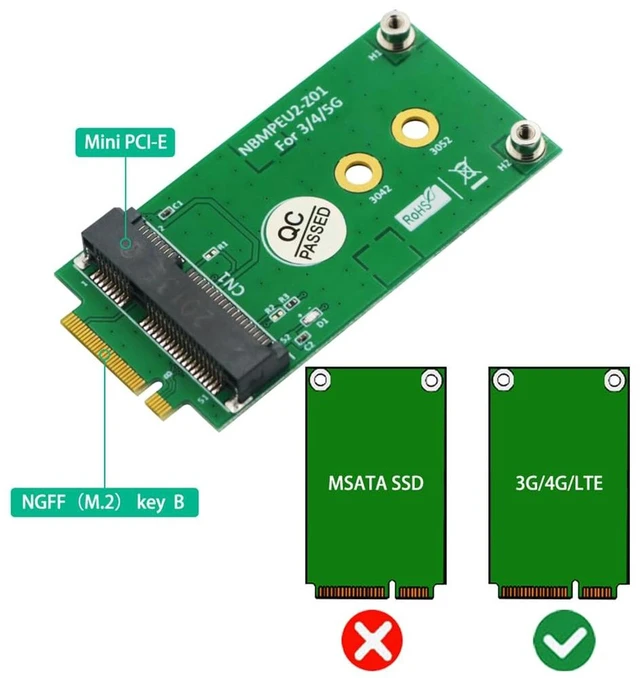

    • - Converts M.2 NGFF Key B WWAN module to standard Mini PCI-E interface, no SIM card slot on board
    • - Supports PCIe + USB dual signal pass-through for GSM, 3G, 4G LTE and 5G cellular modules

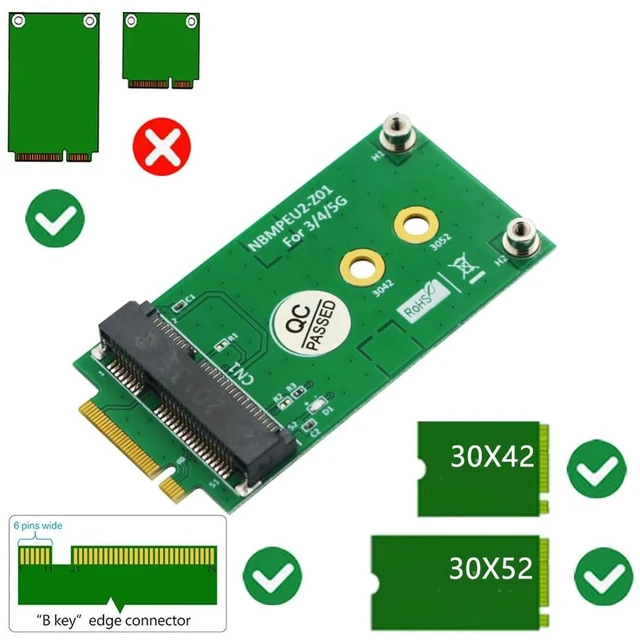

    • - Fits 3042 / 3052 M.2 Key B form factor WWAN modules, full & half size mPCIe compatible
    • - Passive plug-and-play design, no extra power needed, gold-plated contacts for stable connection

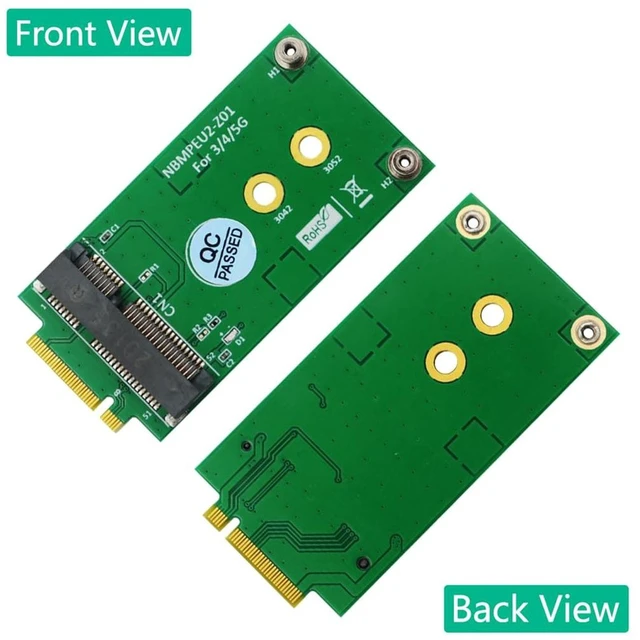

    • - Compact PCB layout, ideal for desktop, industrial PC and custom gateway wireless upgrade
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    AJMRTC M.2 Key B to Mini PCI-E adapter lets you install M.2 B-key WWAN cellular modules into devices with Mini PCI-E slots. It transmits both PCIe and USB signals for LTE and 5G modem functionality. This version does not come with an on-board SIM slot; your cellular module must carry its own SIM circuit. Cellular module and antennas are sold separately.


    Specifications

    1. Brand: AJMRTC
    2. Host Interface: M.2 NGFF Key B
    3. Output Interface: Mini PCI-E 52Pin
    4. Supported Module: 3G / 4G LTE / 5G GSM WWAN Module, 3042, 3052
    5. Signal: PCIe + USB pass-through
    6. Feature: No SIM Card Slot
    7. Power: Passive, no external power required
    8. Contact: Gold-plated contacts
    9. Supported OS: Windows, Linux
    10. Compatible: Desktop PC, Industrial IPC, Custom Gateway
    11. PCB Size: 48mm × 28mm
    12. Working Temperature: -10 ~ 60
    13. Note: WWAN module, antennas and SIM card are not included; module must have built-in SIM circuit
