$63.99
Meet Your Seller

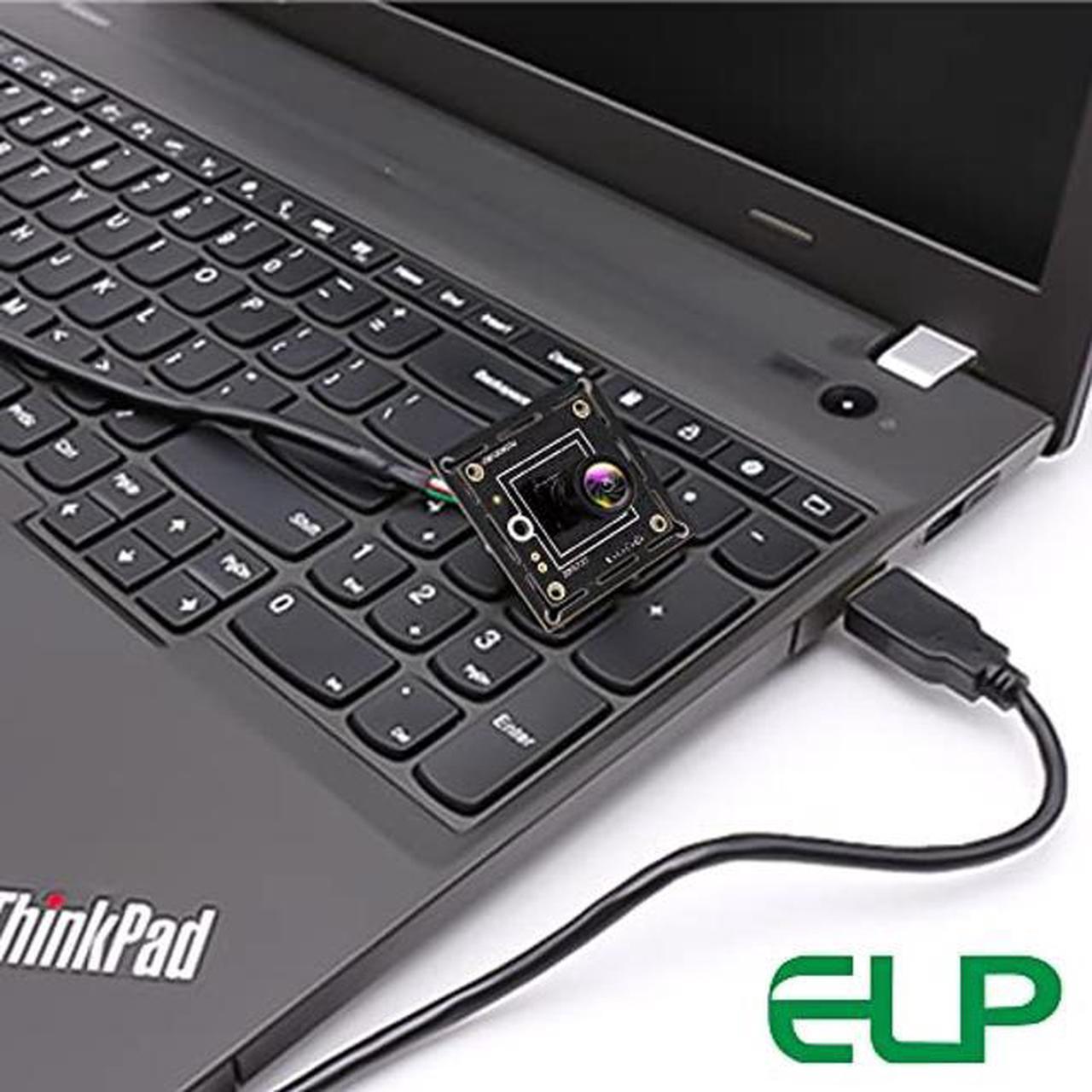

ELP USB Camera Module Super Mini 720p Wide Angle with 100degree M7 Lens Megapixel HD OV9712 Embedded Webcam Board for Computer USB2.0 UVC Video PC Opencv Camera Module,with 3.3ft/1m Cable for Laptop
- Max 1280X720@30fps HD 720P high resolution,high pixel technology for sharp image and accurate color reproduction.

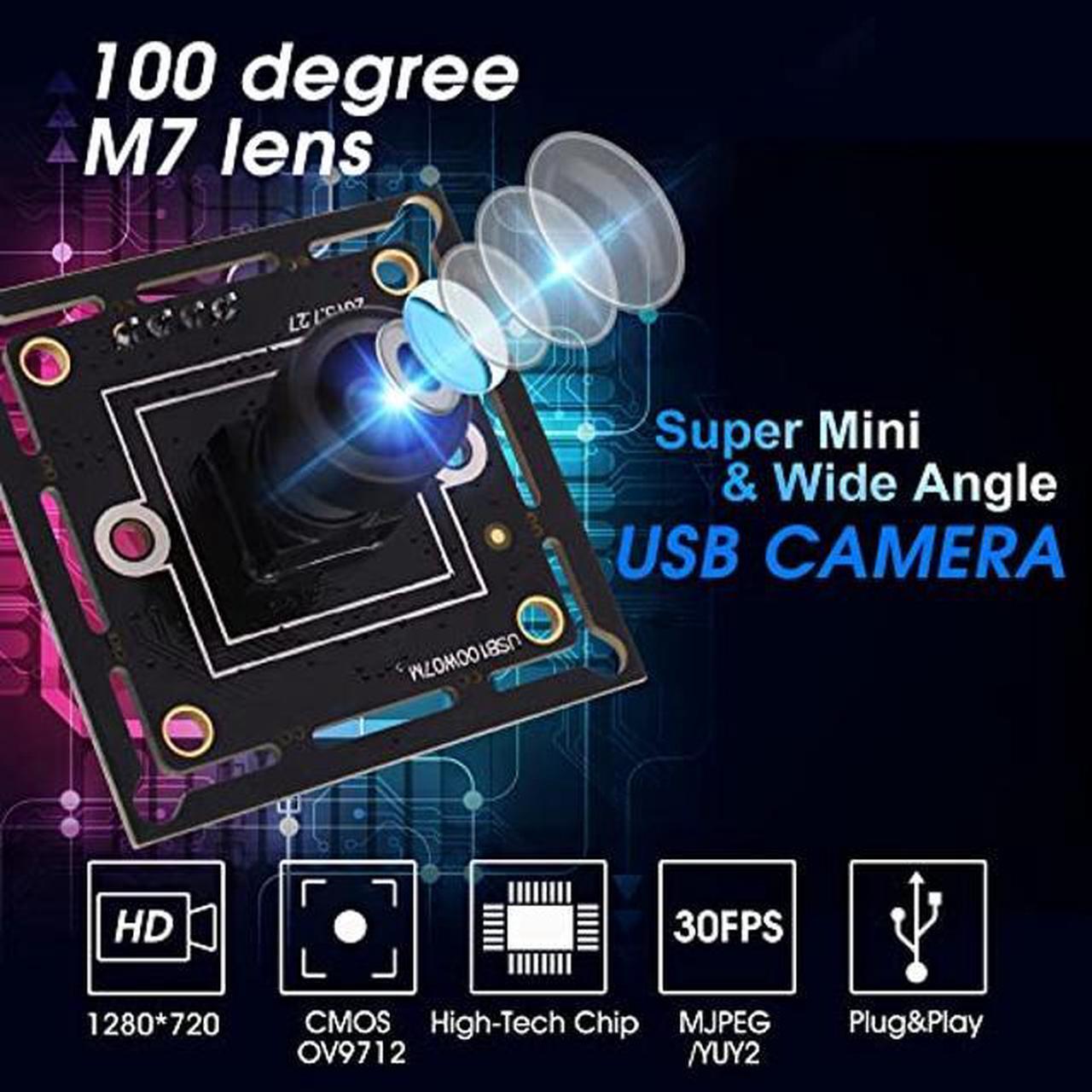

- 100 degree M7 lens usb webcam for wide angle video image,FOV(H) 93degree, FOV(D)98degree. High quality lens,true and undistorted color image.
- USB2.0 high speed mini size 32x32/26x26mm for PC camera interface,super small outline and thin profile for embedded applications.
- CMOS OV9712 sensor for high quality image and low power consumption - ideal for portable equipment.Free driver,easily used, plug and play.
- 1 Meter usb cord cable, support raspberry pi, opencv etc.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2,Mac or above.
+
+
Overview
Specs
Reviews

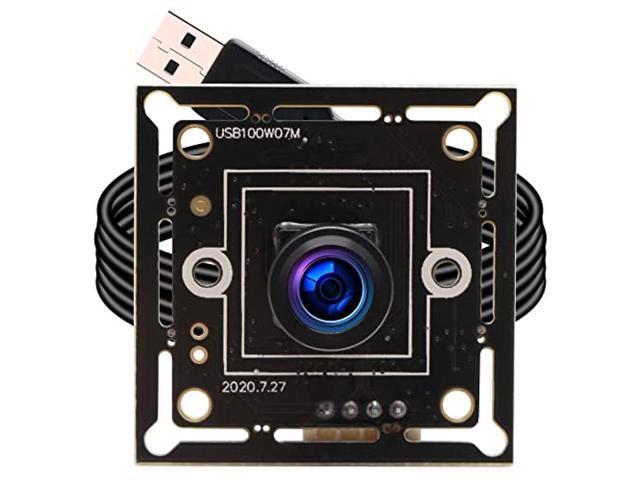

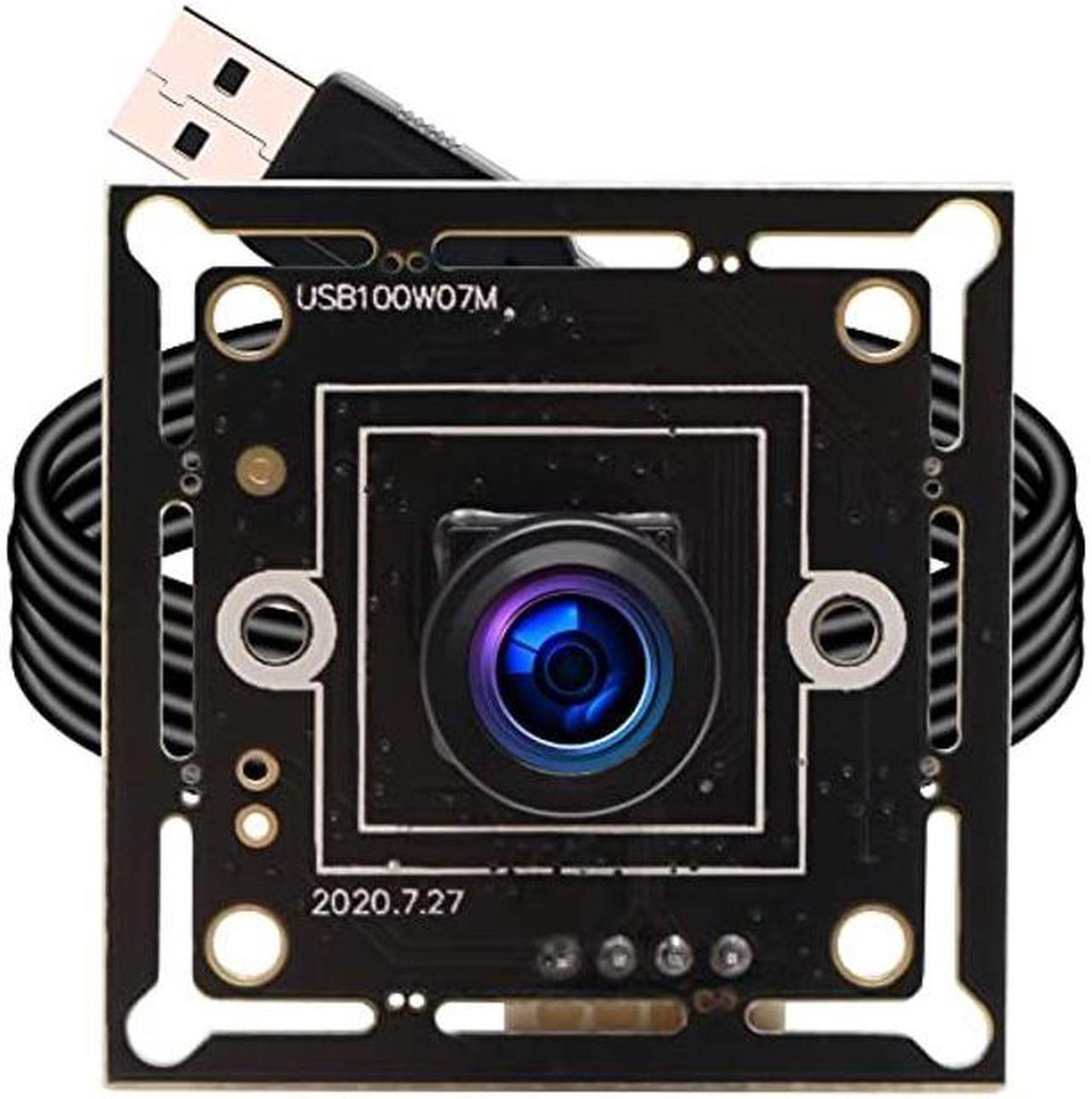

ELP-USB100W07M-MHV100 is a 720P USB 2.0 OmniVision OV9712 Color CMOS Sensor USB Camera Mini Size (32*32/26*26mm) with M7 100degree wide angle Lens
Specification:
Sensor OV9712
Lens Size 1/4 inch
Pixel Size 3.0 um X 3.0 um
image area 3888m x 2430m
Max. Resolution 1280 (H) X720 (V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & frame MJPEG: 320X240@ 30fps, 352X288@ 30fps
640X360@60fps, 640X480@ 30fps
800X600@ 30fps, 1280X720@ 30fps
YUV: 320X240@ 30fps, 352X288@ 30fps
640X360@30fps, 640X480@ 30fps
800X600@ 15fps, 1280X720@ 5fps
S/N Ratio 40dB
Dynamic Range 69dB
Sensitivity 3.7V /lux-sec@550nm
Mini illumination 0. 1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB 2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
Support OTG Protocol USB 2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard M7 LENS FOV (D) 138 (H) 100 Degree
LED board power connector Support 2P- 2.0 mm socket
Power supply USB BUS POWER 4P- 2.0 mm socket
Power supply DC5V
Operating Voltage 120mA~180mA
Working current -10~70
Working temperature -20~85

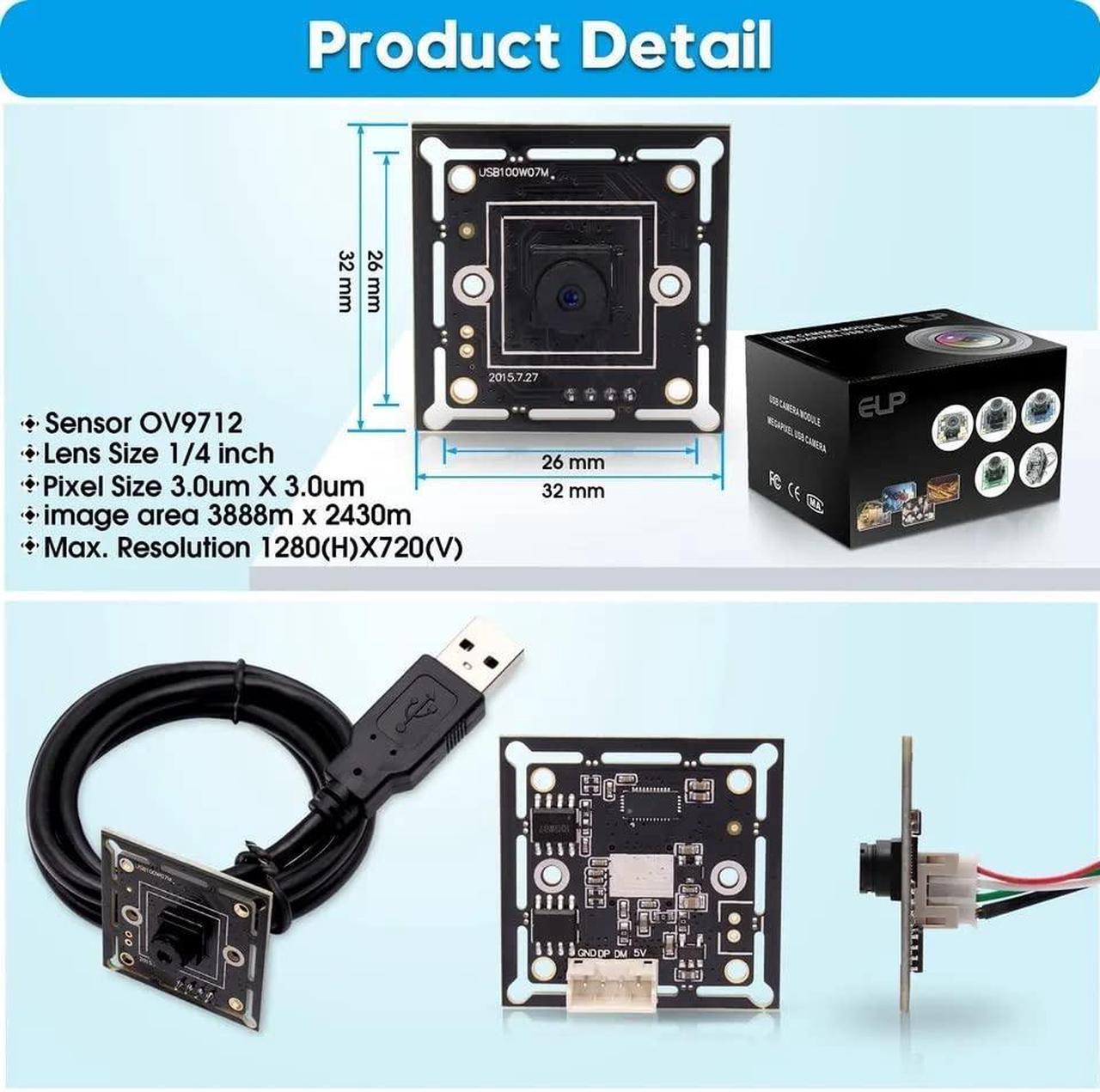

Board size /Weight 32X32mm (Compatible 26X26mm) / about 30g
Cable Standard 1M
Operating system request Win7 Win8, Mac os, Linux 2.6 or above, Android 4.0 or above
Specification:
Sensor OV9712
Lens Size 1/4 inch
Pixel Size 3.0 um X 3.0 um
image area 3888m x 2430m
Max. Resolution 1280 (H) X720 (V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & frame MJPEG: 320X240@ 30fps, 352X288@ 30fps
640X360@60fps, 640X480@ 30fps
800X600@ 30fps, 1280X720@ 30fps
YUV: 320X240@ 30fps, 352X288@ 30fps
640X360@30fps, 640X480@ 30fps
800X600@ 15fps, 1280X720@ 5fps
S/N Ratio 40dB
Dynamic Range 69dB
Sensitivity 3.7V /lux-sec@550nm
Mini illumination 0. 1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB 2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
Support OTG Protocol USB 2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard M7 LENS FOV (D) 138 (H) 100 Degree
LED board power connector Support 2P- 2.0 mm socket
Power supply USB BUS POWER 4P- 2.0 mm socket
Power supply DC5V
Operating Voltage 120mA~180mA
Working current -10~70
Working temperature -20~85
Board size /Weight 32X32mm (Compatible 26X26mm) / about 30g
Cable Standard 1M
Operating system request Win7 Win8, Mac os, Linux 2.6 or above, Android 4.0 or above
