Arducam 8MP 1080P Auto Focus USB Camera Module with Microphone, 1/3.2" CMOS IMX179 UVC USB2.0 Webcam Lightburn Camera for Windows, Linux, Android and Mac OS

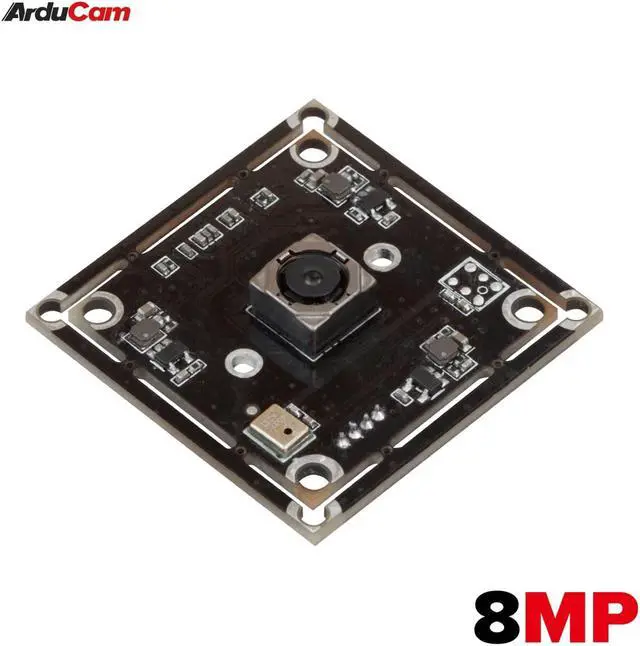

- More than HD: This camera adopts 8MP IMX179 sensor for sharp image and accurate color reproduction. Please search ASIN: B07ZRGGDWG for the IMX179 autofocus camera with metal case.

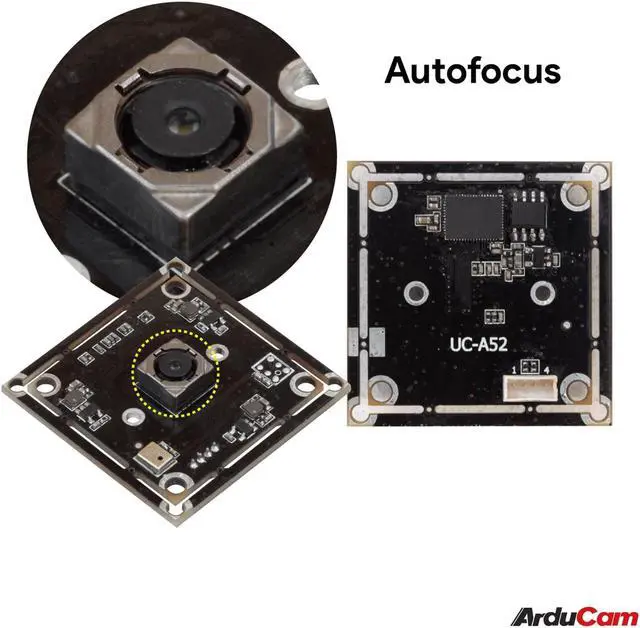

- Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
- Capture Video with Audio: high frame rates, MJPG 30fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480; Support audio fuction, built in single microphone.
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: this tiny 38mmx38mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

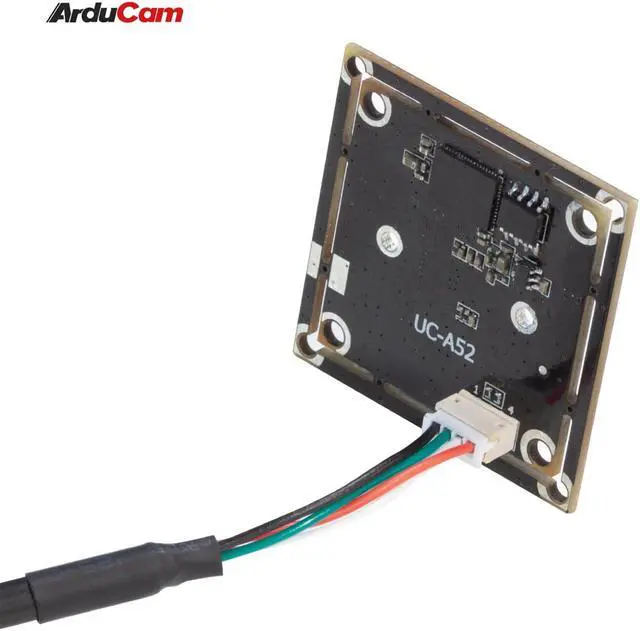

The B0197 is a new member of the Arducam's USB camera family. It's an 8MP, UVC compliant, autofocus (AF) based on the 1/ 3.2" Sony IMX179 image sensor, USB 2.0 camera.
Specifications- Sensor: 1/ 3.2"
IMX179AF- Resolution: 8MP 3264H x 2448V -
Data Format: MJPG/YUY2-
Frame Rate: MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480Lens- Field of

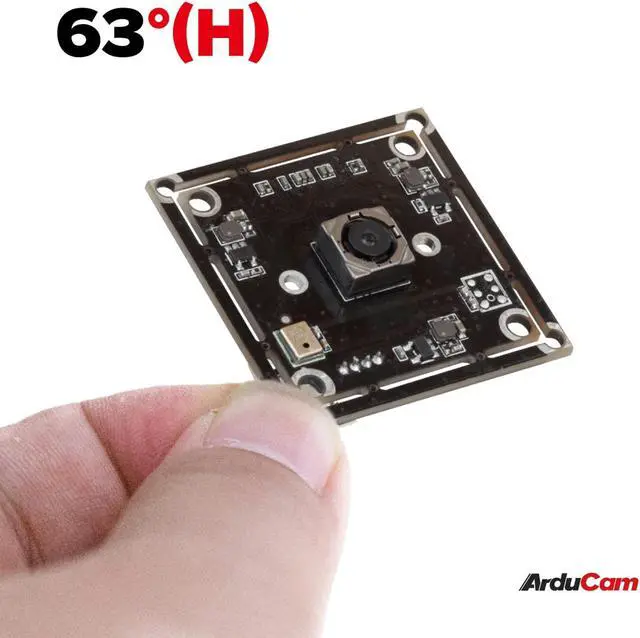

View (FOV): D= 74.6 deg, H= 64.5 deg, V= 46.
6deg- Lens Mount: M 6.5 -
Focusing Range: 40mm to infinity-
IR Sensitivity: Integral IR filter, visible light onlyFunctionality and
Compatibility- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone (optional dual channel) -
System Compatibility: Win7/8/10, Linux, Mac and Android with UVC
Power-
Power Supply: USB powered 5V-
Working Current: MAX 350mAPhysical- Operating Temp.: -4degF~167degF (-20degC~+75degC).
- Dimension: 36mmx36mm (Mount compatible with 28x28mm) -

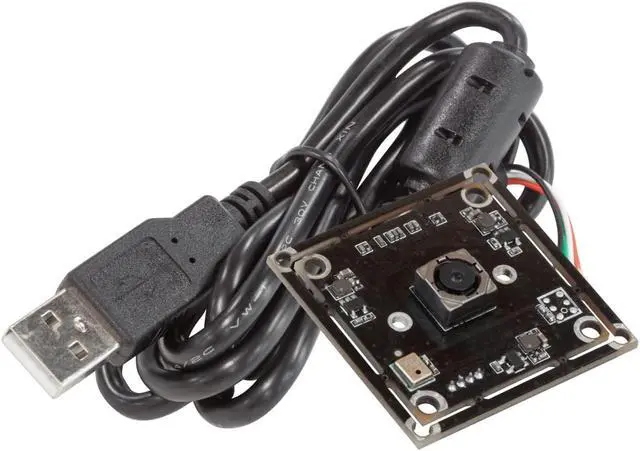

Cable Length: 3.3 ft (1M)
Specifications- Sensor: 1/ 3.2"
IMX179AF- Resolution: 8MP 3264H x 2448V -
Data Format: MJPG/YUY2-
Frame Rate: MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480Lens- Field of
View (FOV): D= 74.6 deg, H= 64.5 deg, V= 46.
6deg- Lens Mount: M 6.5 -
Focusing Range: 40mm to infinity-
IR Sensitivity: Integral IR filter, visible light onlyFunctionality and
Compatibility- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone (optional dual channel) -
System Compatibility: Win7/8/10, Linux, Mac and Android with UVC
Power-
Power Supply: USB powered 5V-
Working Current: MAX 350mAPhysical- Operating Temp.: -4degF~167degF (-20degC~+75degC).
- Dimension: 36mmx36mm (Mount compatible with 28x28mm) -
Cable Length: 3.3 ft (1M)
