(A Pair of Bidi) Single Mode Dual SC Fiber Gigabit Fast Ethernet Media Converter, Mini 1x 10/100/1000Base-T RJ45 to 1000Base-SC Slot Converter Transceiver, up to 30km 1310-nm, AC 100V~240V
- Product List: 2x Single-mode Gigabit Dual SC Ethernet Media Converter, 2x DC Power Adapter, 1x Product Manual. Dual SC type single-mode fiber port connects over distances of up to 30km (18.6miles)
- Fiber Optical Port: 1.25Gbps, Fiber Type SMF 1310nm wavelength, 2x RJ45 Port: CAT5E/CAT6 10M/100M/1000M, Cable Type: UTP/STP Cat.5e for 100 meters. Supports jumbo frame size 9K byte,Power Supply: 5V-1A, UL Certified, Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- Equiped with high-quality chip to ensure stability and Ultra-low time-delay data transmission. Complies with IEEE 802.3/802.3u/802.3z/802.3ab, 10/100/1000Base-TX/FX, Supports wide temperature range from 0degC to 60degC.
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode; Wall mountable: Its compact modular design facilitates deployment in a narrow desktop location to save space.
- Modulization configuration design, support hot-swappable, plug and play. And LED
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Include

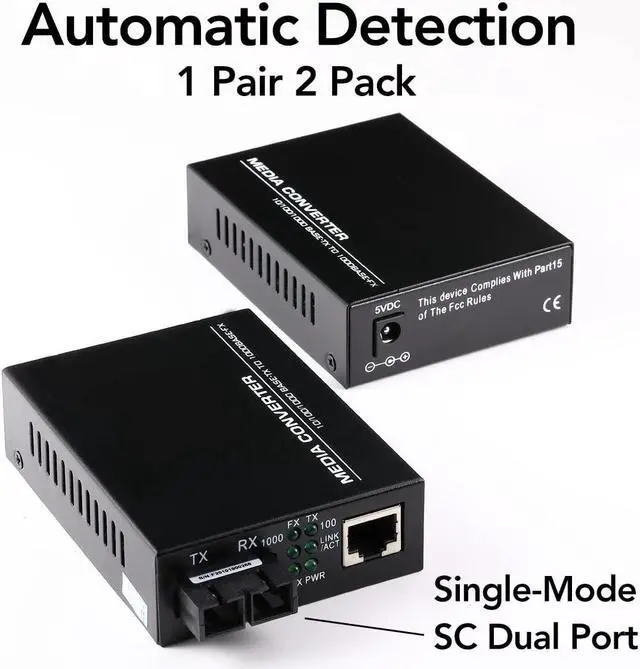

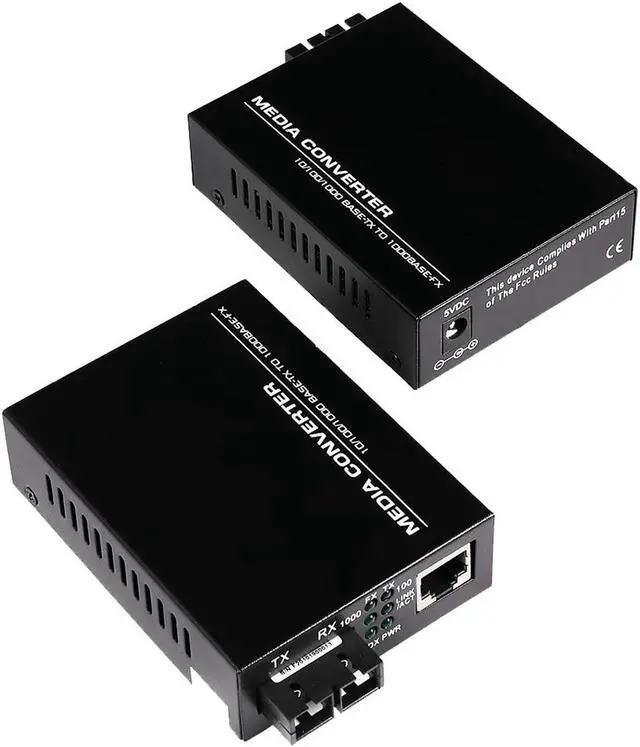

2x Dual SC Gigabit Ethernet Fiber Media Converter
2x DC Power Adapter
1x Product Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual SC Fiber Gigabit Media Converter.
2.
Interface: Dual SC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation.
3.
Fiber Type: Single-mode, Fiber
Connector: Dual SC Fiber, Wavelength: 1310nm, Reach: 20km, Included
Power Supply Weight: 0.35 kg.
Excellent Function
1.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.

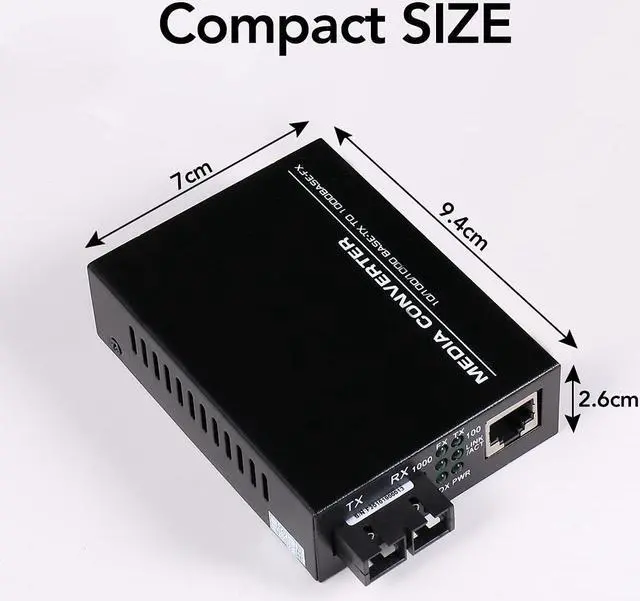

Dimensions: 95 x 72 x 27mm (D xWxH).
4.
Power Adapter Safety standards: UL/EN60950 GB4943.
Output voltage: 5V DC/1A, Power Dissipation <=3 watts, External Power:AC 100V~240V.
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0degC to 60degC.
Storage temperature: -20degC to 70degC.
Humidity: 5% to 90% RH.
Wide Applications
1. Extend or bridge networks using fiber cable.
2. Provide connectivity to users in an isolated area of a large complex or in a separate building.
3. Ideal for secure connections required by government or corporations where EMI is not acceptable.

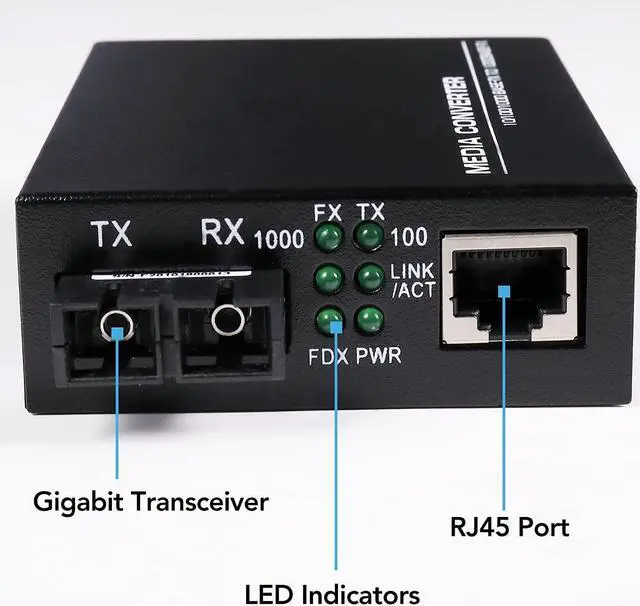

LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off.
2.
TP: Light on when TP speed is 1000Mbps, else light off.
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5.
PWR: Light on when DC power on, else light off.
2x Dual SC Gigabit Ethernet Fiber Media Converter
2x DC Power Adapter
1x Product Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual SC Fiber Gigabit Media Converter.
2.
Interface: Dual SC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation.
3.
Fiber Type: Single-mode, Fiber
Connector: Dual SC Fiber, Wavelength: 1310nm, Reach: 20km, Included
Power Supply Weight: 0.35 kg.
Excellent Function
1.
Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95 x 72 x 27mm (D xWxH).
4.
Power Adapter Safety standards: UL/EN60950 GB4943.
Output voltage: 5V DC/1A, Power Dissipation <=3 watts, External Power:AC 100V~240V.
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0degC to 60degC.
Storage temperature: -20degC to 70degC.
Humidity: 5% to 90% RH.
Wide Applications
1. Extend or bridge networks using fiber cable.
2. Provide connectivity to users in an isolated area of a large complex or in a separate building.
3. Ideal for secure connections required by government or corporations where EMI is not acceptable.
LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off.
2.
TP: Light on when TP speed is 1000Mbps, else light off.
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5.
PWR: Light on when DC power on, else light off.
