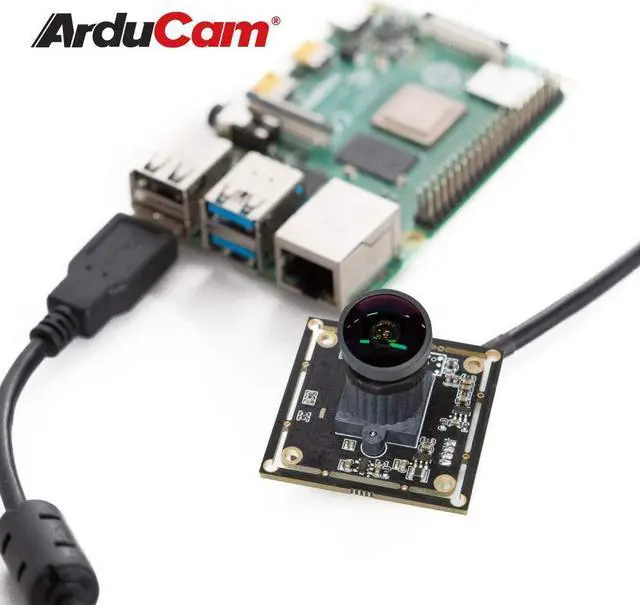

Arducam 1080P Low Light WDR Ultra Wide Angle USB Camera Module for Computer, 2MP CMOS IMX291 160 Degree Fisheye Mini UVC USB2.0 Webcam Board with Microphone, 3.3ft Cable for Windows Linux Mac OS
- HD Resolution and Low Light: This camera adopts the 2MP 1/2.8" IMX291 Color COMS sensor with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux.
- Ultra Wide Angle: High quality 160 degree super wide view angle (diagonal) M12 lens with IR filter.
- Capture Video with Audio: High frame rates, H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x 480; Audio, single microphone.
- Plug&Play: UVC-compliant, support Windows XP/7/8/10, Linux, Android, and Mac OS, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: this tiny camera board can be installed in the most hidden and narrow position for a home video surveillance system, day&night low light vision security camera system, dashcam or other machine vision application.
+
+
Overview
Specs
Reviews
The B0202 is a new member of the Arducam's USB camera family. It's a 2MP, UVC compliant, wide angle, low light, based on the 1/ 2.8" Sony IMX291 image sensor high speed USB 2.0 camera.
SPECIFICATIONS Camera - Sensor: 1/ 2.8" IMX291 -
Resolution: 2MP 1945H x 1109V -
Data Format: MJPG/YUY2/H.
264 - Frame Rate: H. 264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB-
Minimum Illumination: 0.001L ux Lens - Field of
View (FOV): D= 160deg -
Lens Mount: M12 -
Focusing Range: 6.56 ft (2M) to infinity -
IR Sensitivity: Integral IR filter, visible light only Functionality and Compatibility -
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones -
System Compatibility: Windows, Linux, and Mac with
UVC (Android compatibility: contact us for support. )
Power - Power Supply: USB powered 5V -
Working Current: MAX 300mA Physical - Operating Temp.: -4degF~167degF (-20degC~+75degC).
- Dimension: 36mmx36mm (Mount compatible with 28x28mm) -
Cable Length: 3.3 ft (1M)
SPECIFICATIONS Camera - Sensor: 1/ 2.8" IMX291 -
Resolution: 2MP 1945H x 1109V -
Data Format: MJPG/YUY2/H.
264 - Frame Rate: H. 264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB-
Minimum Illumination: 0.001L ux Lens - Field of
View (FOV): D= 160deg -
Lens Mount: M12 -
Focusing Range: 6.56 ft (2M) to infinity -
IR Sensitivity: Integral IR filter, visible light only Functionality and Compatibility -
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones -
System Compatibility: Windows, Linux, and Mac with
UVC (Android compatibility: contact us for support. )
Power - Power Supply: USB powered 5V -
Working Current: MAX 300mA Physical - Operating Temp.: -4degF~167degF (-20degC~+75degC).
- Dimension: 36mmx36mm (Mount compatible with 28x28mm) -
Cable Length: 3.3 ft (1M)
