SignalPlus Long Range Outdoor Directional WiFi Antenna Dual Band 2.4GHz/ 5.8GHz for WiFi Router/WiFi Access Point/AP
- The Outdoor WiFi Antenna is with 2.4Ghz/ 5.8GHz/ High Gain 15dBi/ N-Female connector.
- Function: Accepts signals from a remote location, or bridges WiFi networks between two distant signals sources.
- Long Range WiFi Antenna Work for WiFi device which with Detachable Antennas, as Wifi Router, Wifi Security Camera, Wireless Access Points(AP);
- [Package Listing] Directional WiFi Antenna kit: 1pcs WiFi antenna, 1 set hardware, 1pcs 3meter RG58 cable(RP-SMA connector), 1pcs SMA male adapter.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

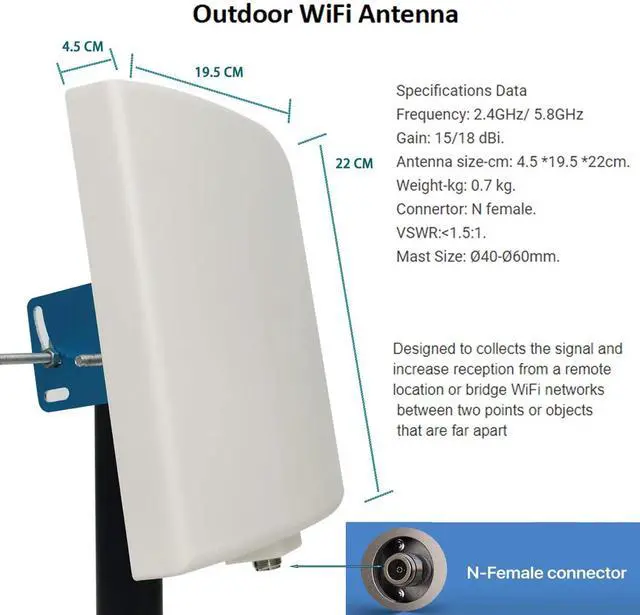

Specifications
DataFrequency: dual band 2.4GH z/ 5.8GH z ( 2400-2483 MHz/5150-5850 MHz).
Gain: 15/18 dBi.
Antenna size-cm: 4.5 cm * 19.5 cm *22cm.
Weight-kg: 0.7 kg.
Connertor: N female.
VSWR: <1.5:1.
Polarization: Vertical.
Vertical Beamwidth: 7°.
Nominal Impedance: 50 Ohms.
Max Input Power: 100 W.

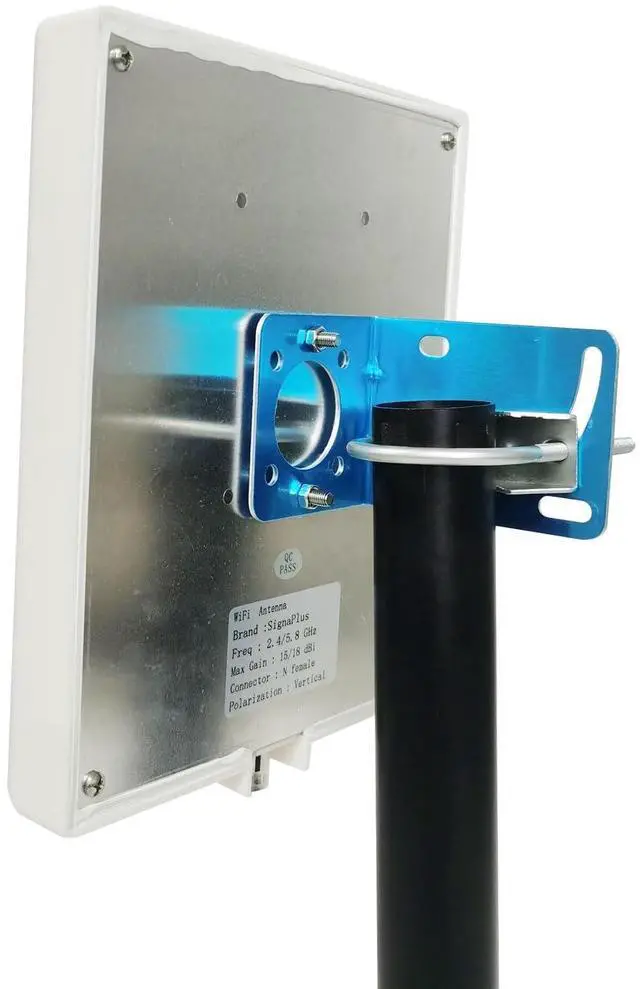

Mounting Method: Mast pole.
Mast Size: Ø40-Ø60mm.
Lightning Protection: DC Ground.
Radome Material: Fiberglass.
Operating temperature: -40 ~ +65 C.

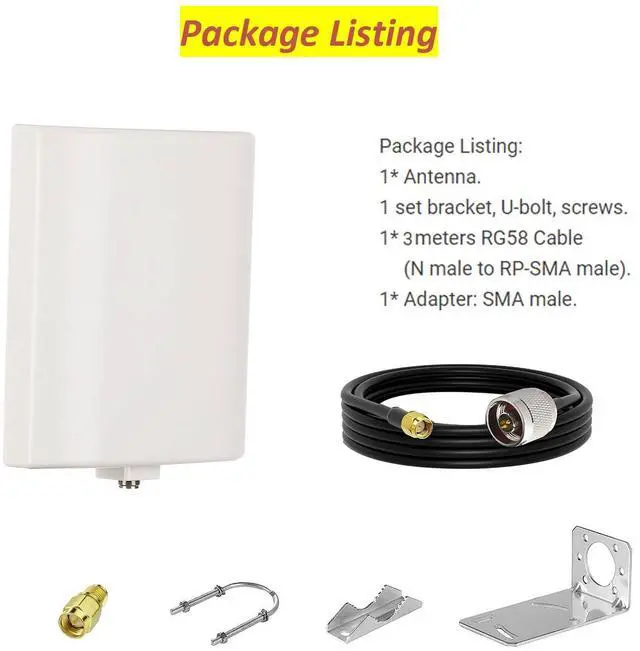

Package Listing:
1* Antenna.
1 set Mounting bracket, U-bolt, Washers and screws.
1* Cable Length: 5meters RG58 with N male to RP-SMA male.
1* Adapter: SMA male
