Wiegand Converter Wiegand to USB Wiegand to Serial RS232/PS2/ABA/TTL, Serial to Wiegand Converter, Up to 128 Bits Wiegand Data, Android/Linux/Widows/iOS(Host with Serial)

1. Product Profile
A professioanl Wiegand Converter for adapter Wiegand device to Serial/TTL/ABA T2 to host machine or get data from serial & output it via Wiegand.
Configurable in 5 Functions: Wiegand to Serial/TTL/ABA/PS2 converter, Wiegand simulator that get data from serial and send it via wiegand.

This version is suitable for host machine with serial port.


2.
Feature:
-Accept and Auto identify wiegand input from 1-128 bits fromat
-Output via serial RS232 /TTL/ USB/ABA track2 for Linux/Android/Windows/iOS

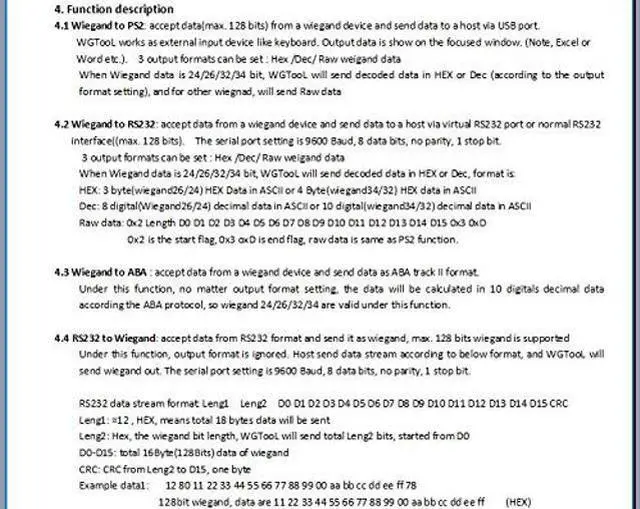

-5 Functions: Wiegand to serial/TTL/PS2/ABA, RS232 to Wiegand adapter
-3 Output type HEX, DEC, Raw Wiegand
-Buzzer sounds for result indicationt
-Support QWERTY AZERTY keyboard layout
-configuable: Function, O/P type, K. B layout & buzzer on/off
-Default settingWiegand to PS2; Decimal O/P, QWERTY, Buzzer on


3.
Specification:
-Power suppler: 5V from USB port, or external power 7-15V
-Cousume: Standby 10mA; (max 100mA with buzzer beeps)
-Wiegand Operation range: 60 meters
-Operation temperature: -20°C --- +70°C
-Operation humidity: 5%-95% (no condensing).

Package list:
- WGTooL converter: 1 PCs
- Instruction menu: 1 PCs


4. Quick Test or How to
Use:

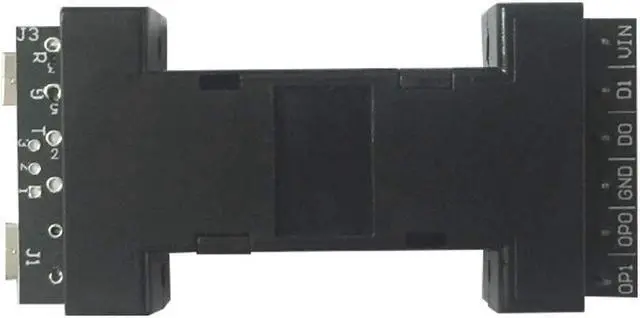

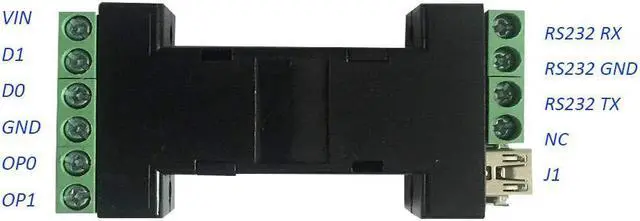

-Connect standard wiegand reader O/P to D1, D0, GND and Power on reader.
-Connect USB MiniB cable on wiegand converter J1 and PC.
-Open Excel or Note.
-Read card on wiegand reader, Buzzer will sound and card number will be show on window.

5.
Output Type Example:
A Wiegand Reader send 26 bit wiegand as 1 0001 0001 0010 0010 0011 0011 0
Ouputt HEX: 112233 (ASCII)
Output DEC: 0001122867 (ASCII)
Output Raw Wiegand: 02 1A 00 00 00 00 00 00 00 00 00 00 00 00 02 22 44 66 03 0D (HEX)
