ANMBEST 5PCS RJ45 Panel Mount Connector, Cat6 8P8C Ethernet LAN Pass Through Cable Coupler Female to Female Extension Adapter with Waterproof/Dust Cap
- Usage: The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
- Durability: Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
- Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 1000Mbps.

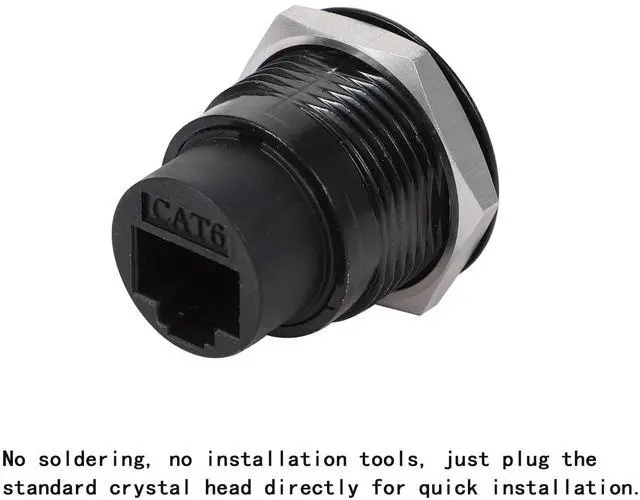

- EASY INSTALLATION: No soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. It is designed to support data transfer rates up to 10 Gbps over twisted pair copper cabling, and is backward compatible with lower rated speeds such as 1000BASE-T and 100BASE-TX.
Number of cores: 8 PIN

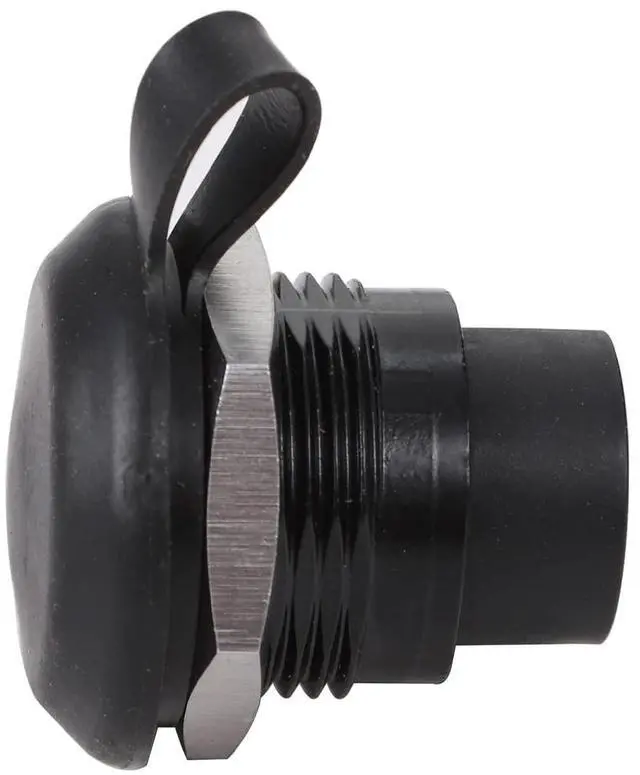

Waterproof rating: IP65with Waterproof/Dust Cap
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded
type: >2mm, through-hole type: 0.3 ~7mm

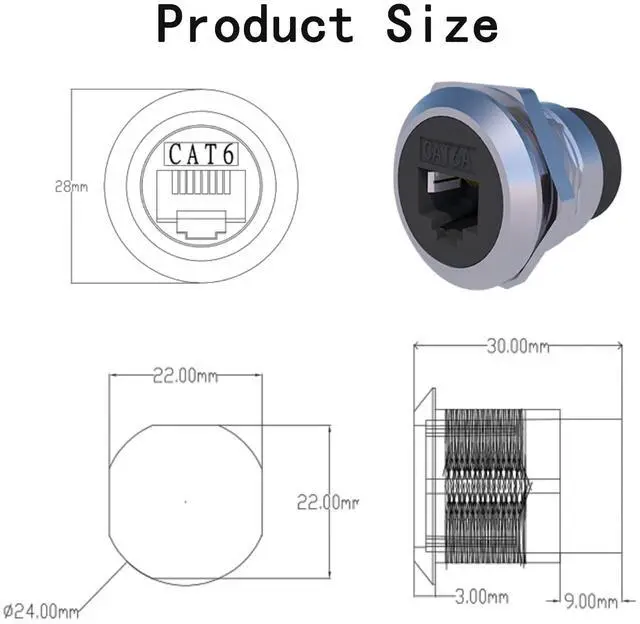

Mounting Hole Size: 24mm
Thread size: 24* 1.5
Connector transmission classification: CAT6
Transmission speed range: 10 Mbps, 100 Mbps, 1000 Mbps network
Bandwidth: 250MHz
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: Zinc die casting, nickel plated
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x Waterproof RJ45 Connector
5x Waterproof/Dust Cap Cover
Specifications
:Number of cores: 8 PIN
Waterproof rating: IP65with Waterproof/Dust Cap
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded
type: >2mm, through-hole type: 0.3 ~7mm
Mounting Hole Size: 24mm
Thread size: 24* 1.5
Connector transmission classification: CAT6
Transmission speed range: 10 Mbps, 100 Mbps, 1000 Mbps network
Bandwidth: 250MHz
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: Zinc die casting, nickel plated
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x Waterproof RJ45 Connector
5x Waterproof/Dust Cap Cover
