GLOTRENDS PA54 Quad M.2 NVMe to PCIe 5.0 X16 Adapter, Up to 512 Gbps for AMD and Intel Platform RAID Function, Support 2280/2230 Size (PCIe Bifurcation Motherboard is Required)

Be the first to review this product...

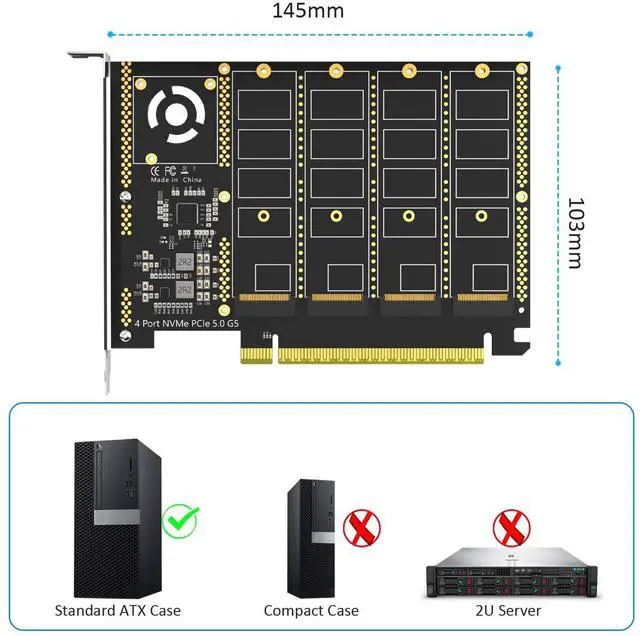

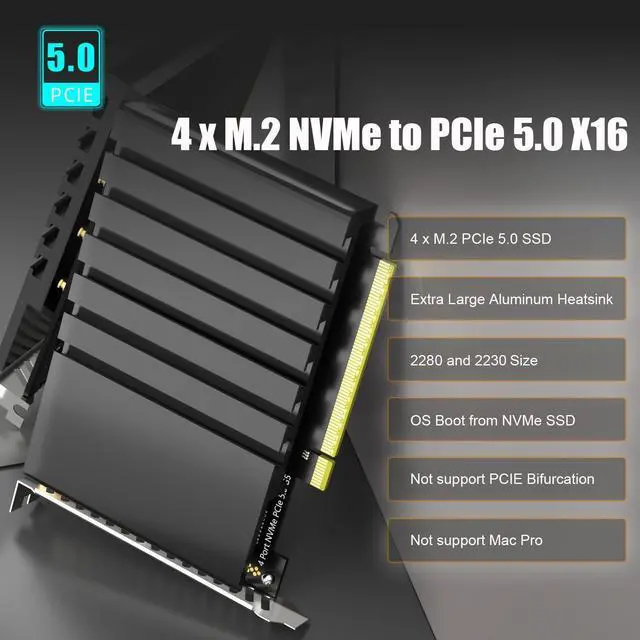

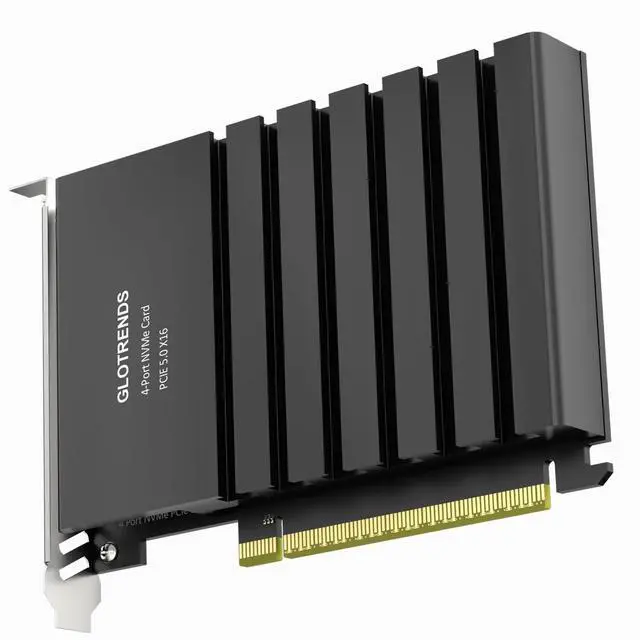

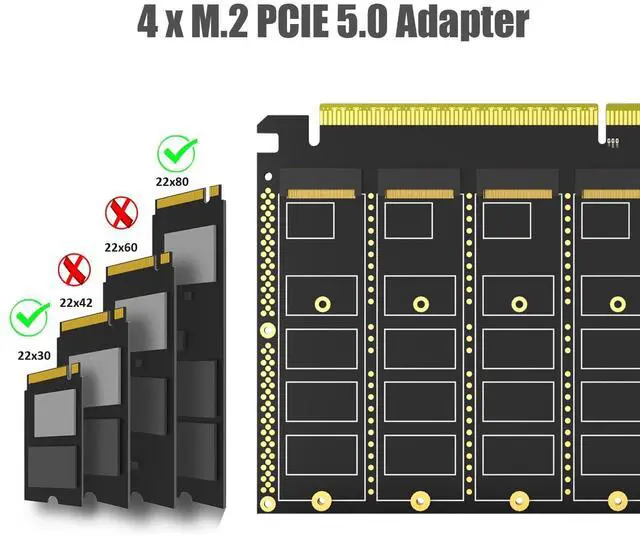

4-slot M.2 NVMe to PCIe 5.0 X16 adapter card - expands 4x M.2 NVMe Key M slot via a PCIe 5.0 x16 interface, delivering up to 512Gb/s bandwidth. Support 2230/2280 form factor M.2 NVMe SSDs.
Supports software RAID configuration (no hardware RAID). Easily set up via Windows/Linux/macOS. Note: Intels RAID-on-CPU (VROC) requires a separate license purchase.
Set the PCIe Bifurcation mode of the corresponding PCIe slot in the BIOS, support X4X4X4X4 or Hyper M.2 X16 mode (Note: X8X4X4 or X4X4X8 mode can only recognize 3 x NVMe SSDs.)
Important: This adapter does not support PCIe bifurcation, so a motherboard with this feature is required. Without it, only the NVMe-1 port will recognize the NVMe SSD. Before purchase, check your motherboard manual's PCIe expansion slot section or contact us directly.

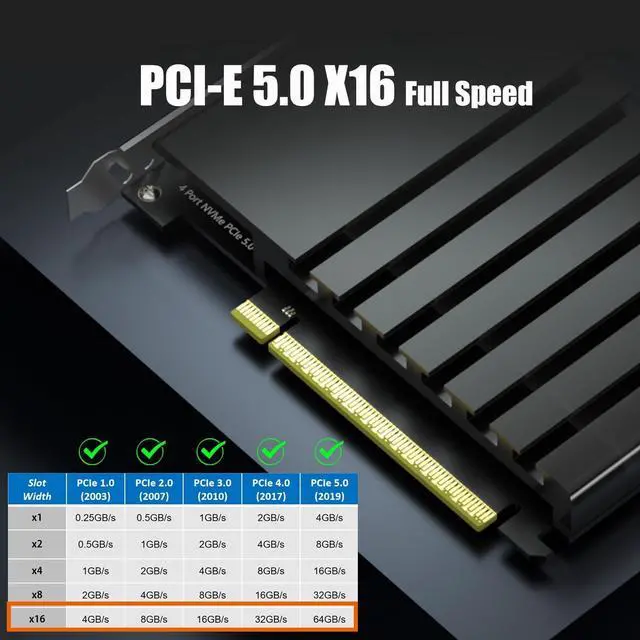

Full PCIe 5.0 x16 performance (512Gbps) requires all components to support PCIe 5.0: CPU, motherboards PCIe slot, and M.2 NVMe SSD. Note: Intel 12th Gen and older CPUs do not
