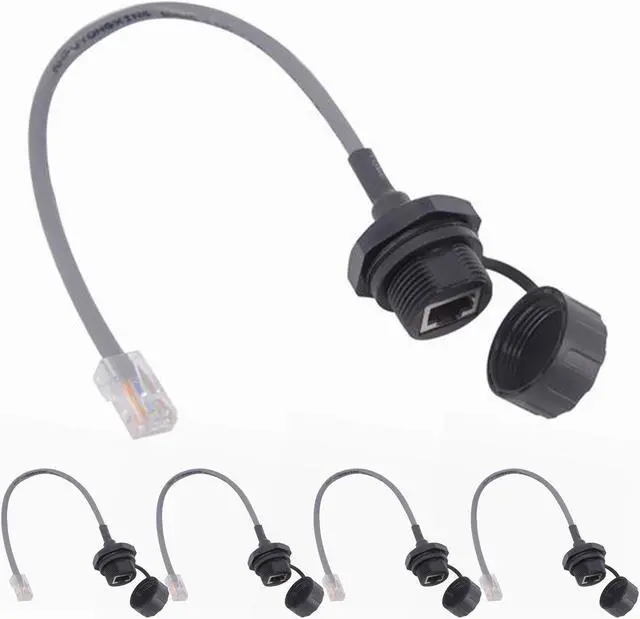

ANMBEST 5PCS Panel Mounting RJ45 Waterproof Connector M25 Cat5/5e Ethernet LAN Cable Coupler with Waterproof/Dust Cap Cover 25cm Network Cable for Outdoor Network

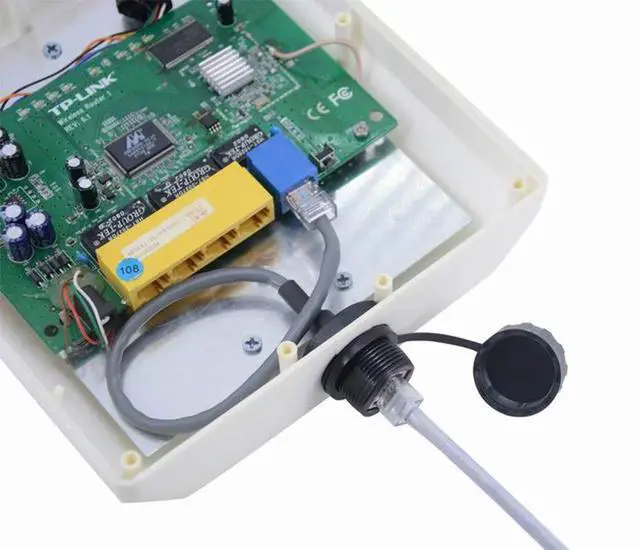

- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, the network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
- SUITABLE for Harsh Industrial or Outdoor Environments: The Waterproof RJ45 Connector are IP 67 Compliant, 25mm thread mounting hole. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 male to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.

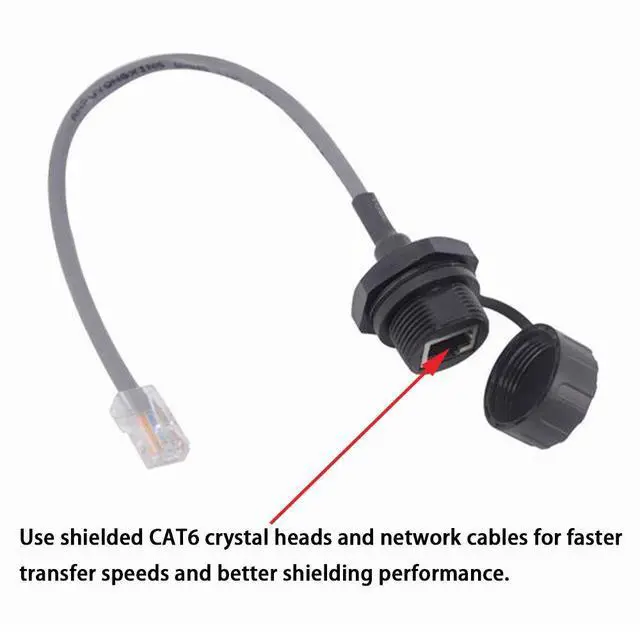

- Faster speed & Better shield: Use shielded CAT6 crystal heads and network cables for faster transfer speeds and better shielding performance.
- Quality Assurance: Professional waterproof connector manufacturer, with IP67 certification, CE certification, RoHS certification. The
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

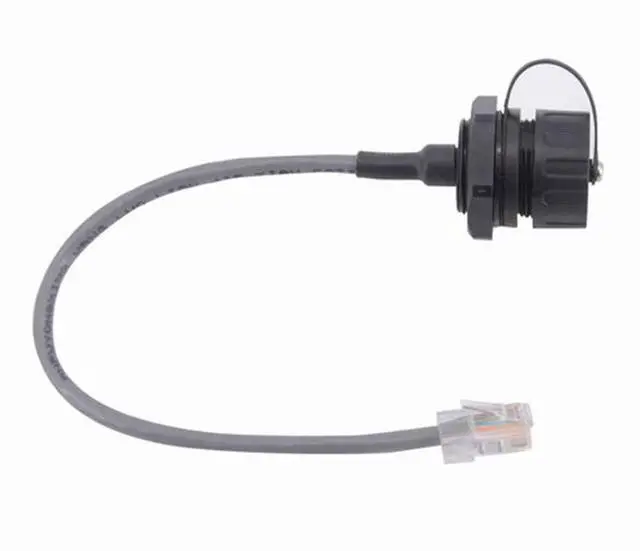

The industrial panel mount RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Network cable length: 250mm/ 9.84 inch
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock

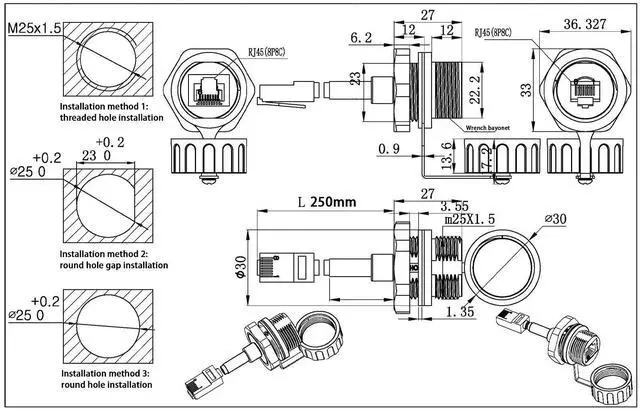

Mounting hole size: M25* 1.5
Case wall thickness: 0.3 ~4mm
Connector transmission classification: CAT5E
Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC 500V 50HZ or 60HZ for 1 minute
Contact resistance: 10m
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x Waterproof RJ45 Connector
Specifications
:Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Network cable length: 250mm/ 9.84 inch
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Mounting hole size: M25* 1.5
Case wall thickness: 0.3 ~4mm
Connector transmission classification: CAT5E
Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC 500V 50HZ or 60HZ for 1 minute
Contact resistance: 10m
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5 mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
5x Waterproof RJ45 Connector
