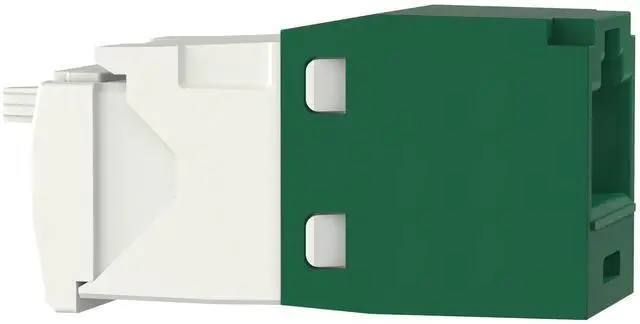

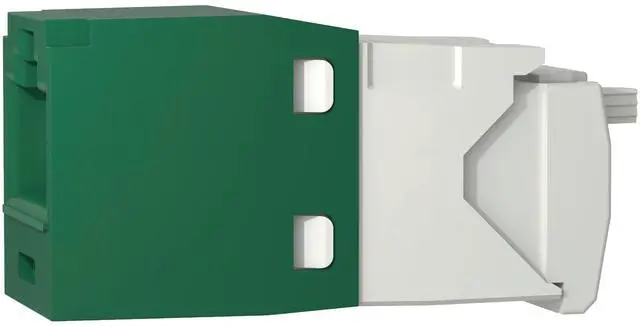

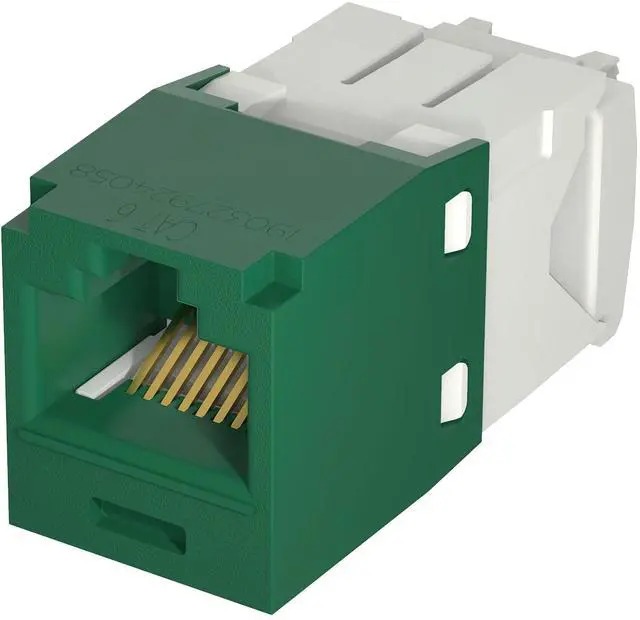

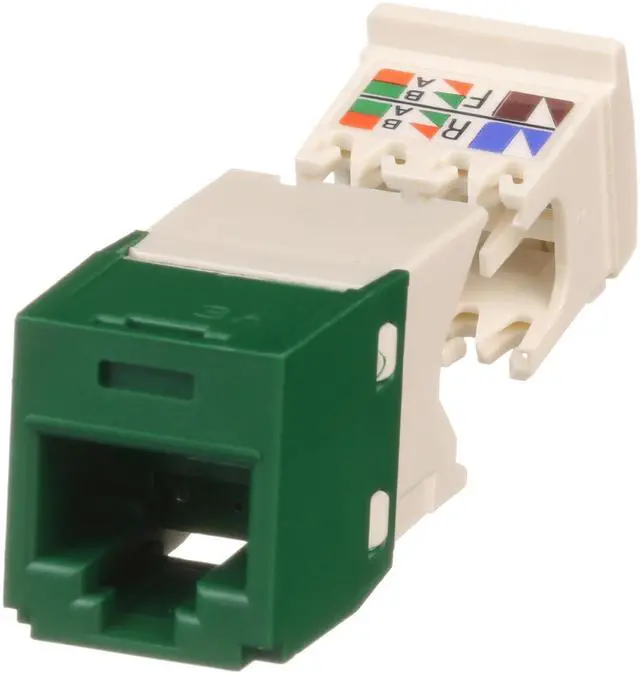

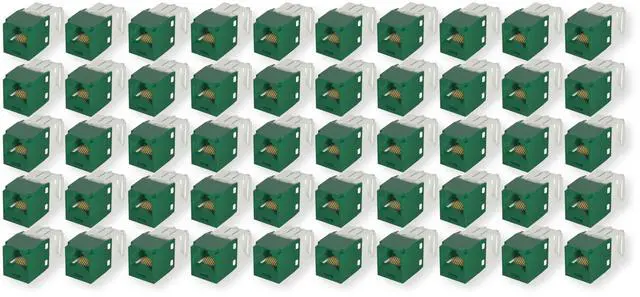

CJ688TGGR Pack of 50 Category 6 TX6 Plus Mini-Com UTP Jack Modules, Green, TG Style, Toolless, RJ45 Ethernet High Performance Network Module, T568A/T568B Wiring
- Category 6 rated: delivers high-speed data performance for demanding Ethernet networks
- Toolless termination: TG-style termination enables quick installation without specialized tools
- Universal wiring: supports both T568A and T568B wiring schemes for flexible network integration
- Durable construction: robust polycarbonate housing and gold-plated contacts ensure a long lifespan
- Color coded: green module distinguishes category 6 plus performance for easy identification
- Optimized pair geometry: maintains cable geometry to reduce signal loss and maximize data integrity
- PoE ready: supports IEEE 802.3af and 802.3at Power Over Ethernet applications
- Versatile fit: compatible with mini-com patch panels, faceplates, and surface mount boxes
- Backwards compatible: interoperable with existing Cat5e and legacy systems for future-proofing connections
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CJ688TGGR Pack of 50 Category 6 TX6 PLUS Mini-Com UTP Jack Modules, Green, TG Style, Toolless, RJ45 Ethernet High Performance Network Module, T568A/T568B Wiring
The CJ688TGGR Mini-Com TX6 PLUS UTP Jack Module delivers category 6 network performance in a toolless, easy-to-install form factor. With universal T568A/T568B compatibility, durable gold-plated contacts, and robust polycarbonate housing, it sets the standard for reliable, high-speed ethernet. Designed for effortless integration in commercial and enterprise networks.
Key Features: Cat6 performance for GbE applications TG style toolless termination for fast setup Universal T568A and T568B wiring compatibility Gold-plated phosphor bronze contacts for signal clarity 8-position, 8-wire RJ45 modular jack design High heat resistance from -10°C to 65°C RoHS compliant for safety and sustainability Configurable with Mini-Com patch panels and accessories Accepts 22-26 AWG solid or stranded cable Compact module size for versatile installations
Code: Green
Performance Level: Category 6
Connector Type: Jack Module -
Standard Termination Style: TG
Style Body Material: Polycarbonate
Contact Material: Plated phosphor bronze
Shield Type: Unshielded (UTP)
Maximum Operating Temperature (°F): 167
Minimum Operating Temperature (°F): 14
Maximum Storage Temperature (°F): 167
Minimum Storage Temperature (°F): -40
Resistance Properties: Heat resistant
Overall Dimensions (HxWxL): 0.71 x 0.62 x 1.5 inches
The CJ688TGGR Mini-Com TX6 PLUS UTP Jack Module delivers category 6 network performance in a toolless, easy-to-install form factor. With universal T568A/T568B compatibility, durable gold-plated contacts, and robust polycarbonate housing, it sets the standard for reliable, high-speed ethernet. Designed for effortless integration in commercial and enterprise networks.
Key Features: Cat6 performance for GbE applications TG style toolless termination for fast setup Universal T568A and T568B wiring compatibility Gold-plated phosphor bronze contacts for signal clarity 8-position, 8-wire RJ45 modular jack design High heat resistance from -10°C to 65°C RoHS compliant for safety and sustainability Configurable with Mini-Com patch panels and accessories Accepts 22-26 AWG solid or stranded cable Compact module size for versatile installations
Specifications
: ColorCode: Green
Performance Level: Category 6
Connector Type: Jack Module -
Standard Termination Style: TG
Style Body Material: Polycarbonate
Contact Material: Plated phosphor bronze
Shield Type: Unshielded (UTP)
Maximum Operating Temperature (°F): 167
Minimum Operating Temperature (°F): 14
Maximum Storage Temperature (°F): 167
Minimum Storage Temperature (°F): -40
Resistance Properties: Heat resistant
Overall Dimensions (HxWxL): 0.71 x 0.62 x 1.5 inches
