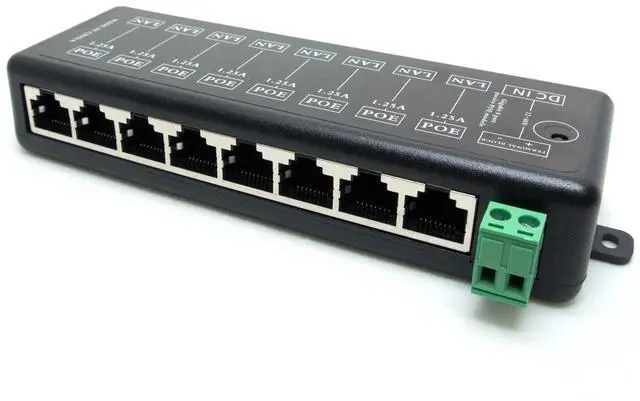

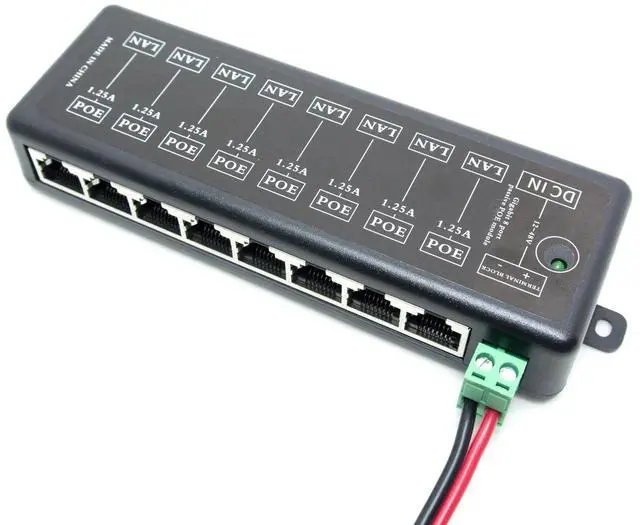

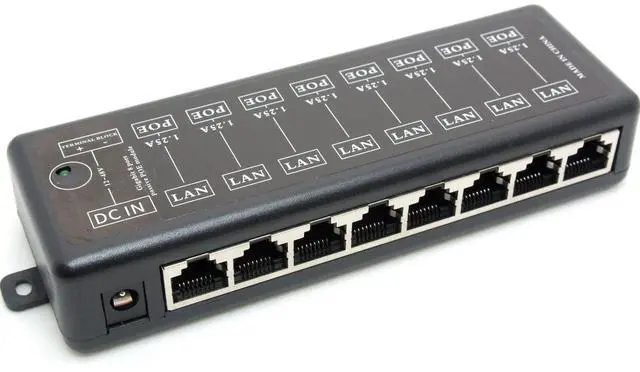

DSLRKIT 8 Ports Gigabit Passive PoE Injector Midspan Ethernet Adapter Without Power Adapter

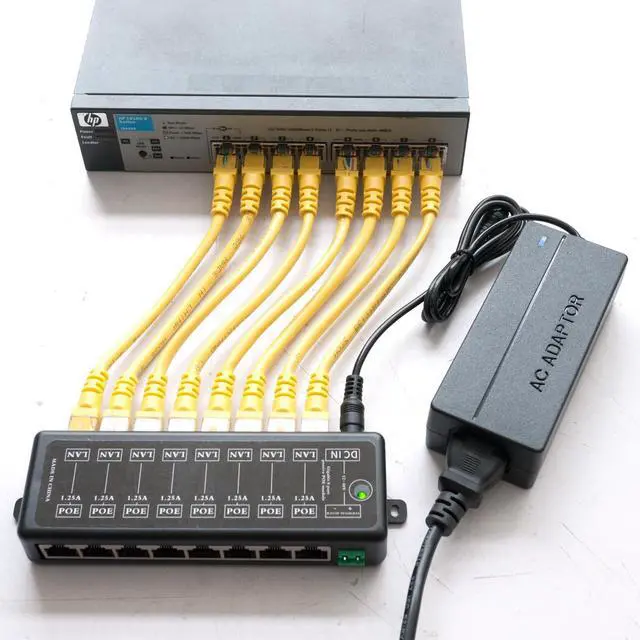

8 PORT POE INJECTOR supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power. This poe splitter can be used with any Ethernet switches. It can still manage and view every network ports as before when worked with managed switches as opposed to a normal unmanaged POE switch.
Features: Compatible with 10/100/1000Mbps fast ethernetUse with any ethernet switchIdeal for PoE IP Cameras, VOIP, AP8 Port Injector(8 Lan&8 Lan+PoE port)Midspan Mode-B Unsolicited Power(4, 5+/7, 8-)Additional terminal block power input portPer port
Maximum current: 1.25AS upports 12~48V DC power supplyPower InputSupports INPUT 12-48V DC power supplyPower DC port 5.5 x 2.1 mm, inside positive (+) outside negative (-)LAN data pin: RJ45 pin1 pin2 pin3 pin4 pin5 pin6 pin7 pin8LAN
Data In: Connects PC/Router/SwitchPoE Power on
RJ45Power +: pin 4 & pin 5;
Power -: pin 7 & pin 8DC
Output: 12-48V, Per PoE port Max 1.25A, Product Dimensions 165mm x 50mm x 28mmTemperatureOperation
Temperature: 0 ~40 (32 ~104H)Storage
Temperature: -40 ~70(-40 ~158H)HumidityStorage Humidity 5%~90% non-condensing, Operating Humidity10%~90% non-condensingItem

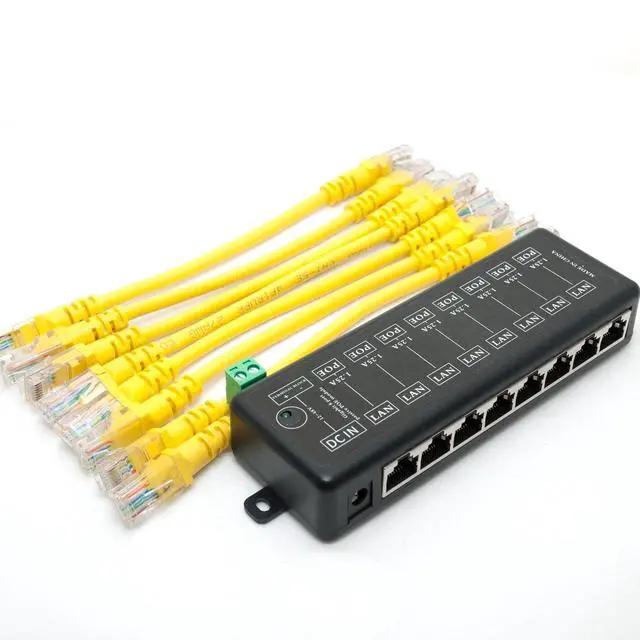

Included: 8 Ports Gigabit Passive PoE injector x12pin power input port terminal block x115cm 568B CAT5E Ethernet RJ45 Patch Cable x8 (Power supply not included) This item do not include the power adapter, you need to buy an extra power adapter according to your requirement. Please use DC48V-55V power supply for 802.3 af / 802.3 at PoE device, DC24V power supply for 24V PoE device.
