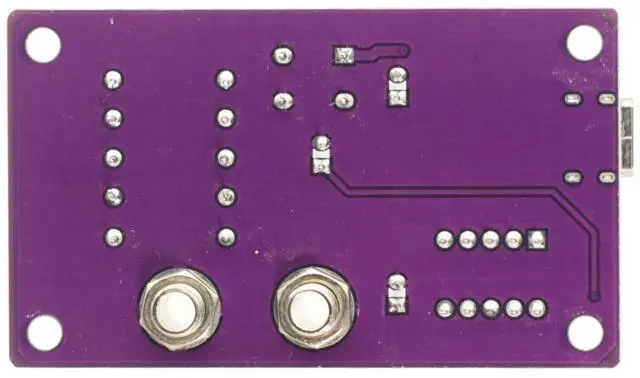

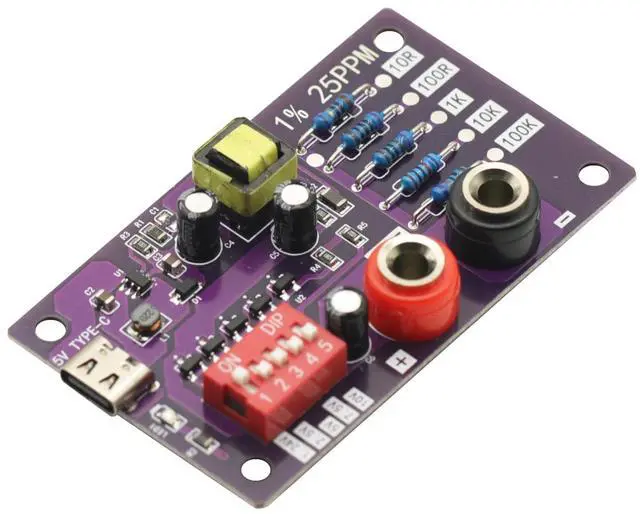

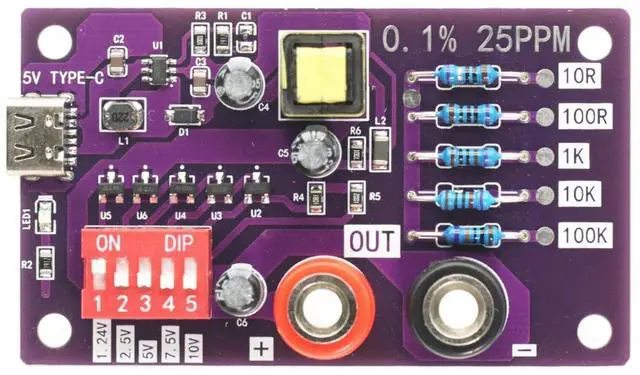

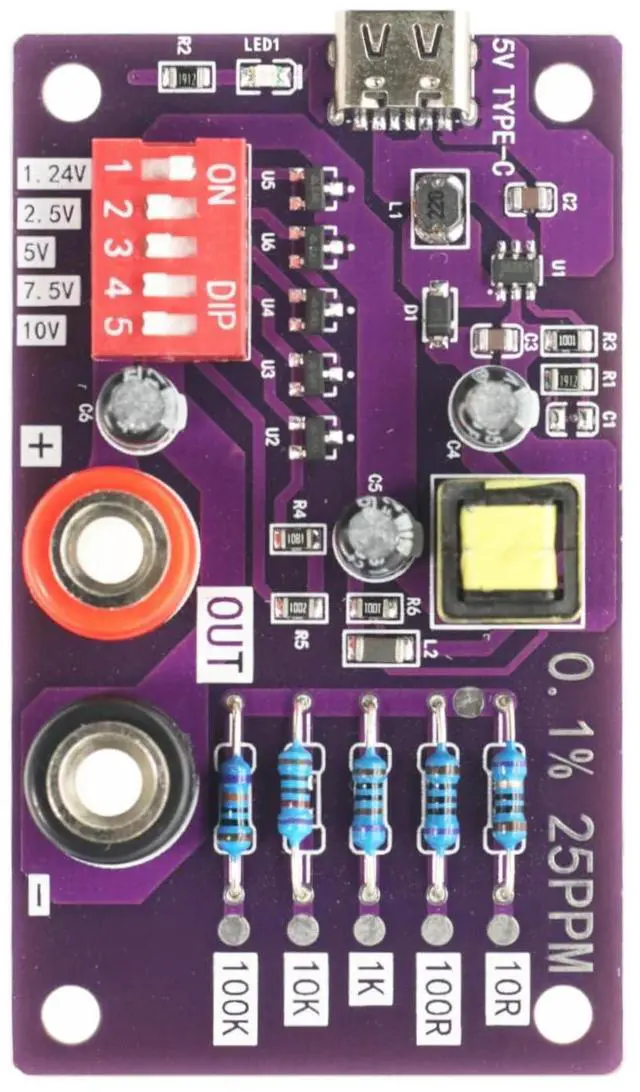

Precision Voltage Reference Module with 5 Channels 1.24V/2.5V/7.5V/5V/10V&5 Levels 10R/100R/1K/10K/100K Resistors of Calibration
- is a specially designed voltage reference module, it uses low-temperature drift components, Type C 5V port as power supply, uses EMI filter to make the power supply purer and smoother, no need battery to supply power.
- voltage reference module
- Used to verify the accuracy and linearity of handheld 3 1/2 digital multimeters.
- Used to verify the accuracy and linearity of handheld 4 1/2 digital multimeters, must keep the same temperature and humidity as the data sheet specified.
- The pull switch can only keep one ON each time, no two ON allowed at the same working time.
- If U like to verify the accuracy and linearity of handheld 4 1/2 digital multimeters, try to keep the same temperature and humidity as the data sheet specified.
- Try to verify in a low air flow environment, try to avoid direct cold wind from the air conditioner as it may cause some additional errors.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
is a specially designed voltage reference module, it uses low-temperature drift components, Type C 5V port as power supply, uses EMI filter to make the power supply purer and smoother, no need battery to supply power.
Product Name: voltage
reference moduleNo-load power consumption: 45mAPower
supply: Type C 5V port, 0.5AP
ower supply indication: Green
LED lightClear box size: 85X55X25mmReference
Voltage: 1.24V / 2.5V / 7.5V /5V/10V 5 levels.
Reference Resistance: 10/100/1K/10K/100K 5 levels.
Resistor's material: 0.1
%Metal film copper feet&TCR: 25PPM
Package net weight: 34gWorking
environment: 16-30
RH70%Product Usage: 1. Used to verify the accuracy and linearity of handheld 3 1/2 digital multimeters. 2. Used to verify the accuracy and linearity of handheld 4 1/2 digital multimeters, must keep the same temperature and humidity as the data sheet specified.
Caution: 1. The pull switch can only keep one ON each time, no two ON allowed at the same working time. 2. If U like to verify the accuracy and linearity of handheld 4 1/2 digital multimeters, try to keep the same temperature and humidity as the data sheet specified. 3. Try to verify in a low air flow environment, try to avoid direct cold wind from the air conditioner as it may cause some additional errors.
Product Name: voltage
reference moduleNo-load power consumption: 45mAPower
supply: Type C 5V port, 0.5AP
ower supply indication: Green
LED lightClear box size: 85X55X25mmReference
Voltage: 1.24V / 2.5V / 7.5V /5V/10V 5 levels.
Reference Resistance: 10/100/1K/10K/100K 5 levels.
Resistor's material: 0.1
%Metal film copper feet&TCR: 25PPM
Package net weight: 34gWorking
environment: 16-30
RH70%Product Usage: 1. Used to verify the accuracy and linearity of handheld 3 1/2 digital multimeters. 2. Used to verify the accuracy and linearity of handheld 4 1/2 digital multimeters, must keep the same temperature and humidity as the data sheet specified.
Caution: 1. The pull switch can only keep one ON each time, no two ON allowed at the same working time. 2. If U like to verify the accuracy and linearity of handheld 4 1/2 digital multimeters, try to keep the same temperature and humidity as the data sheet specified. 3. Try to verify in a low air flow environment, try to avoid direct cold wind from the air conditioner as it may cause some additional errors.
