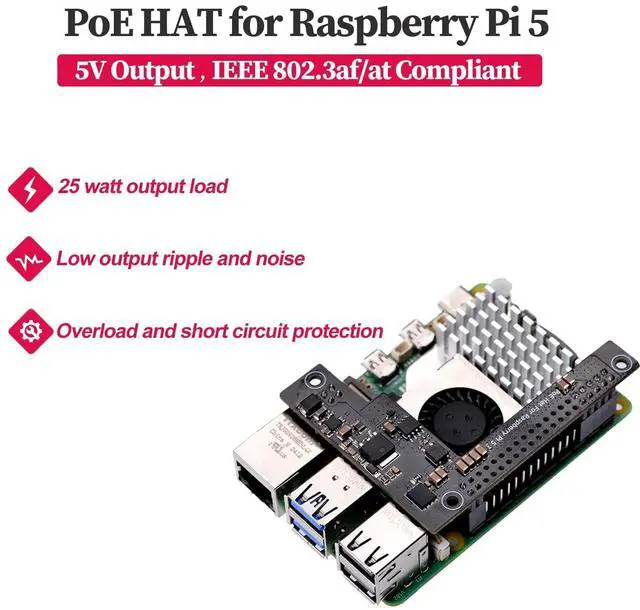

REVODATA PoE HAT 5V Output for Raspberry Pi 5, with Integrated Cooler, IEEE 802.3af/at Compliant Power Over Ethernet Module, Gigabit/Fast Ethernet Support, Overload Protection, Plug and Play
- IEEE802.3af/at CompatibleSafely powers and connects your Raspberry Pi 5 via PoE, ensuring seamless compatibility with PoE switches and reducing cable clutter.
- 5V Power OutputDelivers up to 25W of stable power (70C) to support demanding Raspberry Pi 5 projects, Power Input: DC36-57V.
- Effective Cooling Fan65*43mm 23g cooling fan, Prevents overheating and structural interference with an integrated radiator, ensuring optimal performance and longevity even under heavy loads.
- Isolation ProtectionIsolation circuit protection, Short circuit protection, Over voltage protection, protect equipment from being damaged.
- Robust & Versatile DesignOperates reliably in extreme temperatures (-40C to 85C) and delivers low-noise, RoHS-compliant power for professional and industrial applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

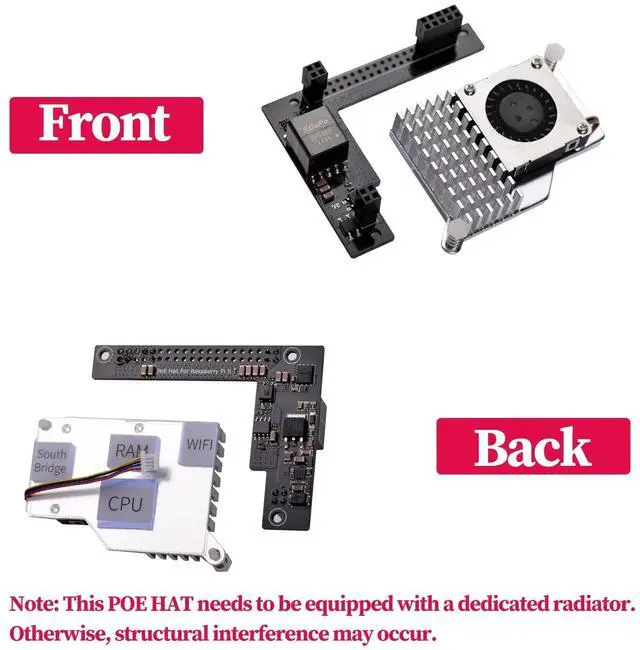

Note: This POE HAT needs to be equipped with a dedicated radiator. Otherwise, structural interference may occur. OverviewThe POE HAT is a POE accessory with IEEE 802.3 af Power Over Ethernet (POE) standard for the Raspberry Pi

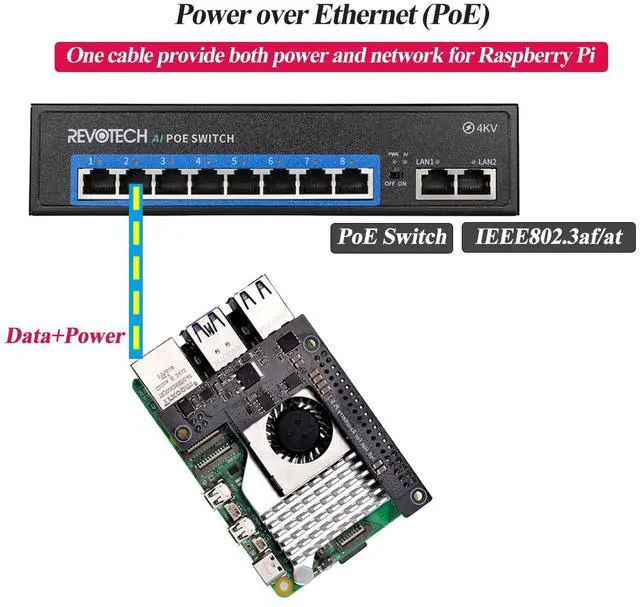

5. The Raspberry Pi can get power and network from this POE HAT, by connect to IEEE 802.3 af/at PoE switch with RJ45 Ethernet cable. Easy installation and low cost (isolation type and minimum external device required). FeaturesFully IEEE 802.3 af/at compliant25 watt output loadIEEE Power class programmable (Green) 1500 Volt DC isolation (Input to Output) 5V output voltage modelsOverload and short circuit protectionWide input voltage (36V to 57V DC) Support PoE applications in both of Fast / Gigabit Ethernet environments. Low output ripple and noiseRoHS
CompliantSpecification: Power
input: DC
36-57VPower output: 5VOutput
Power: 25 Watts (70C); 22.5 Watts (85C)
POE standard: IEEE 802.3 af/atWorking
Environment: -40~85CStorage
Temperature: -40~100CPoE

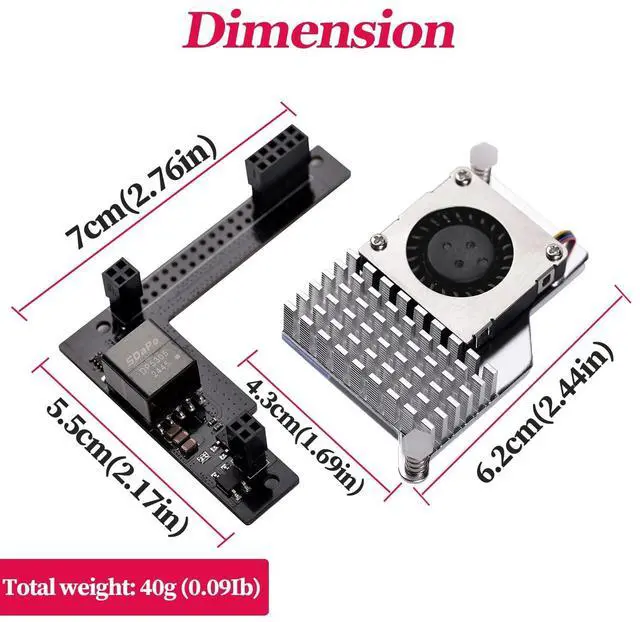

HAT Dimension: 70 x 55 x 16mm( 2.76 x 2.17 x 0.63 in)Weight (Include cooler): 40g ( 0.09I b)Package

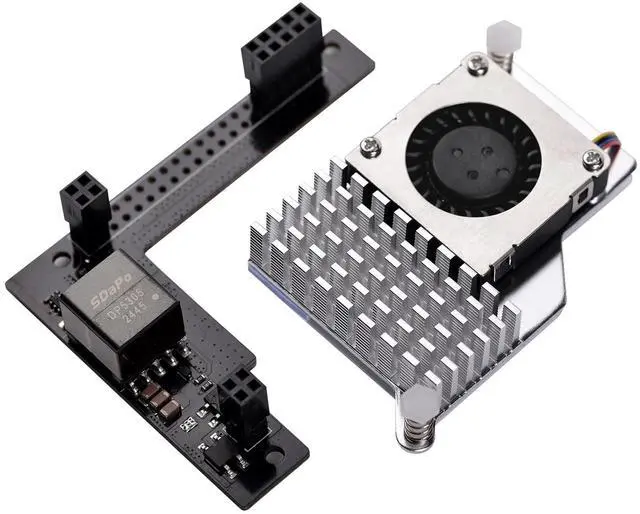

Content: 1 * PoE HAT1 * Cooling Fan
5. The Raspberry Pi can get power and network from this POE HAT, by connect to IEEE 802.3 af/at PoE switch with RJ45 Ethernet cable. Easy installation and low cost (isolation type and minimum external device required). FeaturesFully IEEE 802.3 af/at compliant25 watt output loadIEEE Power class programmable (Green) 1500 Volt DC isolation (Input to Output) 5V output voltage modelsOverload and short circuit protectionWide input voltage (36V to 57V DC) Support PoE applications in both of Fast / Gigabit Ethernet environments. Low output ripple and noiseRoHS
CompliantSpecification: Power
input: DC
36-57VPower output: 5VOutput
Power: 25 Watts (70C); 22.5 Watts (85C)
POE standard: IEEE 802.3 af/atWorking
Environment: -40~85CStorage
Temperature: -40~100CPoE
HAT Dimension: 70 x 55 x 16mm( 2.76 x 2.17 x 0.63 in)Weight (Include cooler): 40g ( 0.09I b)Package
Content: 1 * PoE HAT1 * Cooling Fan
