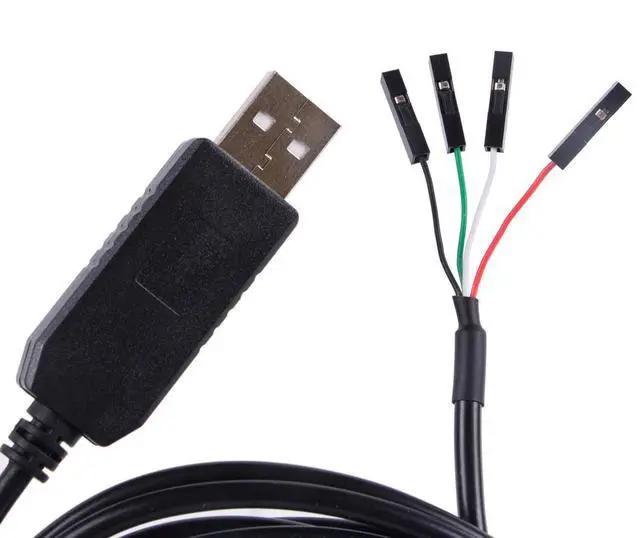

Main image of Suamdoen USB to TTL Serial 5V 3.3V Adapter Cable TX RX VCC GND Pinout with 4 Pin 0.1 inch Pitch Female Socket FT232RL Chip for Windows 10 8 7 XP Vista Android Mac OS (Logic 5V Level)

Alt view image 2 of 5 - Suamdoen USB to TTL Serial 5V 3.3V Adapter Cable TX RX VCC GND Pinout with 4 Pin 0.1 inch Pitch Female Socket FT232RL Chip for Windows 10 8 7 XP Vista Android Mac OS (Logic 5V Level)

Alt view image 3 of 5 - Suamdoen USB to TTL Serial 5V 3.3V Adapter Cable TX RX VCC GND Pinout with 4 Pin 0.1 inch Pitch Female Socket FT232RL Chip for Windows 10 8 7 XP Vista Android Mac OS (Logic 5V Level)

Alt view image 4 of 5 - Suamdoen USB to TTL Serial 5V 3.3V Adapter Cable TX RX VCC GND Pinout with 4 Pin 0.1 inch Pitch Female Socket FT232RL Chip for Windows 10 8 7 XP Vista Android Mac OS (Logic 5V Level)

Alt view image 5 of 5 - Suamdoen USB to TTL Serial 5V 3.3V Adapter Cable TX RX VCC GND Pinout with 4 Pin 0.1 inch Pitch Female Socket FT232RL Chip for Windows 10 8 7 XP Vista Android Mac OS (Logic 5V Level)

Shop All ARCTIC Products | Visit ApexDash Store

Suamdoen USB to TTL Serial 5V 3.3V Adapter Cable TX RX VCC GND Pinout with 4 Pin 0.1 inch Pitch Female Socket FT232RL Chip for Windows 10 8 7 XP Vista Android Mac OS (Logic 5V Level)

USB to TTL UART 5V Logic Level Adapter Cable, USB to 4Pin TX RX GND VCC(5V) FeMale Socket Header

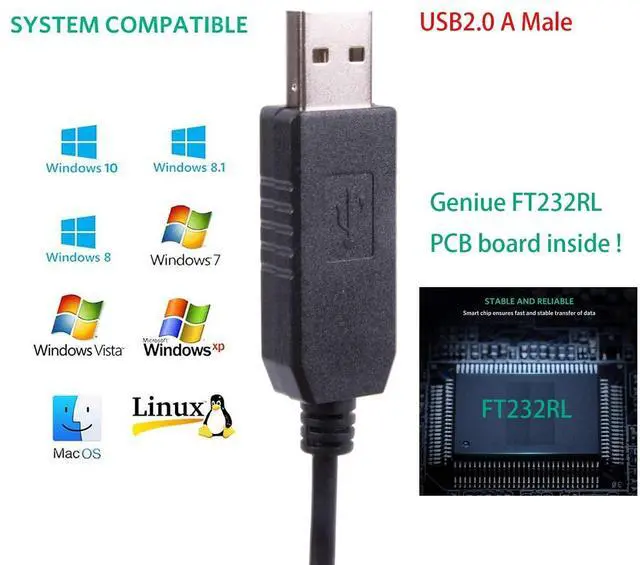

Geniue FT232RL PCB Serial Module Inside , Widely Used in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

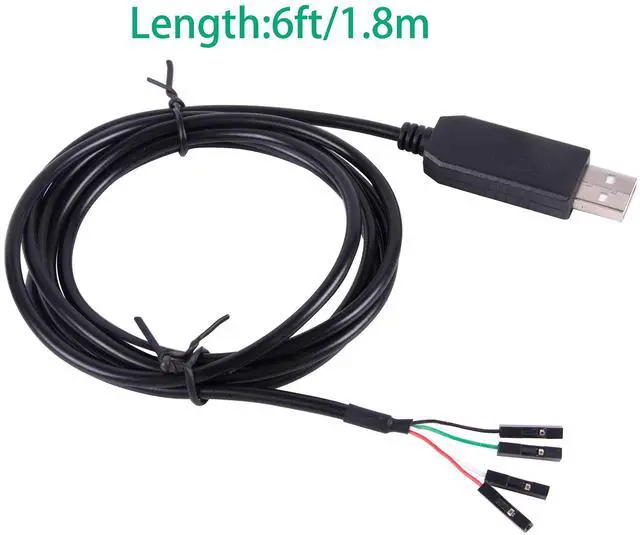

Length: 6 feet USB TTL Serial Cable ,provides access to UART (transmit) Tx, (receive) Rx, VCC (5V) and GND
Geniune FT232RL chipset Import from UK on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM
Compatible with Windows 10, 8, 8.1, 7 (32, 64-bit), Android, 2008/XP/Vista/CE; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

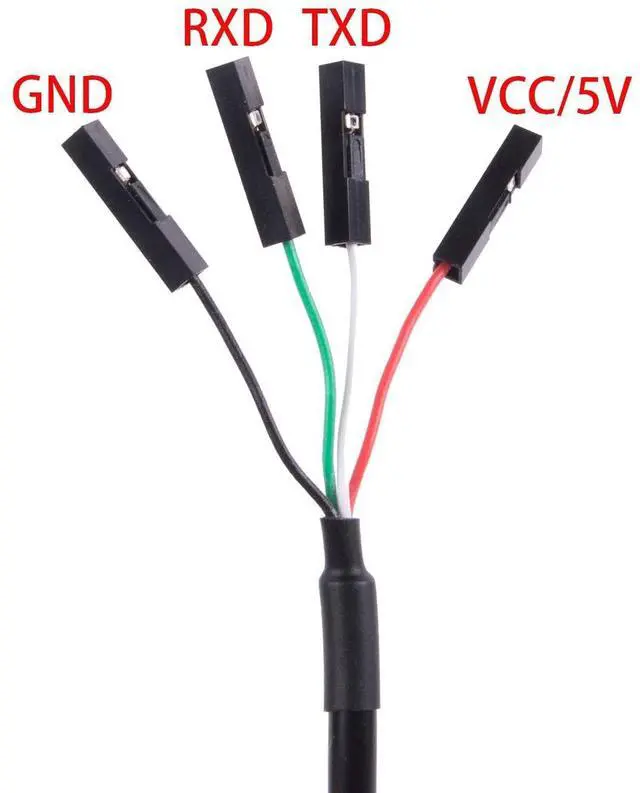

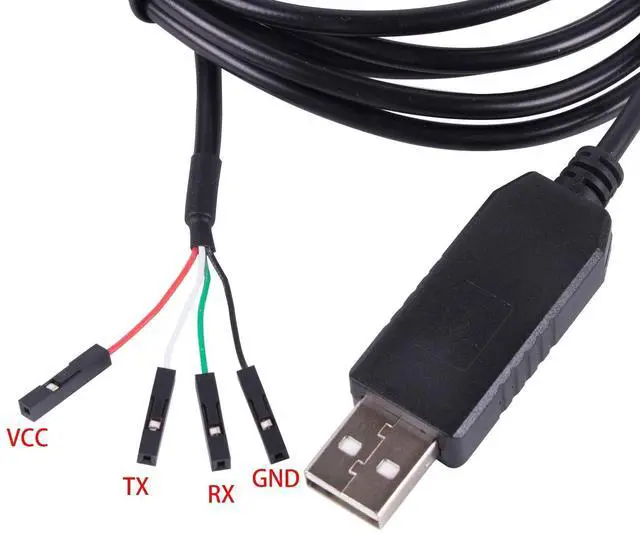

USB to TTL Serial Adapter 5V Logic Level cable5V logic level serial communication cablePinout: TXD, RXD, GND, VCC (5V) Geniune FT232RL Chip, Full Support Windows, Android, Vista, Linux, Mac
OS etcLength: 6ft/
1.8 mConnector: USB to TTL Serial Adapter 4Pin 0.1" pitch Male Socket CableThis USB TLL serial converter is built with FT232RL chip, FT232RLs royalty-free VCP allow for communication as a standard COM port; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.
Applications: Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O, FPGA / PLD to USB
Industrial ControlUSB Software /
Hardware Encryption DonglesNote to buyer: FT232RL
drivers download link:
http: //www. ftdichip. com/Drivers/VCP.
htmDriver installing guide:
http: //www. ftdichip. com/Support/Documents/InstallGuides.
htmFT232RL chip datasheet:
http: //www. ftdichip. com/Support/Documents/DataSheets/ICs/DS_FT232R. pdf
