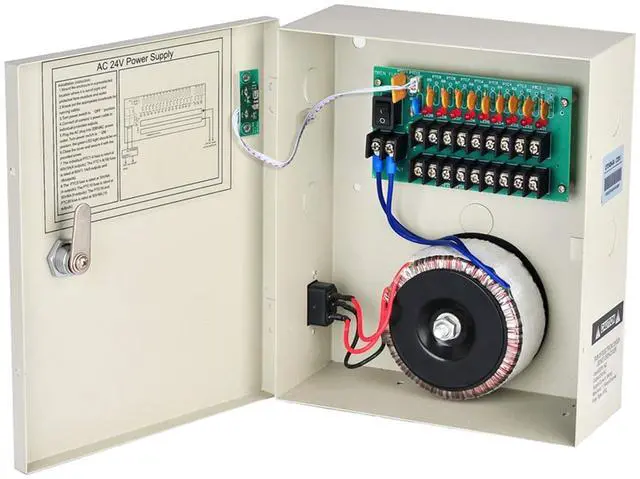

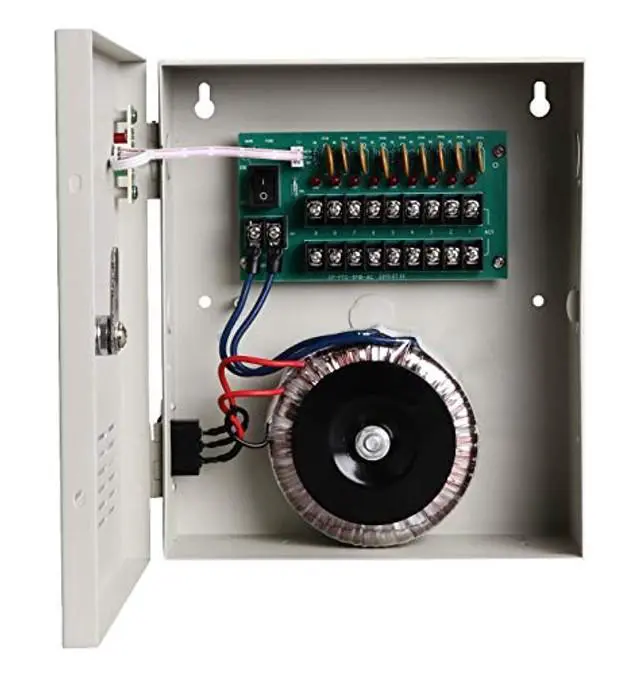

EVERSECU 9 Channel AC 24V 5 Amp Reset Fuse CCTV DC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply
- Input: 100-240VAC; Output: 24V AC ; Supply Current: 5Amp; Max. Amp: 2Amp/Channel; AC24V Regulator CCTV Power Supply Box, 9 Outputs with PTC Fuse
- General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time 100000 hours, when problem occurs, only affect the independent output, other outputs still working.
- Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
- Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
- New Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and AC Plug are included
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control, etc.
Specfication:
Model: CP2409-5AInput
Voltage: AC 110V or 220V, 60Hz or 50HzOutput
Voltage: AC24VTotal
Output Current: 5ATotal
Output Channel: 9CHFuse
type: PTC
ResettableFuse Rating: 1.1AE
fficiency: >=70%Storage
Temperature: -4085Operating
Temperature: -2060Product
Net Weight: 3.79 kgProduct
Dimension: 206.4 * 242.3 * 84.8 mmPackage
Dimension:
213*252*94mmCertificate: CE, FCC
Warranty: 2 Year
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control, etc.
Specfication:
Model: CP2409-5AInput
Voltage: AC 110V or 220V, 60Hz or 50HzOutput
Voltage: AC24VTotal
Output Current: 5ATotal
Output Channel: 9CHFuse
type: PTC
ResettableFuse Rating: 1.1AE
fficiency: >=70%Storage
Temperature: -4085Operating
Temperature: -2060Product
Net Weight: 3.79 kgProduct
Dimension: 206.4 * 242.3 * 84.8 mmPackage
Dimension:
213*252*94mmCertificate: CE, FCC
Warranty: 2 Year
