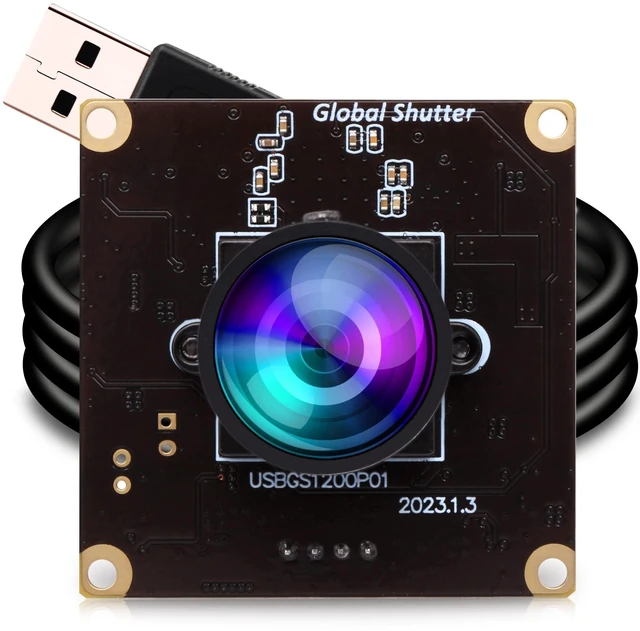

ELP Global Shutter USB Camera Module High Speed with Wide Angle Lens for Computer 1080P Mini UVC USB2.0 Webcam Board High Frame 90fps PC Camera for Laptop (100 no Distortion Lens)
- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
- HD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 90fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. 1080P usb camera module with 1/2.6 Aptina AR0234 high quality sensor for sharp clear image.
- Wide Angle 120degree No Distortion Lens, HFOV about 126degree, mini 38mmx38mm camera board can be used in machine visions for personal or industrial.

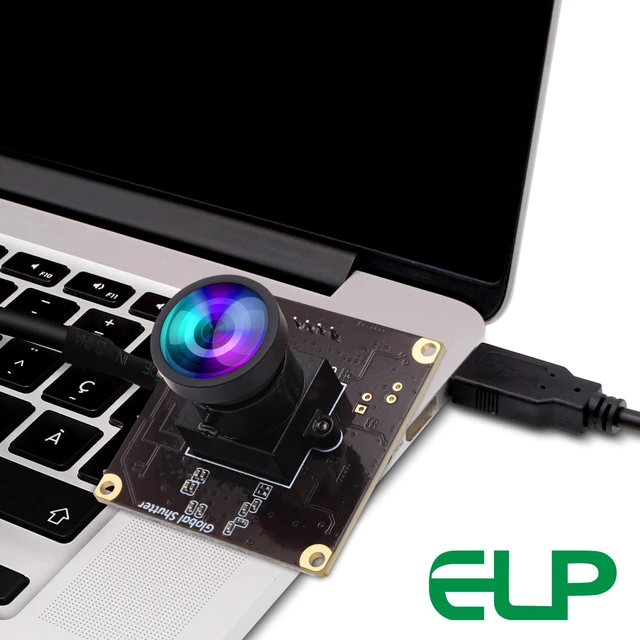

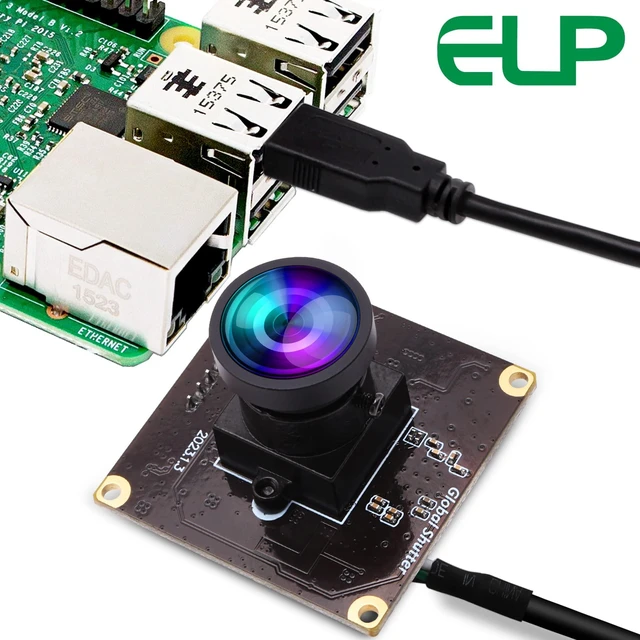

- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs iris and physiognomy recognition, depth and motion detection.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model:
ELP-USBGS1200P01Sensor: Aptina AR0234 (1/ 2.6 )
Global ShutterMax Resolution: 1920 (H) *1200 (V)
Lens Size: 1/ 2.6 inch ( 4:3 )Pixel
Size: 3.0 mCompression
Format: MJPEG / YUV2 (YUYV) Resolution &
Frame rate: 1920x1200@90fps MJPEG/1920x1080@90fps MJPEG1600x1200@90fps MJPEG/1280x960@90fps MJPEG1280x720@90fps MJPEG/1024x768@90fps MJPEG960x720@90fps MJPEG/800x600@90fps MJPEG640x480@90fps MJPEG/320x240@90fps MJPEG
Surface Mount Technology SMT
Focus: FixedCentral
Definition: 600LW/PH (Center)
S/N Ratio: 37dBDynamic
Range:
70dBSensitivity: 1.4V /lux-sec@550nmMini
Illumination: 0.3
luxShutter: Global
ShutterInterface: USB 2.0 High SpeedAEC Support/AWB Support/AGC SupportAdjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, ExposureLens
Parameters: HD 2.1 mm lensOptional 3.6 mm/ 2.8 mm/ 2.9 mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional)Fisheye lens 150 degree /180 degree etc.
LED board power connector: Support 2P- 2.0 mm socketPower
Supply: USB BUS POWER 4P- 2.0 mm socketOperating VoltageDC5VWorking Current160mA- 190mADimension38mm38mmStorage Temperature-20C to 80CWorking Temperature0C to 60CUSB
Cable: 1MOperating
System Request: WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux- 2.6. 26)MAC-OS X 10.4. 8 or laterAndroid 4.0 or above with UVC
ELP-USBGS1200P01Sensor: Aptina AR0234 (1/ 2.6 )
Global ShutterMax Resolution: 1920 (H) *1200 (V)
Lens Size: 1/ 2.6 inch ( 4:3 )Pixel
Size: 3.0 mCompression
Format: MJPEG / YUV2 (YUYV) Resolution &
Frame rate: 1920x1200@90fps MJPEG/1920x1080@90fps MJPEG1600x1200@90fps MJPEG/1280x960@90fps MJPEG1280x720@90fps MJPEG/1024x768@90fps MJPEG960x720@90fps MJPEG/800x600@90fps MJPEG640x480@90fps MJPEG/320x240@90fps MJPEG
Surface Mount Technology SMT
Focus: FixedCentral
Definition: 600LW/PH (Center)
S/N Ratio: 37dBDynamic
Range:
70dBSensitivity: 1.4V /lux-sec@550nmMini
Illumination: 0.3
luxShutter: Global
ShutterInterface: USB 2.0 High SpeedAEC Support/AWB Support/AGC SupportAdjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, ExposureLens
Parameters: HD 2.1 mm lensOptional 3.6 mm/ 2.8 mm/ 2.9 mm/6mm/8mm/12mm/16mm/25mm... No Distortion Lens (FOV 65~130 degree optional)Fisheye lens 150 degree /180 degree etc.
LED board power connector: Support 2P- 2.0 mm socketPower
Supply: USB BUS POWER 4P- 2.0 mm socketOperating VoltageDC5VWorking Current160mA- 190mADimension38mm38mmStorage Temperature-20C to 80CWorking Temperature0C to 60CUSB
Cable: 1MOperating
System Request: WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux- 2.6. 26)MAC-OS X 10.4. 8 or laterAndroid 4.0 or above with UVC
