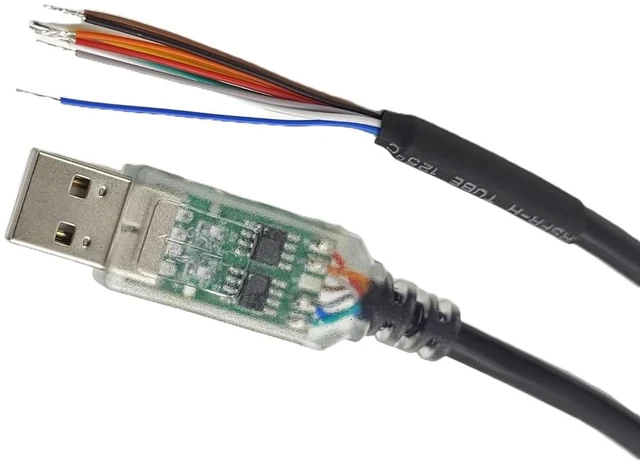

USB to RS422 Converter 9-Wire Full Duplex Industrial Cable
- TRUE FULL DUPLEX COMMUNICATION: Engineered for high-speed industrial environments, this adapter supports 4-wire RS-422 standard with separate differential pairs for Transmit (TX+/-) and Receive (RX+/-). This allows simultaneous bi-directional data flow without collisions, ideal for high-noise factory floors and long-distance (up to 1200m) stable transmission
- COMPLETE 9-WIRE INTERFACE: Features a robust UL2464 24AWG 9-core shielded cable with tinned ends. Includes all essential signals: TX/RX differential pairs, GND, VCC, plus hardware handshaking (RTS, CTS). Perfect for connecting to complex industrial equipment, medical devices, or custom PLC terminal blocks requiring precise signal control
- HARDWARE AUTO FLOW CONTROL: Utilizes an advanced USB-to-UART bridge with integrated auto-direction circuitry. Eliminates the need for manual RTS signal programming in your software. The chipset automatically manages data direction, ensuring zero data loss and seamless integration with legacy
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Professional USB to RS422 Industrial Interface CableEngineered for Mission-Critical StabilityThe USB-RS422-WE Series is designed for engineers who require bulletproof reliability in harsh electrical environments. Unlike standard USB-to-Serial adapters, our 9-core cable provides the full suite of RS-422 signals necessary for long-haul communication and robust noise immunity. Why Choose Our 9-Wire Solution? RS-422 offers superior performance over RS-232 and RS-485 in scenarios requiring simultaneous two-way communication. Our cable features premium 24AWG conductors and double shielding to prevent signal degradation, ensuring your data remains intact over extended cable runs.

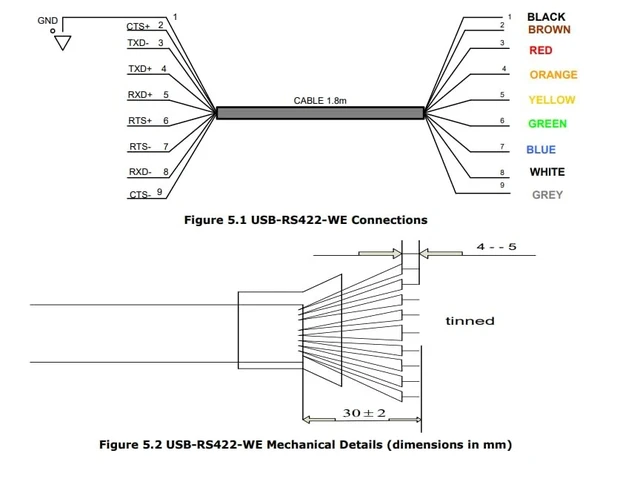

Standard 9-Wire Color Code:
Black: GND (Ground)
Brown: CTS+ (Input)
Red: TXD- (
Output) Orange: TXD+ (Output)
Yellow: RXD+ (Input)
Green: RTS+ (Output)
Blue: RTS- (Output)
White: RXD- (Input)
Grey: CTS-
(Input) (Note: CTS+ is usually handled via software or internal loops). Please double-check your device's manual as pinouts may vary.
Technical
Interface: USB 2.0 Full Speed to
RS-422 LevelsCable Length: 1.8 Meters (approx.
6 Feet)Data Rate: 300 bps to 3
MbpsOperating Temperature: -40C to +85CCable
Type: UL2464 24AWG (9 Cores +
Shield)Package Includes: 1 x USB to RS422 Wire Ended Cable
Standard 9-Wire Color Code:
Black: GND (Ground)
Brown: CTS+ (Input)
Red: TXD- (
Output) Orange: TXD+ (Output)
Yellow: RXD+ (Input)
Green: RTS+ (Output)
Blue: RTS- (Output)
White: RXD- (Input)
Grey: CTS-
(Input) (Note: CTS+ is usually handled via software or internal loops). Please double-check your device's manual as pinouts may vary.
Technical
Specifications
:Interface: USB 2.0 Full Speed to
RS-422 LevelsCable Length: 1.8 Meters (approx.
6 Feet)Data Rate: 300 bps to 3
MbpsOperating Temperature: -40C to +85CCable
Type: UL2464 24AWG (9 Cores +
Shield)Package Includes: 1 x USB to RS422 Wire Ended Cable
