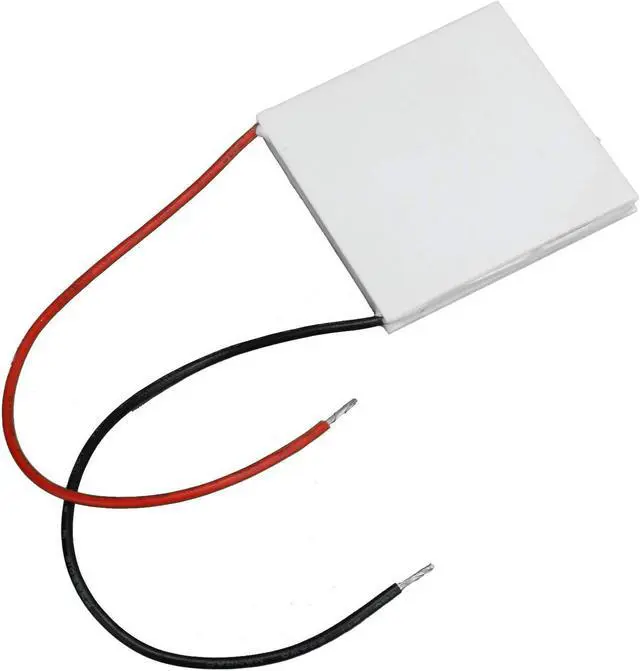

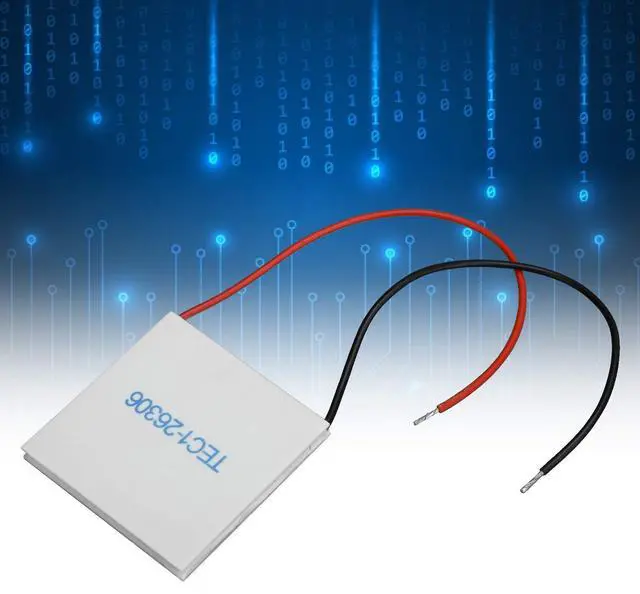

Thermoelectric Cooler Module, TEC126306 50 x 50mm Thermoelectric Cooler 24V 6A Temperature Difference Semiconductor Refrigeration Tablets Cooling Peltier Plate Module

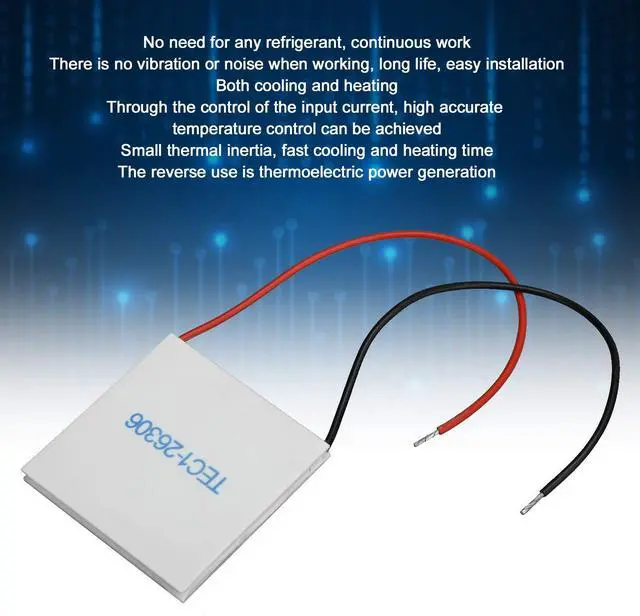

- [(Long service time+Simple )] No need for any refrigerant, continuous work, no pollution source, no rotating parts, no rotation effect, no sliding part is a solid piece, no vibration, noise, long life, easy installation.
- [(Cooling+Heating function)] Semiconductor refrigeration fins have two functions, both cooling and heating. The cooling efficiency is generally 55-60%, but the heating efficiency is always higher than 1, so using one can replace the separate cooling system and heating system.
- [(Semiconductor refrigeration chip)] Semiconductor refrigeration chip is a currenttransducer type chip. Through the control of input current, highaccurate temperature control can be realized. Coupled with temperature detection and control means, it is easy to realize remote control, program control, and computer control to form an automatic control system.
- [(Fast cooling time)] The thermal inertia is small, and the cooling and heating time is fast. When the hot end has good heat dissipation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Thermoelectric Cooling Plate

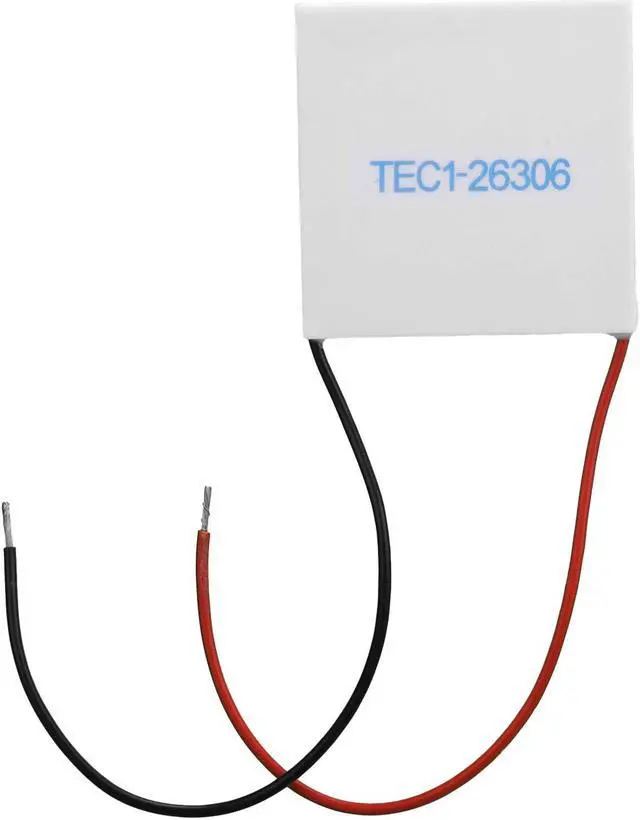

Model: TEC1-26306
Material: Ceramic
Rated Voltage: DC24V
Maximum Voltage: DC30V (Th=30)
Maximum Current: 6A (U=30V, Th=30)
Maximum Temperature Difference: 66 (Qc=0, Th=30)
Maximum Cooling Capacity: 107W (T=0, Th=30)
Internal Resistance: 3.7 - 4.3O

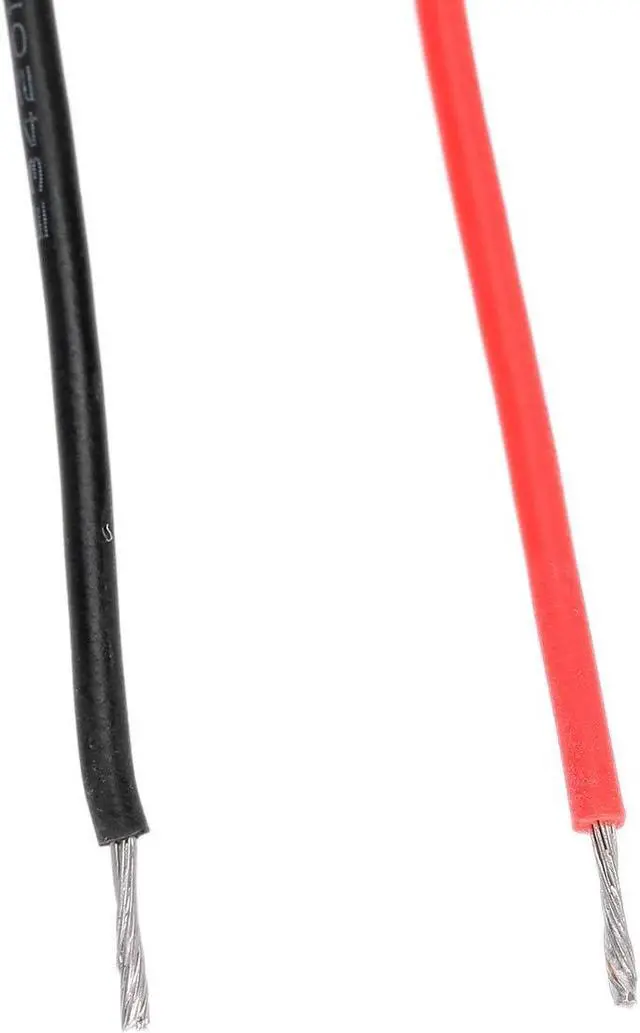

Specification: 20AWG, L=150mm
Packaging Process: 704 silicone rubber sealing
Assembly Pressure: 6kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1.
Applications In High-tech Fields: Satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2.
Home Appliance Applications: Dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3.
Application In Electronic Technology: Cooling of electronic equipment, electronic components, computers, etc.
4.
Industrial Applications: Automobile refrigerators, small air conditioners, dehumidifiers, thermostats, testing instruments, etc.
5.
Agricultural And Biological Applications: Physical cooling pads, semiconductor physiological, vaccine preservation, etc.
Package List:
1 x Semiconductor Cooling Film
Item Type: Thermoelectric Cooling Plate
Model: TEC1-26306
Material: Ceramic
Rated Voltage: DC24V
Maximum Voltage: DC30V (Th=30)
Maximum Current: 6A (U=30V, Th=30)
Maximum Temperature Difference: 66 (Qc=0, Th=30)
Maximum Cooling Capacity: 107W (T=0, Th=30)
Internal Resistance: 3.7 - 4.3O
Specification: 20AWG, L=150mm
Packaging Process: 704 silicone rubber sealing
Assembly Pressure: 6kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1.
Applications In High-tech Fields: Satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2.
Home Appliance Applications: Dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3.
Application In Electronic Technology: Cooling of electronic equipment, electronic components, computers, etc.
4.
Industrial Applications: Automobile refrigerators, small air conditioners, dehumidifiers, thermostats, testing instruments, etc.
5.
Agricultural And Biological Applications: Physical cooling pads, semiconductor physiological, vaccine preservation, etc.
Package List:
1 x Semiconductor Cooling Film
