TP-Link 8-Port Gigabit Ethernet L2 Managed Switch with 2-SFP Slots (TL-SG3210)

What This Product Does
TP-LINK JetStream Gigabit L2 Managed Switch TL-SG3210 is equipped with 8 Gigabit RJ45 ports and 2 SFP slots. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. It is a cost-effective product solution for small- and medium-sized businesses. Key Features Secure Networking
The TL-SG3210 provides IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against broadcast storms, ARP attacks, etc. It also integrates options to prevent typical DoS attacks. In addition, the Access Control Lists (ACL, L2 to L4) feature restricted access to sensitive network resources by denying packets based on source and destination MAC addresses, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to verify user identity before accessing the network.

Advanced QoS Features
In order to balance the traffic of voice, video and other kinds of services in one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, and so on to ensure, for example, that voice and video are always clear and smooth. In conjunction with the Voice VLAN, the switch can guarantee a satisfactory performance of voice applications. Abundant Layer 2 Features
The TL-SG3210 supports a complete portfolio of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3 x Flow Control function. Furthermore, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping enables the switch to intelligently forward the multicast stream only to the appropriate subscribers, and IGMP Throttling and Filtering restricts each subscriber on a port level to prevent unauthorized multicast access. Enterprise Level Management Features
TL-SG3210 is easy to use and manage. It supports various user-friendly standard management methods such as intuitive web-based Graphical User Interface (GUI) and industry-standard Command Line Interface (CLI). SNMP (v1/2/3) and RMON enables the switch to be polled for valuable status information and sends traps on abnormal events. The switch can also to be managed by the commander switch through IP clustering function.

Specifications

Hardware Interface: 8 10/100/1000Mbps RJ45 Ports, 2 100/1000Mbps

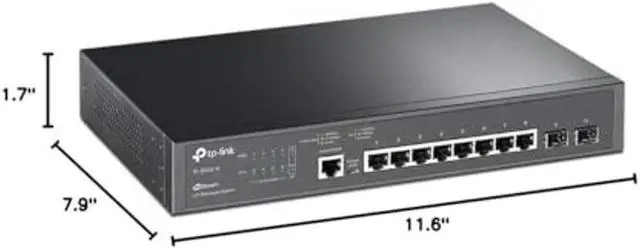

SFP Slots Fan Quantity: Fanless Dimensions (W
X D X H): 11.6 x 7.9 x 1.7 in (294 x 200 x 44 mm)
Power Supply: Internal Universal Power Supply, AC 100-240V~50/60Hz input Support 100-240V power supply L2 Switching Features Link Aggregation
- Support 802.3 ad LACP
- Support static link aggregation
- Up to 8 aggregation groups containing 8 ports per group Spanning Tree Protocol
- 802.1D Spanning Tree Protocol
- 802.1W Rapid Spanning Tree Protocol
- 802.1S Multiple Spanning Tree Protocol
- STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect Multicast
- Support IGMP Snooping V1/V2/V3, up to 256 groups
- Support Multicast VLA
Ns, IGMP Immediate Leave, Unknown IGMP Throttling, IGMP Filtering, Static Multicast IP VLAN
- Support up to 4000 802.1Q VLA
Ns
- Support 4000 VIDs
- Support Port VLAN, Protocol VLAN and MAC-based VLAN, Port Isolation
- Support GARP/GVRP
- Support management VLAN conguration MIBs MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-LINK private MIBs Quality of Service Support 802.1 p CoS/DSCP priority Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Support Voice VLAN for voice
