Specification:
5Megapixel resolution: 2592X1944

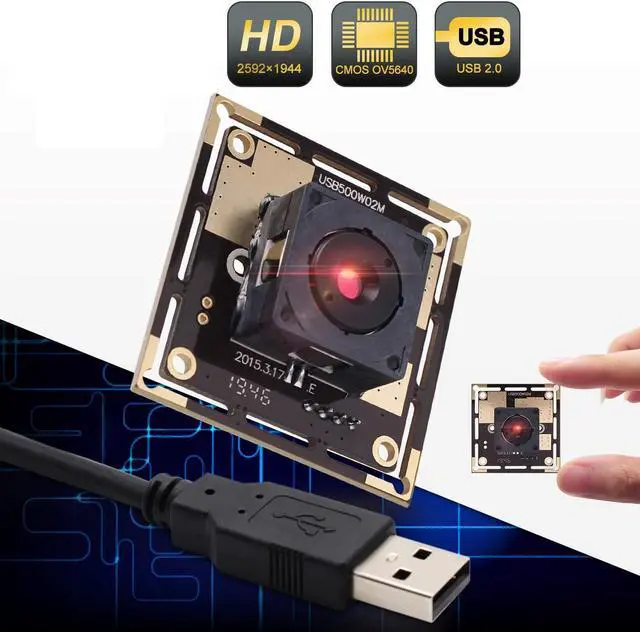

Sensor 1/4" CMOS OV5640
Size: 38X38mm, 32x32mm
5.0 megapixel, Max. 2592 (H) x1944 (V) pixels
Picture format MJPEG or YUY2 optional/USB Protocal USB 2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
Signal Output: Serial data for USB standard compliant 2.0
Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4. 8 or later/Wince with UVC/Android 4.0 or above"
Effective Pixels:
2592 (H) x 1944 (V) pixels/2048 (H) x 1536 (V) pixels/1600 (H) x 1200 (V) pixels/1920 (H) x 1080 (V) pixels
1280 (H) x 1024 (V) pixels/1280 (H) x 720 (V) pixels/1024 (H) x 768 (V) pixels/800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels
Performance:
2592x1944 MJPEG 15fps YUY2 3fps
2048x 1536 MJPEG 15ps YUY2 3fps
1600x 1200 MJPEG 15fps YUY2 3fps
1920x 1080pixels MJPEG 15fps YUY2 3fps
1280x 1024MJPEG 15fps YUY2 7.5 fps
1280x 720 MJPEG 30fps YUY2 7.5 fps
1024x 768 MJPEG 30fps YUY2 15fps
800x 600 MJPEG 30fps YUY2 30fps
640x 480 MJPEG 30fps YUY2 30fps
