    EBTOOLS SX1262 433/470M LoRaWAN HAT Gateway Module, 40PIN GPIO Connector, SF7 SF12 Spreading Factor, SPI Interface, with Suction Cup Antenna, Compatible with

    Be the first to review this product...
    • SX1262 RF Chip: This gateway module HAT adopts SX1262 RF chip which features long communication distance, strong anti interference ability and more, suitable for Sub ghz band network, LF(410 to 510MH2) band version is optional, combined with long range radio gateway, can access TTN and other servers to form network.
    • LBT Function: This SX1262 HAT supports LBT, monitoring the channel noise before transmitting, greatly improves the success ratio under extreme environment.
    • Strength Indicating: This SX1262 HAT supports RSSI strength indicating for evaluating quality and tuning the network.
    • Up to 5KM : This For RasPi SX1262 HAT supports Wake on Radio, config, carrier sensing, communication key, and it allows data up to 5km.
    • Wake On Radio: This gateway HAT for SX1262 supports wake on radio, which is ultra low power consumption, suitable for battery powered applications. Support fixed point , broadcast , channel monitor.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

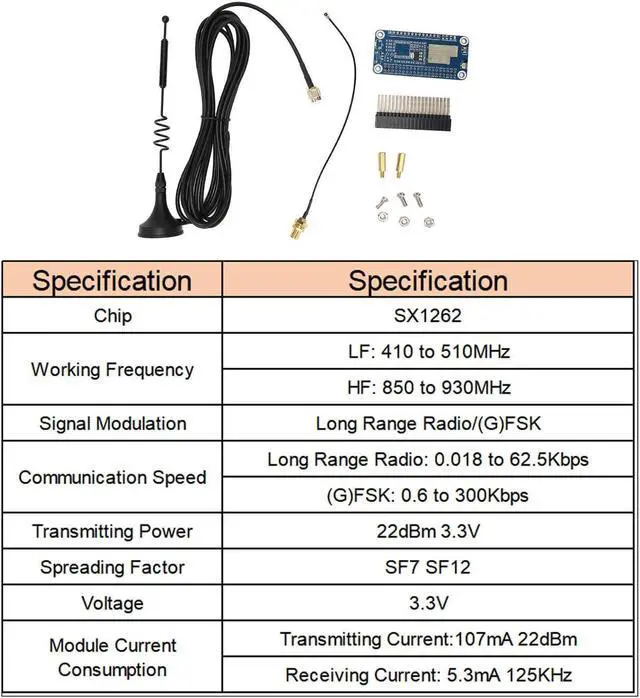

    Specification:
    Item Type: Gateway Module HAT
    Material: LCD
    RF Chip: SX1262
    Operating Frequency: 433/470MHz
    Signal Modulation: Long Range Radio/ (G) FSK
    Spreading Factor: SF7 SF12
    Communication Interface: SPI

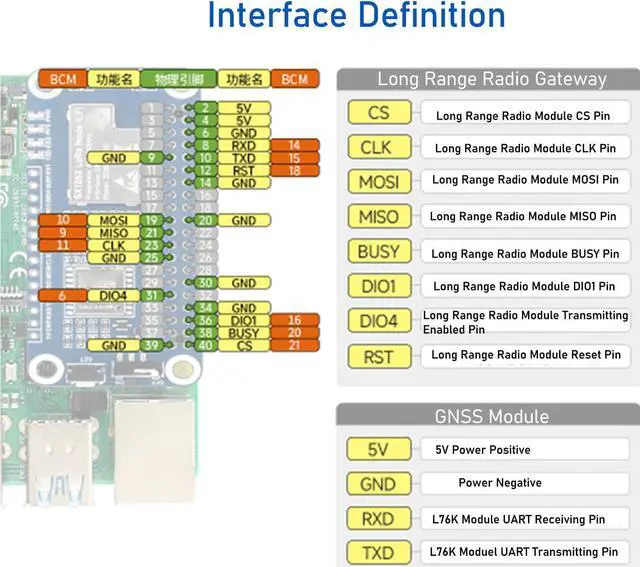

    Interface Type: 40PIN GPIO Connector

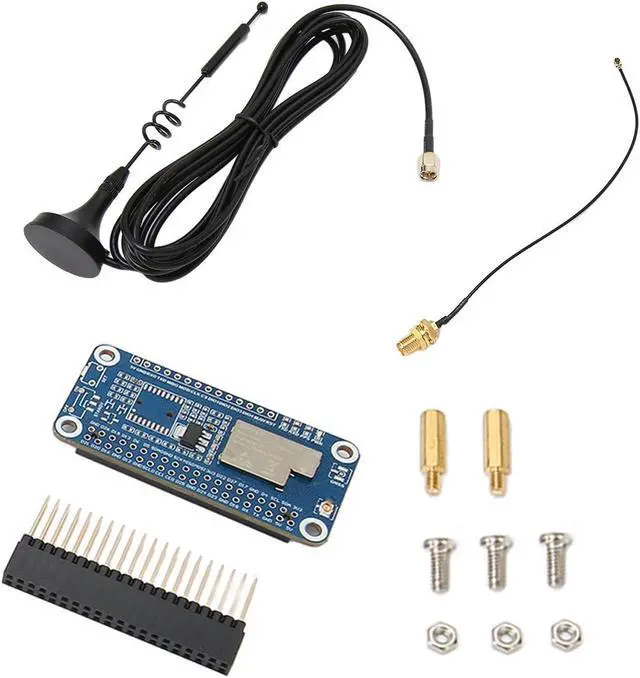

    Package List:
    1 x Gateway Module HAT
    1 x Screw Kit
    1 x Long Connector
    1 x Adapter Cable
    1 x Receiver
