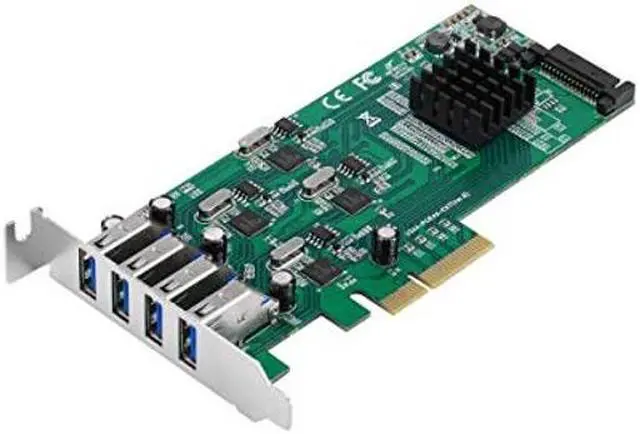

SIIG 4 Port USB 3.0 PCIe Card with 4 Dedicated 5Gbps Channels (USB 3.2 Gen 1) - Quad Core 20Gbps - UASP - SATA Power (JU-P40811-S1

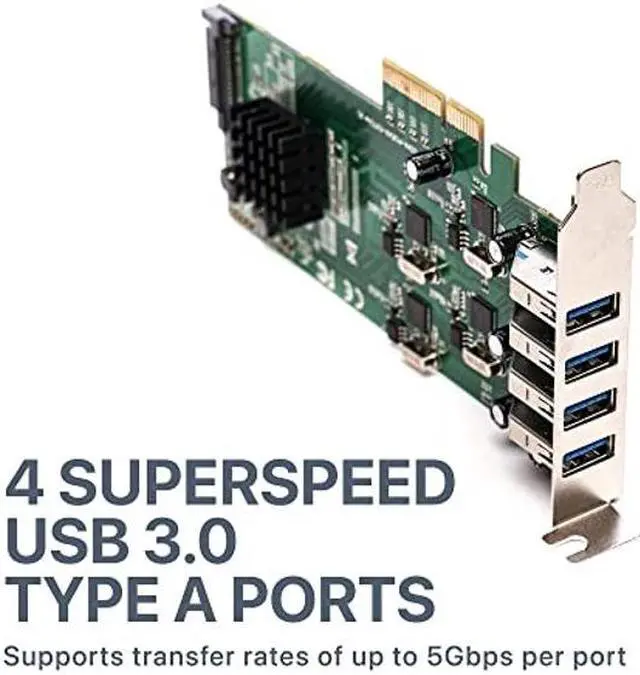

FOUR INDEPENDENT SUPERSPEED USB 3. 0 TYPE -A PORTS: delivers up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps
HIGH PERFORMANCE: Industry recognized Renesas uPD720202 chipset

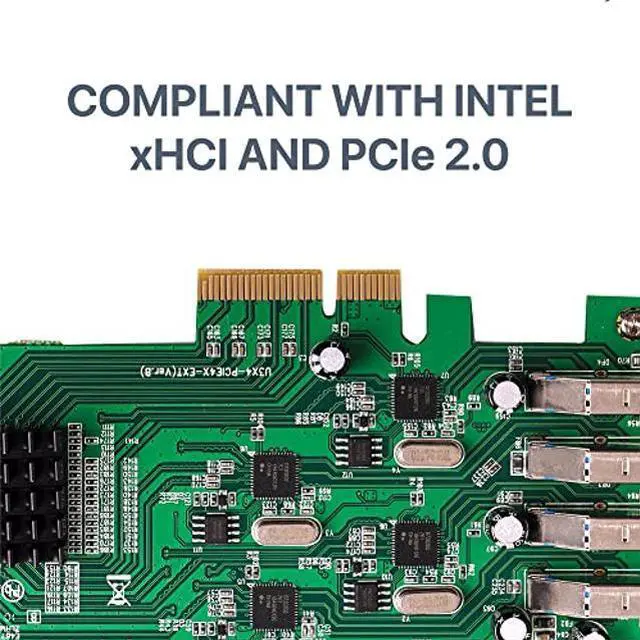

SUPERSPEED: Supports the following speed data rate as follows: Low-speed (1. 5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps). Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1. 0. Compliant with PCIe 2. 0 standard

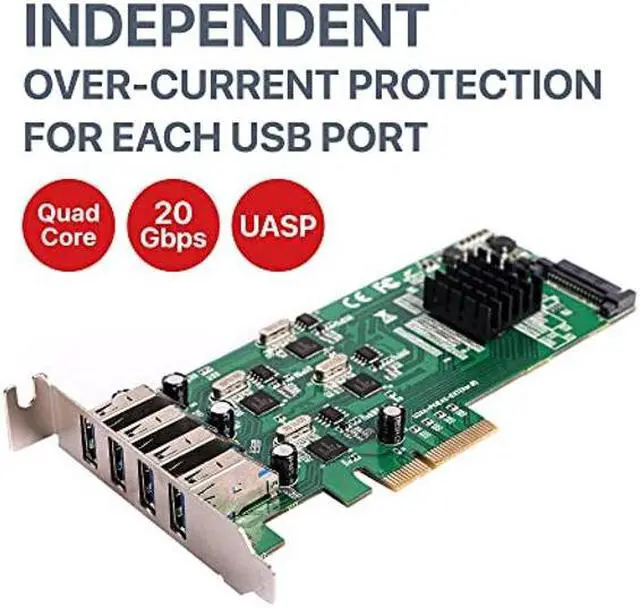

ADVANCED FEATURES: Low-profile bracket design fits lower size system form factor with included low profile bracket. Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes
2 YEAR WARRANTY WITH PREMIUM CUSTOMER SUPPORT: fully compliant with USB 3. 0 specification, Certifications/Standards: FCC, CE, RoHS. Our products are backed with a 2-year limited warranty and experienced tech support team in Silic

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Important Notes:
Chipset: Renesas uPD720202 Compliant with USB 3.0
SpecificationBus connector: PCI
Express 4xVersion: PCI Express 2.0USB data transfer rate: Up to 5Gbps for each port Total
USB bandwidth: 20GbpsUSB
power output: Up to 900mA for each portConnectors: 4x 9-pin USB 3.0 Type A, Female 1x 15-pin SATA power connector
Note: SATA power connector required System Requirement Low profile desktop PC with one available PCI Express (PCIe) x4 slot SATA power connection is required Windows 10 (32-/64-bit) / 8. x (32-/64-bit) / 7 (32-/64-bit) Windows Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: Made in China
