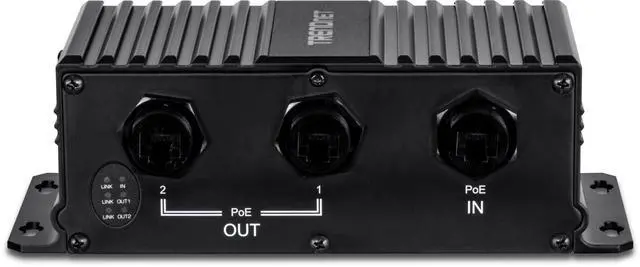

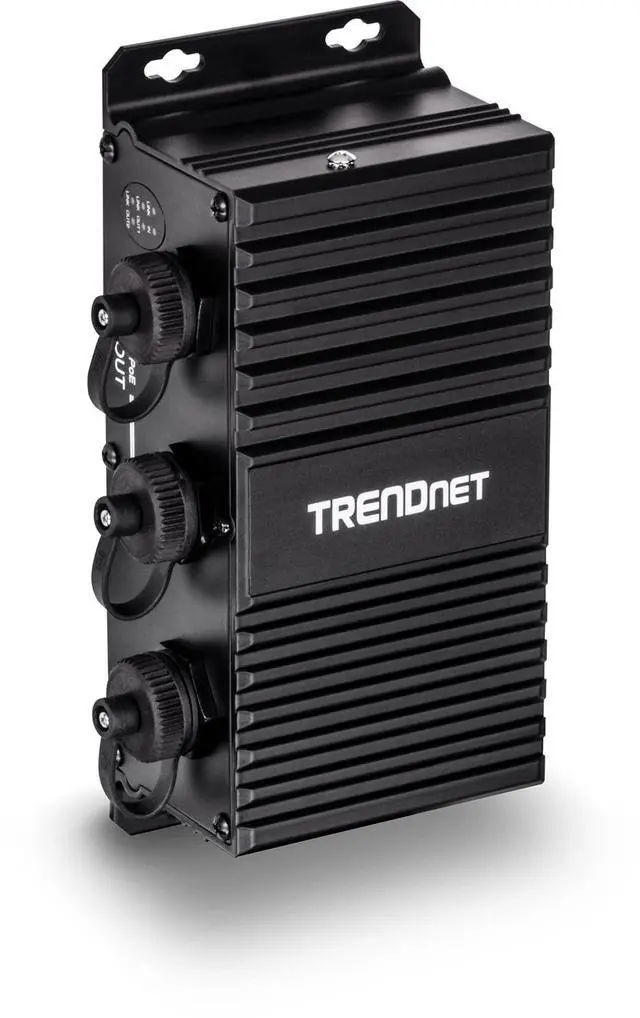

TRENDnets 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft. ) for up to two PoE+ devices. It auto-detects a PoE ( 15.4W ), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft. ) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft. ). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing.
Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.
UPoE Power
Extends a UPoE connection up to 100 meters (328 ft. ) to PoE ( 15.4W ), PoE+ (30W), and UPoE (60W) devices
Gigabit Ports
Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft. ) to two PoE+ devices.
Outdoor Rated
Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40° 75° C (-40° 167° F).
PACKAGE CONTENTS
TI-EU120

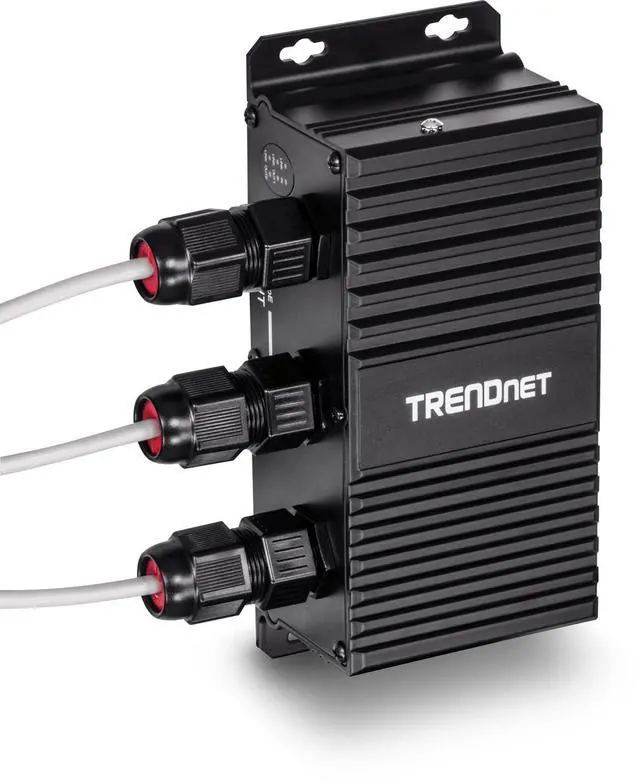

3 x IP67 weather rated cable glands
Wall mount screws
Quick installation guide
