TRENDnet 5-Port Unmanaged Gigabit GREENnet Desktop Plastic Housing Switch, TEG-S5G, Plug & Play, 5 X Gigabit Ethernet Ports, 10Gbps Switching Capacity, Network Ethernet Switch, Fanless

From the Manufacturer

TEG-S5g 5-Port Gigabit GREE
Nnet Switch
The compact 5-Port Gigabit GREE
Nnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%*.
GREE
Nnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings.
Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 10Gbps with Full-Duplex Mode. Plug and Play this desktop switch for reliable high- speed network connectivity.
Overview TEG-S5g GREE
Nnet technology reduces power consumption by up to 70%* 5 Gigabit Auto-Negotiation ports Build a high performance energy efficient Gigabit network in minutes Simple Plug and Play installation of this compact desktop switch
Network Media:
Ethernet: Cat. 3, 4, 5, up to 100m
Fast Ethernet: Cat. 5, up to 100m
Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
Data Rates:
Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Gigabit Ethernet: 2000Mbps (Full-Duplex) Networking Solution enlarge

TREN
Dnet Gigabit Unmanaged Switch Comparison Chart Model TEG-S5g TEG-S8g TEG-S50g TEG-S80g TEG-S80Dg Product Title 5-Port Gigabit GREE
Nnet Switch 8-Port Gigabit GREE
Nnet Switch 5-Port Gigabit GREE
Nnet Switch 8-Port Gigabit GREE
Nnet Switch 8-Port Gigabit GREE
Nnet Switch Ports10/100Mbps - - - - - Gigabit 5x 8x 5x 8x 8x FeaturesForwarding Capacity 10Gbps 16Gbps 10Gbps 16Gbps 16Gbps Data Ram Buffering 104Kbytes 128Kbytes 104Kbytes 128Kbytes 128Kbytes Jumbo Frame 9Kbytes 9Kbytes 9Kbytes 9Kbytes 9Kbytes 802.3 x Flow Control MAC address entries 1k 8k 1k 4k 4k Enclosure Material Plastic Plastic Metal Metal Metal GREE
Nnet
Package Contents: TEG-S5g Multi-Language Quick Installation Guide Power Adapter (5V DC, 1A)
*Max power savings compared with standard TREN
Dnet switches.

Product Description

The 5-Port Gigabit GREE
Nnet switch, model TEG-S5G, provides high bandwidth performance, ease of use, and reliability, while reducing power consumption by up to 70%*. GREE
Nnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREE
Nnet technology works right out of the box with no management requirement.

boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting.

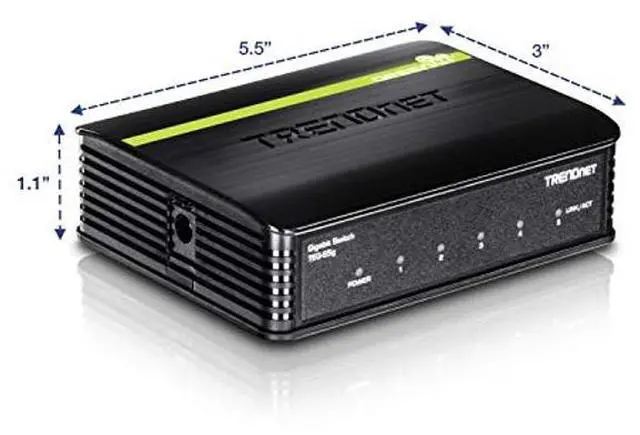

compact design

with a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fan less design is perfect for quiet environments that require silent operation.

Gigabit speeds

five Gigabit ports provide high-speed network connections to devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

energy savings

embedded GREE
Nnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port Power consumption During periods of low link utilization.
package contents

teg-s5g

quick installation guide

power adapter (5 V DC, 1 a)
