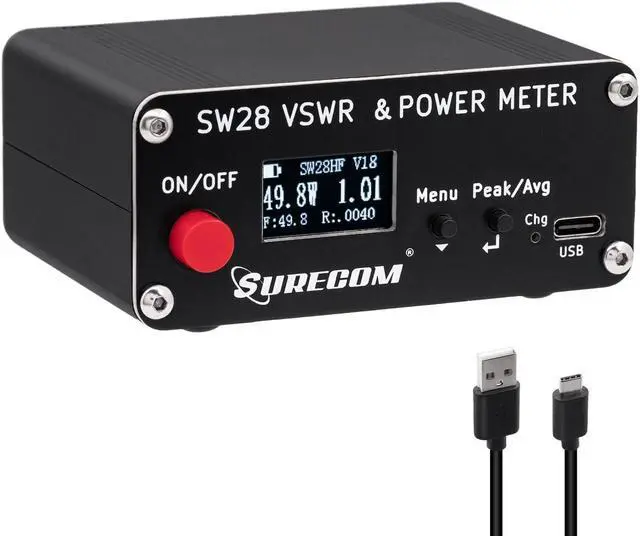

Mcbazel Surecom SW-28HF 1.5MHz-60MHz 120W Mini V.S.W.R. & Power Meter
- -According to the fitting algorithm of detector diode characteristics, the accuracy is better than +- 5%.
- -5 kinds of interface display methods, choose according to your own preferences, one-click switching.
- -Easy switch between normal mode and peak hold mode. Illuminated meter with large display for easy reading.
- -High-speed average detection method, real-time efficiency display. Buzzer alarm when standing wave is greater than 2.0. Built-in lithium battery can be used for more than 50 hours at a time.
- -Multi-function buttons make it more fun to use, reserve space for adding functions in the future, and provide an additional interactive method. Convenient control for easy operation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:

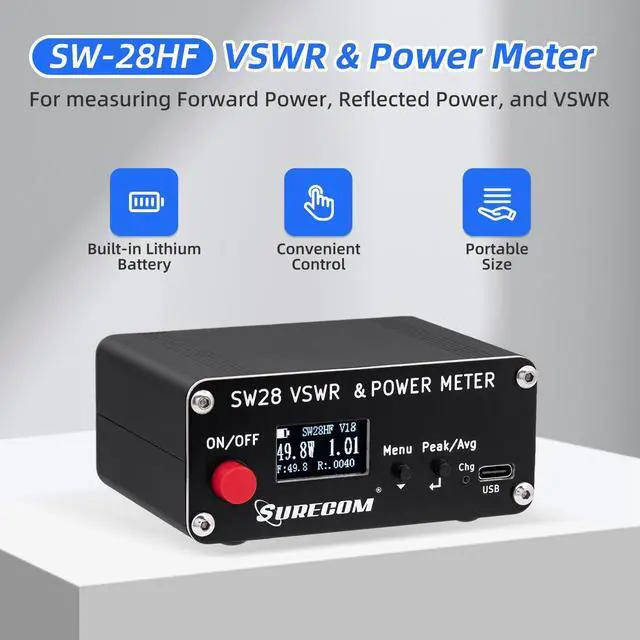

This SWR & Power meter is a highly accurate RF meter for measuring Forward Power, Reflected Power, and VSWR.
-Frequency range: 1.5 -60MHz
-Power measurement range: 0.5W -120W
-Standing wave measurement range: 1.0 - 19.99
-Insertion loss: <0.12dB
-Insert standing wave: <=1.02
-Measurement accuracy: better than +-5%
-Standing wave alarm: >= 2.0 (with close function)
-RF interface type: SL16-M (default SO239)
-Display content: forward power; standing wave; antenna power; efficiency.
-Power supply: built-in rechargeable lithium battery or USB type-C
-Power off power consumption: <0.1uA
-Data communication: USB type-C
-Size: 88mm*38mm*64mm (excluding protruding parts)
NOTE:
FM or AM mode continuous transmission is recommended not to exceed 110W; SSB or CW can work under 200W for a long time; more than 500W will damage the detection components.

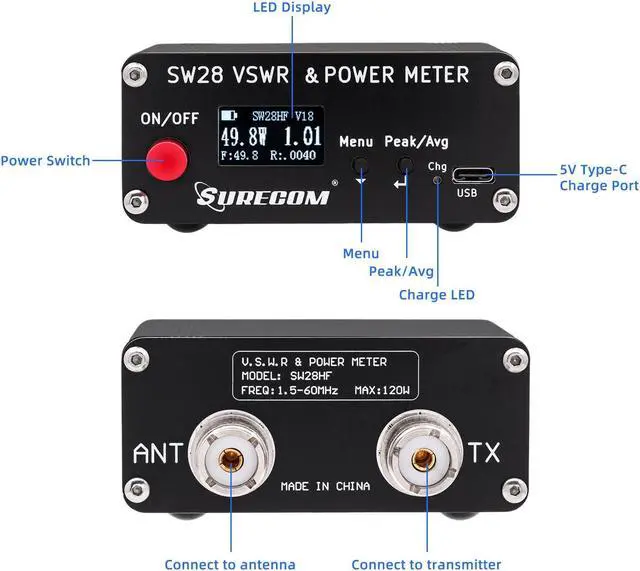

Simple introduction to use:
-Long press to switch the machine, short press to switch the display interface, double click to switch the standing wave alarm.
-There are 5 kinds of display interface in total, which are automatically saved and automatically recalled the next time you start up.
-The red light is displayed when charging, and the light is off when fully charged.

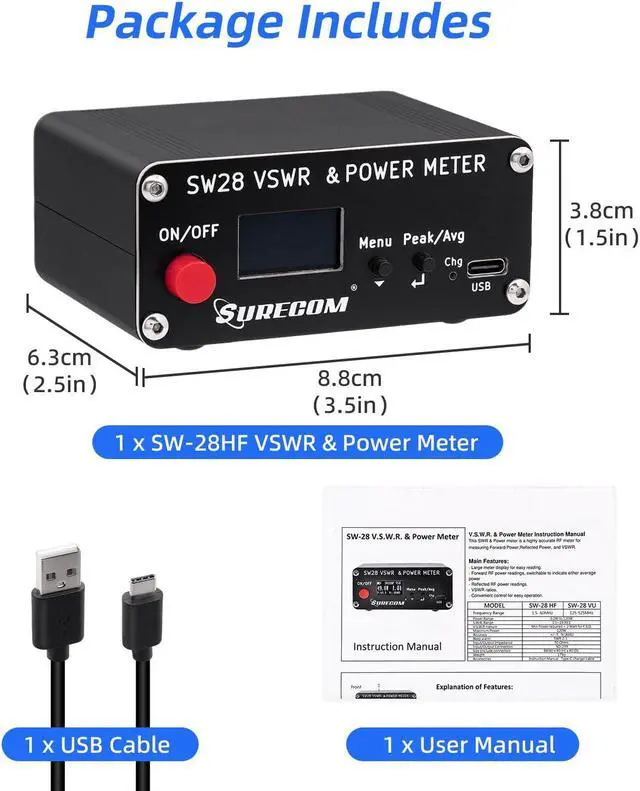

Package Included:
1 x Surecom SW-28HF 1.5 -60MHz 120W Mini
V. S. W. R. & Power Meter
1 x USB Cable ( 29.5 cm)
1 x Manual
This SWR & Power meter is a highly accurate RF meter for measuring Forward Power, Reflected Power, and VSWR.
Specifications
:-Frequency range: 1.5 -60MHz
-Power measurement range: 0.5W -120W
-Standing wave measurement range: 1.0 - 19.99
-Insertion loss: <0.12dB
-Insert standing wave: <=1.02
-Measurement accuracy: better than +-5%
-Standing wave alarm: >= 2.0 (with close function)
-RF interface type: SL16-M (default SO239)
-Display content: forward power; standing wave; antenna power; efficiency.
-Power supply: built-in rechargeable lithium battery or USB type-C
-Power off power consumption: <0.1uA
-Data communication: USB type-C
-Size: 88mm*38mm*64mm (excluding protruding parts)
NOTE:
FM or AM mode continuous transmission is recommended not to exceed 110W; SSB or CW can work under 200W for a long time; more than 500W will damage the detection components.
Simple introduction to use:
-Long press to switch the machine, short press to switch the display interface, double click to switch the standing wave alarm.
-There are 5 kinds of display interface in total, which are automatically saved and automatically recalled the next time you start up.
-The red light is displayed when charging, and the light is off when fully charged.
Package Included:
1 x Surecom SW-28HF 1.5 -60MHz 120W Mini
V. S. W. R. & Power Meter
1 x USB Cable ( 29.5 cm)
1 x Manual
