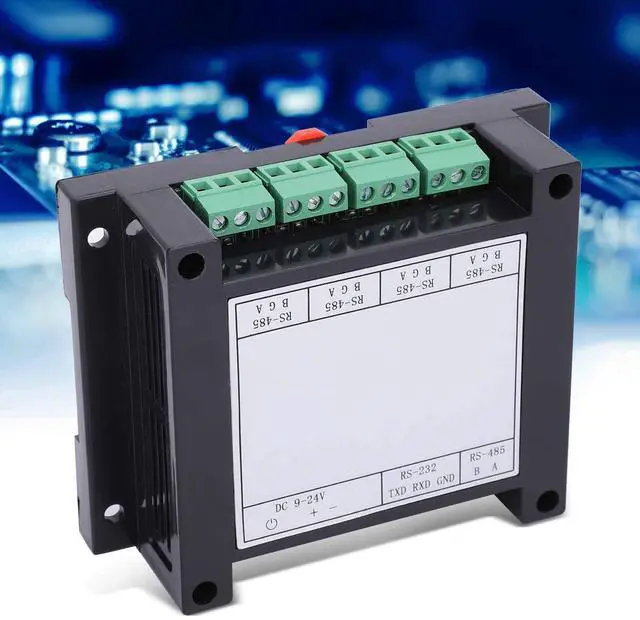

4-Channel Industrial Grade Repeater, 9-24V 0.5-1.2W RS485 Hub with Built-in DC/DC Isolated Power Supply Module Photoelectric Isolation Repeater for Long-Term Stable
- EXCELLENT PERFORMANCE: Industrial-grade design, complete communication isolation, and rate up to 115.2Kbps.

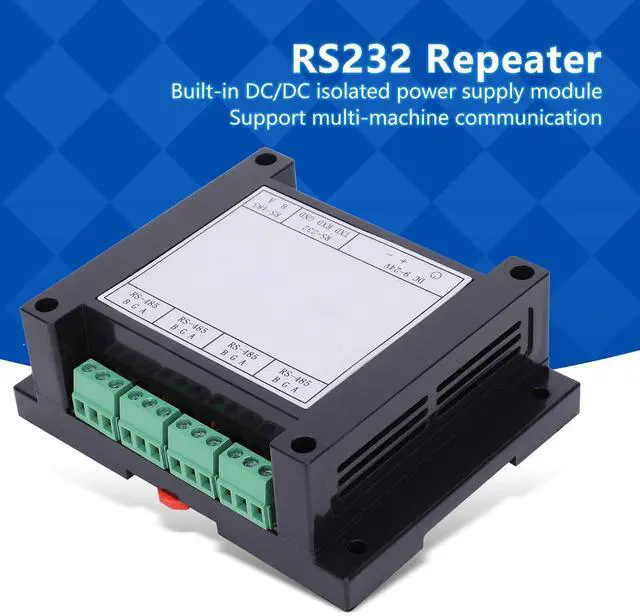

- ISOLATED POWER SUPPLY MODULE: Built-in DC/DC isolated power supply module to achieve electrical isolation between ports.
- SPECIFIC FEATURES: Support multi-machine communication, each channel can connect up to 128 nodes, and the longest distance is 2500 meters.
- AUTOMATICALLY IDENTIFY DATA : Data automatic control technology, automatically distinguish and control the data direction.
- MULTIPLE MEASURES: Plus or minus 15KV ESD , 600W dual-channel TVS 2.5KV communication isolation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Repeater
Compatibility: Compatible with RS-232, RS-485TIA/EIA standards
Working Voltage: DC: 9-24V
Rated Power: 0.5 - 1.2W

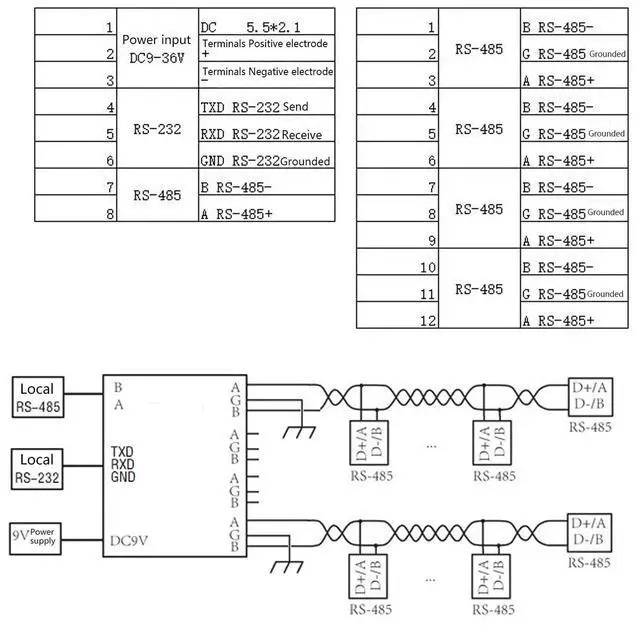

Input Interface: 1 RS-232/1 RS-485

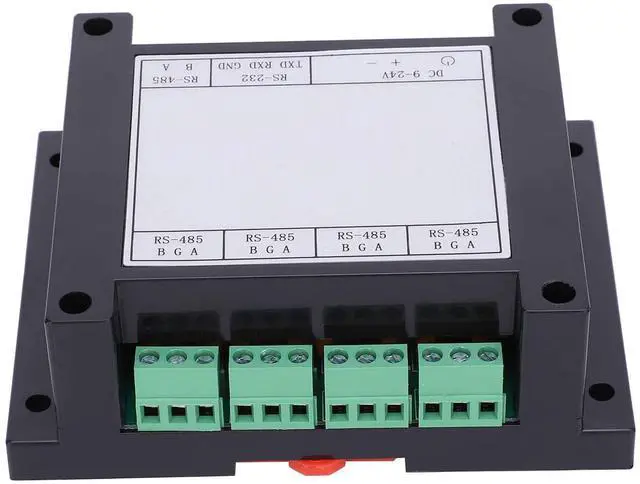

Output Interface: 4 RS-485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps- 115.2K bps

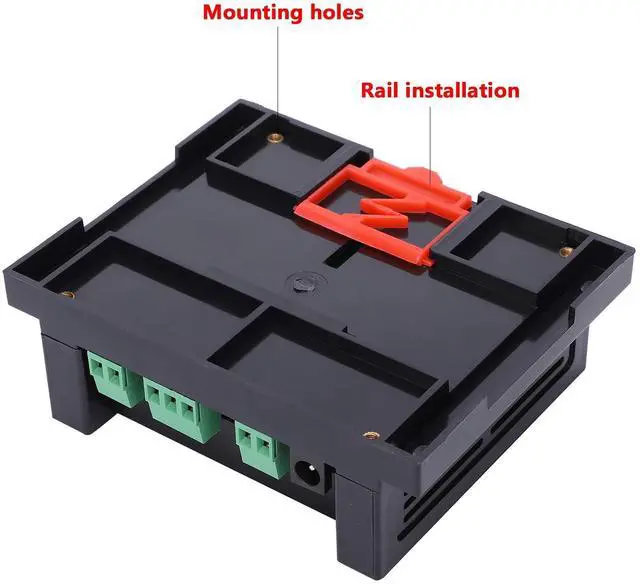

Installation Method: 35mm rail installation, 4-hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6 in
Working Environment: -30 to 70 relative humidity>95%RH
Package List:
1 x Repeater
Note:
The device is suitable for long-term stable operation under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device!
Item Type: Repeater
Compatibility: Compatible with RS-232, RS-485TIA/EIA standards
Working Voltage: DC: 9-24V
Rated Power: 0.5 - 1.2W
Input Interface: 1 RS-232/1 RS-485
Output Interface: 4 RS-485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps- 115.2K bps
Installation Method: 35mm rail installation, 4-hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6 in
Working Environment: -30 to 70 relative humidity>95%RH
Package List:
1 x Repeater
Note:
The device is suitable for long-term stable operation under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device!
