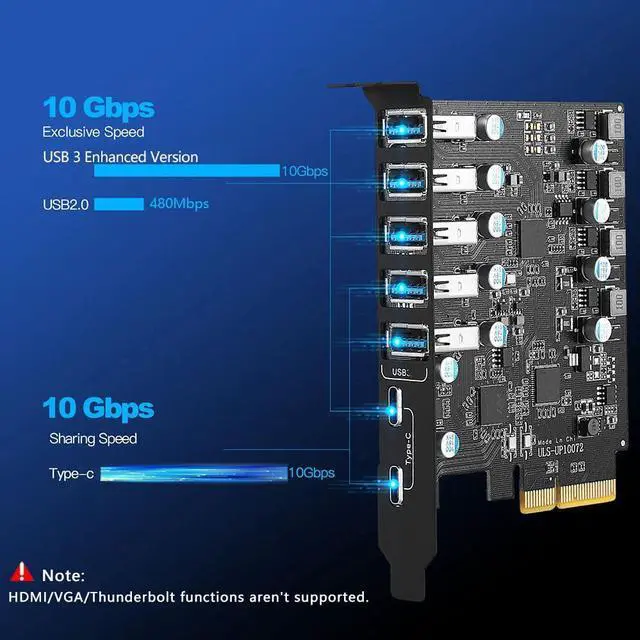

PCIe USB 3.2/3.1 Gen 2 Card USB 7-Ports (2X USB C - 5 USB A) Expansion Card with 10 Gbps USB C PC Card Internal USB Port Cards for Windows 10/8/7 and Mac OS 10.8.2 Above
- Big expansion: PCIe USB card to upgrade your computer to 7 USB ports (2 x USB C and 5 x USB A) in one step to solve the problem of fewer host USB ports and allow more USB devices to the computer system, such as keyboard, mic, printer, smartphones, game controller, digital cameras, etc.
- Super Speed USB Ports: the card has a transmission speed of up to 10 Gbps bandwidth, 2x faster than the old version of USB 3.0. Amazing transfer speed, most high-definition photos, duplicate videos, and any file can be transferred in seconds. Note: Doesn't support Thunderbolt protocol and monitor.
- Extensive Compatibility: USB ports compliant USB 3.1, USB 3.0 and USB 2.0 devices downwards. Supports PCIe 3.0 and PCI-e 2.0 motherboards, suitable for PCI Express X4 to X16 slots. The operating system is compatible with Windows 7/8/10 (32/64 bit), Mac OS 10.8.2 and above. (Windows XP/7 system needs to install the program from the CD). If the card doesn't recognize any drivers or does not work w
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This PCIe USB card can be easily connected to the motherboard via the PCI Express (X4) interface, thereby instantly adding 7 USB 3.2 / 3.1 gen 2 downstream ports to your PC. This means you can connect multiple USB devices to your PC effortlessly. It is specially manufactured to provide faster and higher data transmission rates for pc case, consumer electronics and communication equipment.
Basic Parameters:
Chipset: ASM3142+VL820
Expansion port: 2 USB Type C, 5 USB A
Host interface: PCI Express (PCI-E 3.0 / 2.0 )
USB-A port output: 5V, 0.9A
USB-C port output: 5V, 3A
Data transfer rate: 10 Gbps max
What's in the box:
1 x USB 3.2 / 3.1 Gen 2 Card
1 x CD driver
Note:
1. Don't install this USB PCIe card while the computer is powered on.
2. This card has no video signal. Monitor, DisplayPort/Thunderbolt protocols are not supported.
3. If the card doesn't work, first check the PCI-E slot on the motherboard for problems.
4. Only applicable to standard-size chassis/servers, not applicable to mini chassis/servers. The USB-A port is vertical. The vertical height is approximately 0.62 in. Please check the height of the expansion slot on the back of the computer host before choosing. For the USB A port it is recommended to: Take a USB cable (A end) and see if it will fit horizontally in the slot of your case. Then take the USB cable and insert it into the card so that it will center the ports.
5. The USB device/PCI-E slot version may have performance limitations on the throughput/performance of the card's data transfer speed.
6.
USB A-port Power Supply: 5V- 0.9A; USB-C port
Supply: 5V-3A, only for low-power USB devices.
7. If there are any problems with the installation of the PCIe card or system compatibility issues, Please contact our online support promptly.
Basic Parameters:
Chipset: ASM3142+VL820
Expansion port: 2 USB Type C, 5 USB A
Host interface: PCI Express (PCI-E 3.0 / 2.0 )
USB-A port output: 5V, 0.9A
USB-C port output: 5V, 3A
Data transfer rate: 10 Gbps max
What's in the box:
1 x USB 3.2 / 3.1 Gen 2 Card
1 x CD driver
Note:
1. Don't install this USB PCIe card while the computer is powered on.
2. This card has no video signal. Monitor, DisplayPort/Thunderbolt protocols are not supported.
3. If the card doesn't work, first check the PCI-E slot on the motherboard for problems.
4. Only applicable to standard-size chassis/servers, not applicable to mini chassis/servers. The USB-A port is vertical. The vertical height is approximately 0.62 in. Please check the height of the expansion slot on the back of the computer host before choosing. For the USB A port it is recommended to: Take a USB cable (A end) and see if it will fit horizontally in the slot of your case. Then take the USB cable and insert it into the card so that it will center the ports.
5. The USB device/PCI-E slot version may have performance limitations on the throughput/performance of the card's data transfer speed.
6.
USB A-port Power Supply: 5V- 0.9A; USB-C port
Supply: 5V-3A, only for low-power USB devices.
7. If there are any problems with the installation of the PCIe card or system compatibility issues, Please contact our online support promptly.
