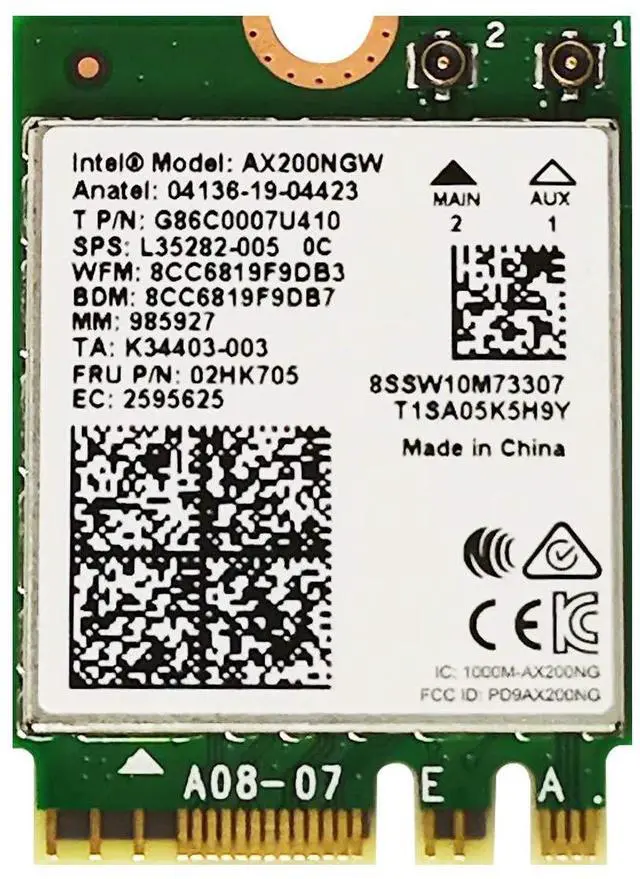

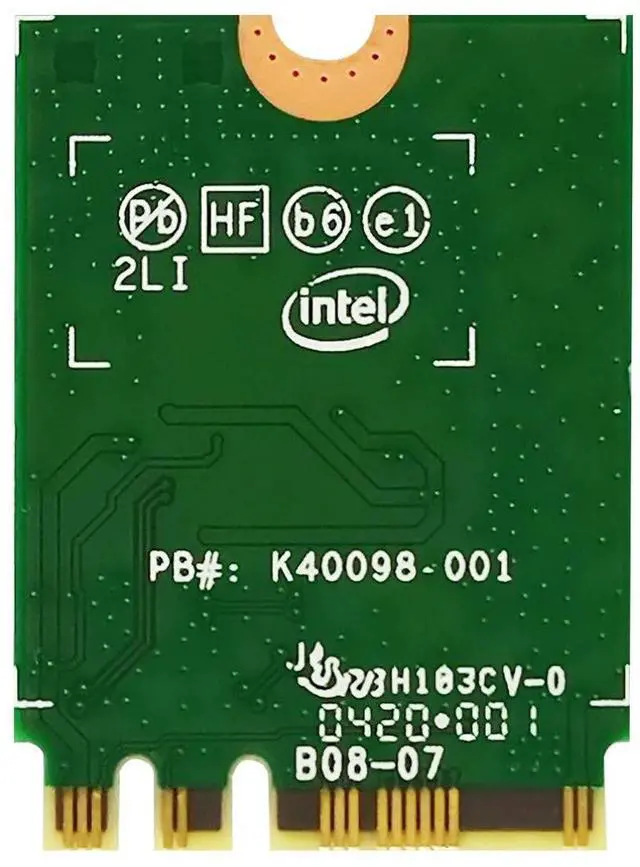

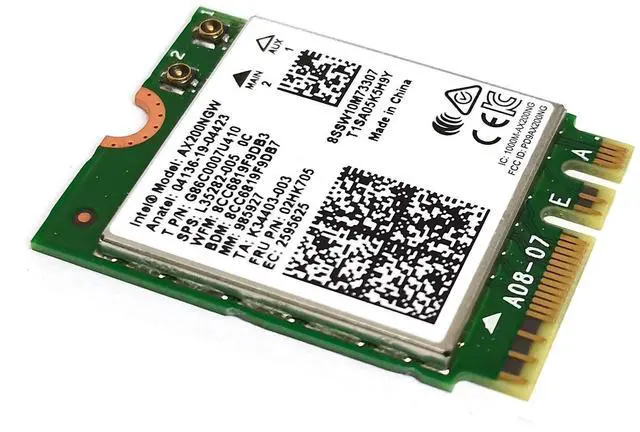

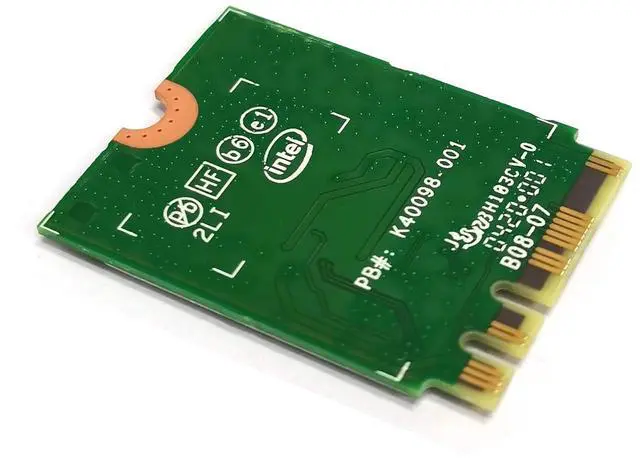

POINWER WiFi 6 Intel AX200 Up to 2974Mbps with Bluetooth 5.1 Wireles M.2 2.4G/5Ghz Card for Laptop PC with Windows 64 bit - Intel Model AX200NGW

Features and AdvantageThis 11ax module adopts Intel AX200 chipset, it supports 2x2 Wi-Fi 6 technology, 2402Mbps at 5GHz and 574Mbps at 2.4GH z, including new features such as UL and DL OFDMA and 1024QAM, 160MHz channels, Target Wake Time and spatial reuse, can deliver nearly 40% higher peak data rates and up to 4X capacity improvement in dense or congested environment. This Module works with all brand's Wi-Fi routers for smooth HD video, voice streaming and high speed download. It also offers a secure connection and is backward compatible with 802.11 n and 802.11 ac.

Download the
Driver & Documents:
https: //downloadcenter. intel.
com/product/189347/Intel-Wi-Fi-6-AX200SpecificationsModel: Intel WiFi 6 AX200NGW
Connector interface: M. 2 2230 or M. 2 1216 (Not for (M2: CNVi))System
Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4
ConnectorWireless data rate: 5GHz up to 1730Mbps (You router must support 802.11AX ) 2.4GH z up to 574Mbps (160MHz)
Max speed: If your router support 802.11AX, the max speed can up to 2.4G bpsStreams:
2X2Bluetooth: Bluetooth 5.1A ntenna
Diversity:
SupportedMU-MIMO:
YesFrequency: Dual Band 2.4 /5GHzIEEE
WLAN Standard: IEEE 802.11 a/b/g/n/ac, 802.11 d, 802.11 e, 802.11 h, 802.11 i, 802.11 w, 802.11 r, 802.11 k, 802.11 vWi-Fi
CERTIFIED*: 802.11 axOperating
Systems: Windows 10 32/64-bit (NOt support Windows 7/8/ 8.1 )Dimension (H x W x
D): 22 x 30 x 2.4 mmPackage
Includes: 1x AX200NGW M2 NGFF WLAN Card1x Screws1x Holder BracketTIPs: 1. The laptop wifi card should be used in Laptops with an M. 2 slot ( Key A or E ) or desktop with an M. 2 slot printed with ""WiFi""2. Use only on Intel based systems that are running Win10 64-bit. Do not use on a motherboard contains an Intel 9560 CNVi module, NOT for AMD Platform. 3. This module DOES NOT include Antenna. Laptop users can use its own antenna.
