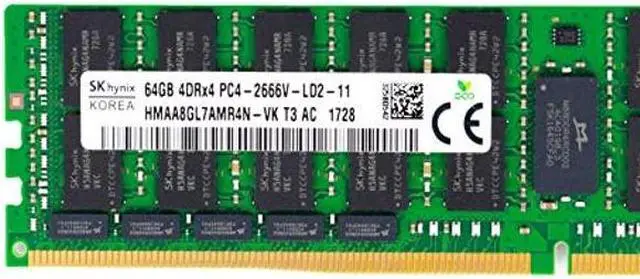

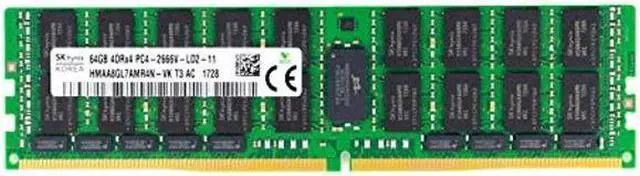

SK hynix 64GB/4Gx4 DDR4 2666MHz ECC/REG Load Reduced CL 19 Server Memory HMAA8GL7AMR4N-VK
- Memory Size: 64 GB
- Memory Technology: DDR4 SDRAM
- Memory Voltage: 1.20 V
- Number of Modules: 1 x 64GB
- Memory Speed: 2666 MHz
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Manufacturer: HYNIX - IMSOURCING.
Manufacturer Part Number: HMAA8GL7AMR4N-VK.
Brand Name: HYNIX - IMSOURCING.
Product Series: SK.
Product Name: SK 64GB DDR4 SDRAM Memory Module.
Packaged Quantity:
1.
Product Type: RAM Module.
[Technical Information] Memory Size: 64 GB.
Memory Technology: DDR4 SDRAM.
Memory Voltage: 1.20 V.
Number of Modules: 1 x 64GB.
Memory Speed: 2666 MHz.
Memory Standard: DDR4-2666/PC4-21300.
Error Checking: ECC.
Signal Processing: Registered.
CAS Latency: CL19.
Device Supported: Server. Workstation. [Physical Characteristics] Number of
Pins: 288-pin.
Form Factor: LRDIMM.
Thickness: 156.7 mil.
Width: 1.2".
Length: 5.3".
Weight (Approximate): 1.60 oz.
[Miscellaneous] Environmentally Friendly: Yes.
Environmental Certification: RoHS. ECO.
Manufacturer Part Number: HMAA8GL7AMR4N-VK.
Brand Name: HYNIX - IMSOURCING.
Product Series: SK.
Product Name: SK 64GB DDR4 SDRAM Memory Module.
Packaged Quantity:
1.
Product Type: RAM Module.
[Technical Information] Memory Size: 64 GB.
Memory Technology: DDR4 SDRAM.
Memory Voltage: 1.20 V.
Number of Modules: 1 x 64GB.
Memory Speed: 2666 MHz.
Memory Standard: DDR4-2666/PC4-21300.
Error Checking: ECC.
Signal Processing: Registered.
CAS Latency: CL19.
Device Supported: Server. Workstation. [Physical Characteristics] Number of
Pins: 288-pin.
Form Factor: LRDIMM.
Thickness: 156.7 mil.
Width: 1.2".
Length: 5.3".
Weight (Approximate): 1.60 oz.
[Miscellaneous] Environmentally Friendly: Yes.
Environmental Certification: RoHS. ECO.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by A-Tech Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The SK hynix HMAA8GL7AMR4N-VK is a single 64GB DDR4-2666 ECC registered LRDIMM server memory module, suited to compatible servers and workstations that need high-capacity memory with error checking.
Recommended For
- Server administrators expanding memory in a DDR4 system whose documentation explicitly supports 64GB ECC LRDIMMs; check the server’s memory population rules and compatibility list before buying.
- Homelab builders running a compatible server who need high capacity per DIMM for virtual machines, containers, or several memory-heavy services on one host.
- Operators maintaining an existing DDR4 server who need an ECC LRDIMM replacement or matching-capacity expansion and can verify the exact module type against the system’s supported memory.
- Research or workstation teams using a platform validated for this specific 64GB DDR4 LRDIMM and needing more memory capacity for sustained, memory-intensive workloads.
Real-World Use Scenarios
- On a compatible DDR4 server running several virtual machines, adding this LRDIMM can increase available memory for guests and reduce pressure to reclaim or swap memory when the workload is RAM-constrained.
- For a database server whose working set is outgrowing installed memory, adding compatible LRDIMMs can make room for a larger in-memory working set or cache, reducing reliance on slower storage access when the workload fits in the added RAM.
- When consolidating application services onto a supported server, this 64GB module can contribute to a higher memory ceiling, allowing more services or larger workloads to share the host before memory capacity becomes the limiting factor.
- For memory-heavy scientific or high-performance computing jobs, adding capacity in a compatible server can help keep more of a dataset or active workload in RAM; the practical benefit depends on whether the job was previously limited by memory capacity.
- When upgrading an existing DDR4 server, an administrator can use the module to add memory without replacing the platform, provided the server supports 64GB ECC LRDIMMs at the required rank and speed; check the server’s memory list because LRDIMMs are not interchangeable with every DDR4 memory type.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server systems requiring a 64GB DDR4 ECC registered load-reduced memory module |
