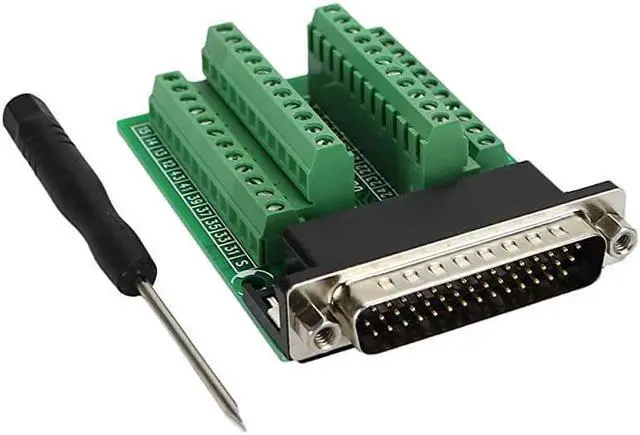

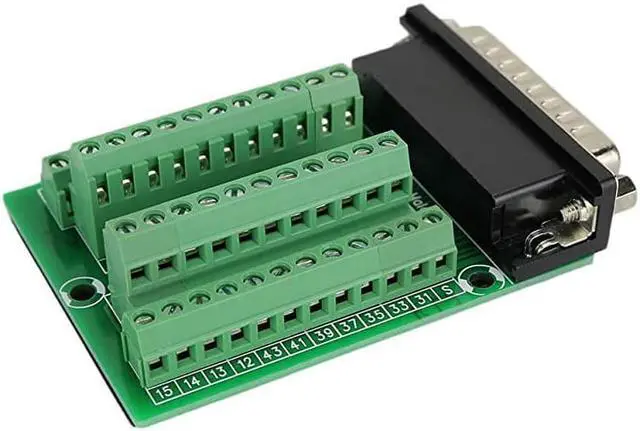

Bay DB44 Male Connector to Terminal Block DSUB HDB44 Breakout Board Signal Module
Limited time offer, ends 06/03 By Electronics store
- *****
- **********
- ***** *****
- *****Best Quality Guranteed.*****

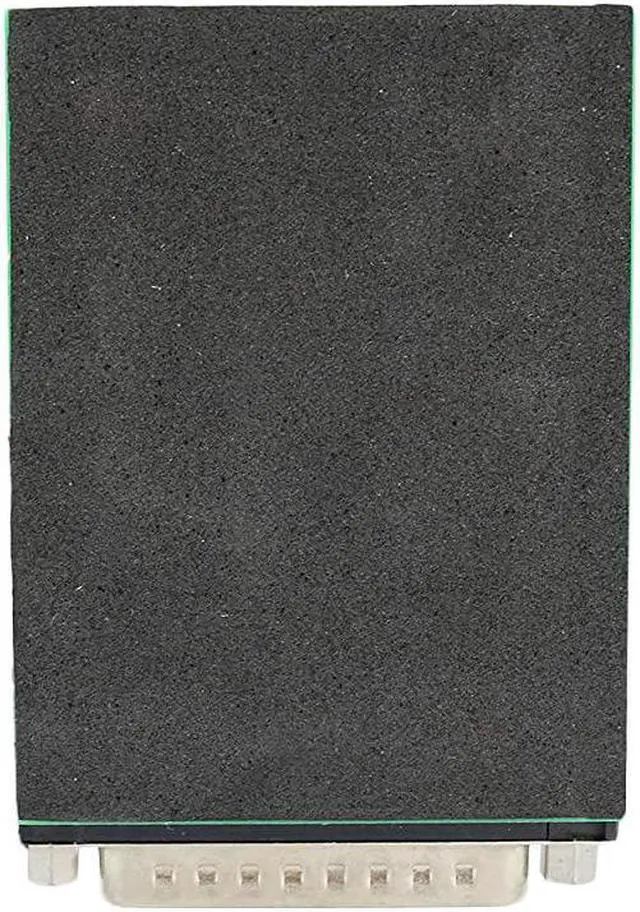

- *****With insulation foam at the bottom*****
- *****All-copper base, contacted better and more antioxidative*****

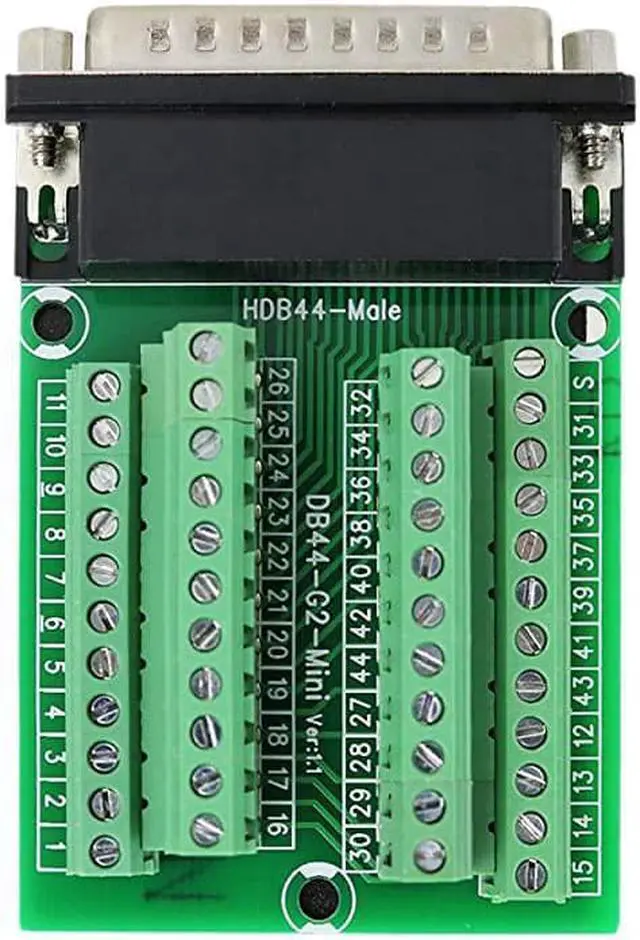

- *****All signal ports named and labeled clearly*****
- *****High quality PCB carrier, FR-4 fiber glass PCB.*****
- *****Compliant assembly, 100% new, quality multiple checked before fulfilled.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This item has been assembled, and electrical test passed.
Net weight: 1.99 oz / 56.5 g
Dimension (L x W x H): 3.1 x 2.1 x 0.7" / 78 x 53 x 18mm
Terminal block diameter: 0.08
'' / 2mmPitch: 0.15 '' / 3.81 mm
Wire range: 24-16AWG
Rated current: 0.5A / per pin
Rated voltage: 100VOperating
Temperature: -10C
to 70Cambient humidity: 10% to 90% RH, non-condensingTorque: 0.2N m ( 1.7L b-In.
)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass
Package included: 1 x DB44 male connector to terminal block 1x Slotted screwdriver
Net weight: 1.99 oz / 56.5 g
Dimension (L x W x H): 3.1 x 2.1 x 0.7" / 78 x 53 x 18mm
Terminal block diameter: 0.08
'' / 2mmPitch: 0.15 '' / 3.81 mm
Wire range: 24-16AWG
Rated current: 0.5A / per pin
Rated voltage: 100VOperating
Temperature: -10C
to 70Cambient humidity: 10% to 90% RH, non-condensingTorque: 0.2N m ( 1.7L b-In.
)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass
Package included: 1 x DB44 male connector to terminal block 1x Slotted screwdriver
