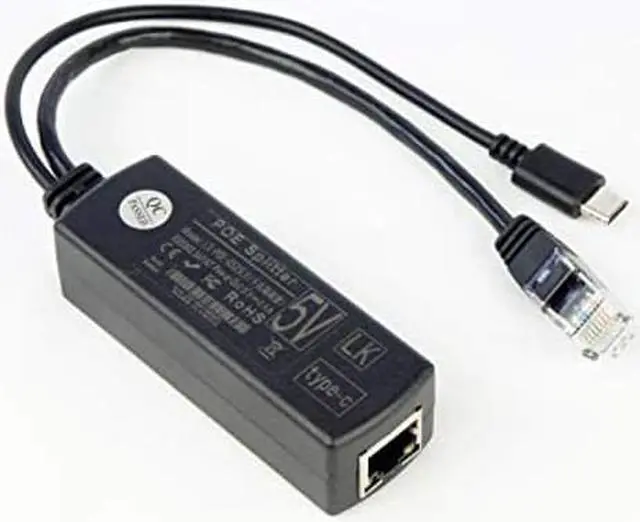

Gigabit USB Type C Active PoE Splitter 48V to 5V IEEE802.3af Power Over Ethernet for Raspberry Pi 4 4B
Limited time offer, ends 07/24 By Electronics store
- The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation
+
+
Overview
Specs
Reviews
Note: The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

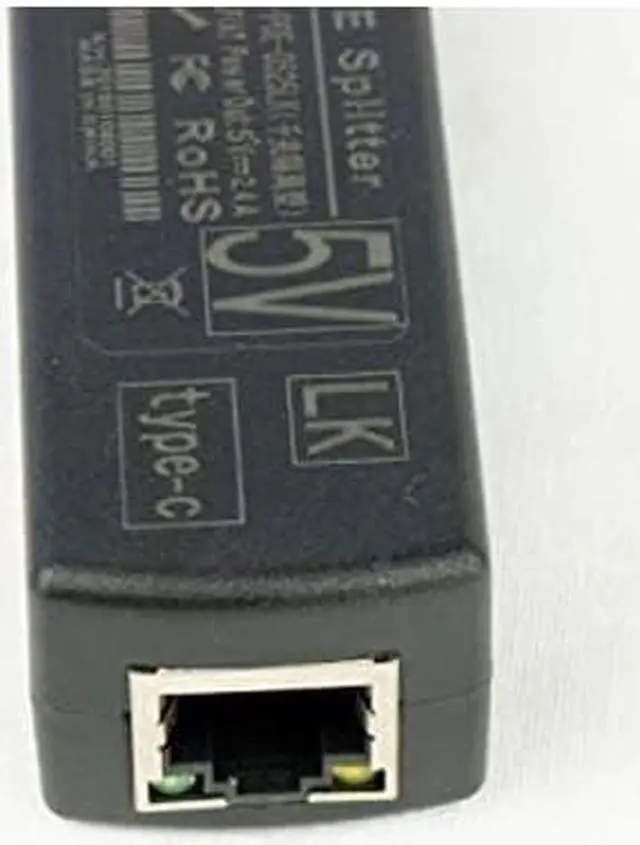

RJ45 female INPUT Port: Support the IEEE 802.3 af/at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet
PoE Adapter Specification: Compliant with IEEE 802.3 af/at
Isolation: 2.5 kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE 802.3 af/at PoE) Data

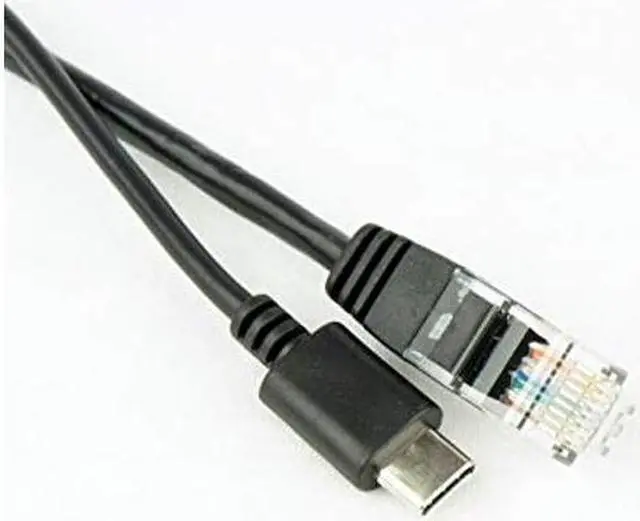

Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug Data Transfer Rate: 10/100/1000
Mbps Data Pin: RJ45 pin 12345678 Devices will be detected before poe input
Power Pin: support both 1/2(+/-), 3/6(-/+) or 4/5(+), 7/8(-)
Body size: 80 x 27x 22 mm
DC cable length: 165mm
RJ45 Modular Plug cable length: 155mm
Weight: 55g
Operation Temperatue: -20 ~ 45
Storage Temperature: -30 ~ 70
Item Included: 10/100/1000Mbps Active PoE Splitter(USB type-C Power Plug) x1
RJ45 female INPUT Port: Support the IEEE 802.3 af/at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet
PoE Adapter Specification: Compliant with IEEE 802.3 af/at
Isolation: 2.5 kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE 802.3 af/at PoE) Data
Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug Data Transfer Rate: 10/100/1000
Mbps Data Pin: RJ45 pin 12345678 Devices will be detected before poe input
Power Pin: support both 1/2(+/-), 3/6(-/+) or 4/5(+), 7/8(-)
Body size: 80 x 27x 22 mm
DC cable length: 165mm
RJ45 Modular Plug cable length: 155mm
Weight: 55g
Operation Temperatue: -20 ~ 45
Storage Temperature: -30 ~ 70
Item Included: 10/100/1000Mbps Active PoE Splitter(USB type-C Power Plug) x1
