BUCIER 12V 4Pin PWM & 5V 3Pin ARGB with SATA 15Pin Power 2-in-1 Hub 6 Way Sync CPU Cooling Fan Addressable RGB Lighting PCB Splitter for Extended Motherboard Interface -Black Compatible With Desktop

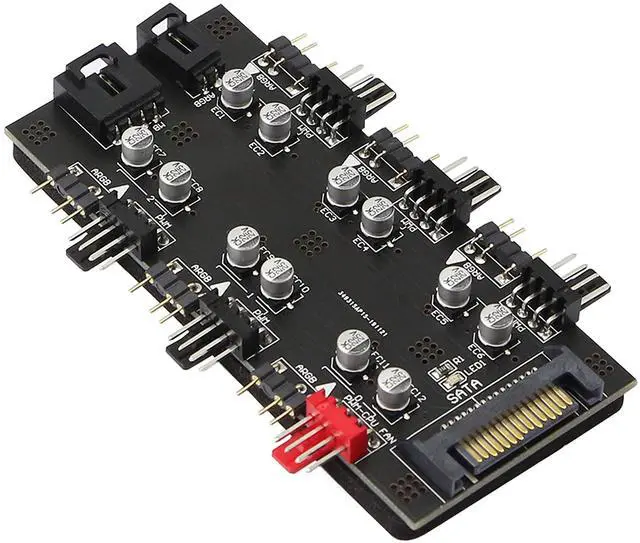

This is a PWM ARGB 2-in-1 6 channel hub with SATA 15Pin power supply that can supply power to the fan and ARGB at the same time. 6-channel 12V 4Pin PWM interface and 6-channel 5V 3Pin ARGB interface start at the same time, centralized control and speed regulation. Extend the motherboard interface of the chassis to solve the problem of insufficient motherboard interfaces. It is widely used in PC computer water cooling systems and multiple RGB lighting controls. Supports PWM function and automatic fan speed adjustment. The package contains 2 connecting wires, both the length of which is 53CM, and the connecting wires are automatically locked with the hub plate socket, so that the connection is tight and does not fall off.

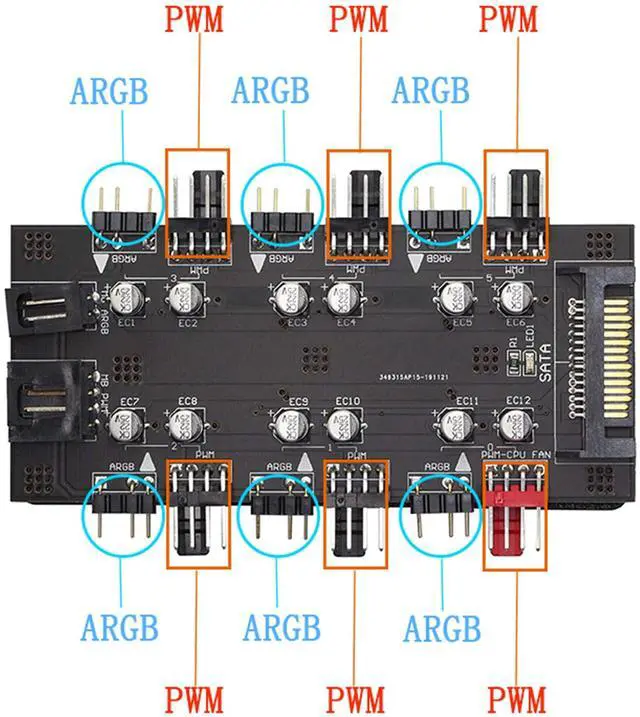

Features:*The main board ARGB (3PIN) lighting control interface can be expanded to 6 to centrally control multiple RGB lighting devices*The motherboard PWM speed control interface can be expanded to 6, and the PWM speed control of multiple 12V 4PIN fans can be concentrated

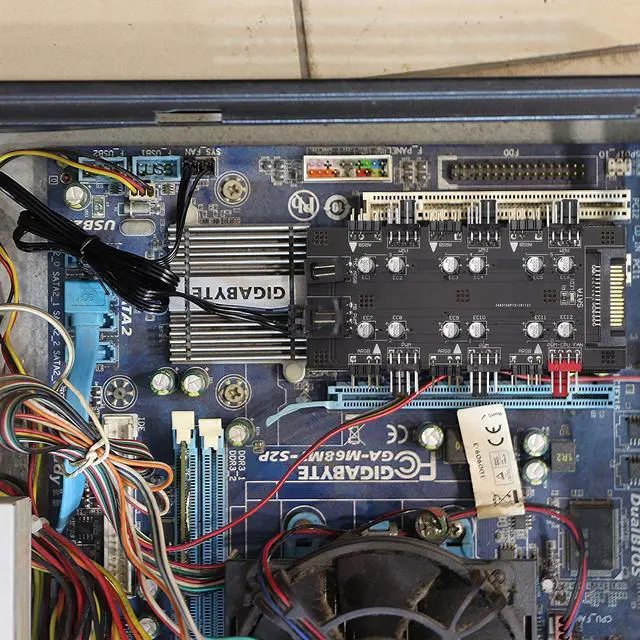

Installation introduction:1.Suitable for 12V 4PIN fan PWM speed regulation (3PIN fans can also be connected, but no PWM speed regulation function)2.Insert the SATA interface of the computer motherboard power supply into the SATA power supply interface of the extender3.The PWM cable is connected to the CPU fan socket of the motherboard. The computer CPU fan must be connected to the red 4PIN fan socket of the extender4.Connect the ARGB cable to the motherboard. please insert the 5V ARGB 3PIN port on the cable into the corresponding socket of the motherboard; if it is a Gigabyte motherboard, please insert the 3PIN port on the cable into the motherboard. if the motherboard does not support the light synchronization, you can also connect the 5V ARGB 3PIN port of the cable to the RGB LED Symphony Controller to control the light.

Additional Features

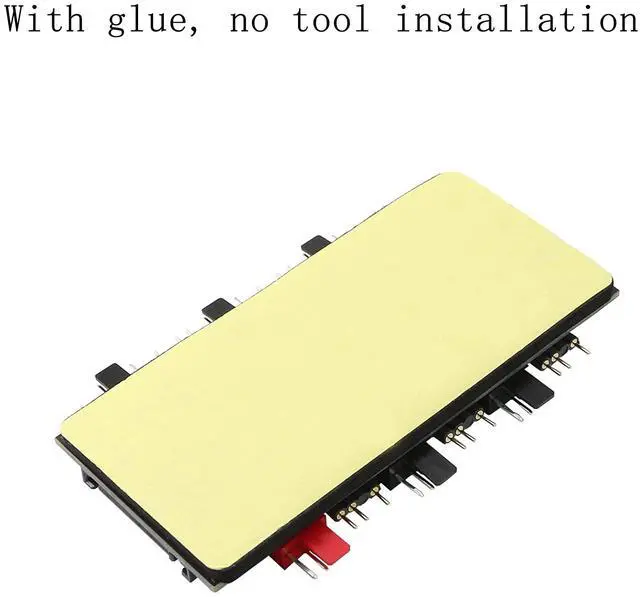

• The black hub is perfectly integrated with chassis. Mini and compact, which effectively saves your space, makes cable management easier, and the inside of the chassis is tidy. The adhesive on the back can be used to fix the hub in the chassis, tool-free installation, and not easy to drop.

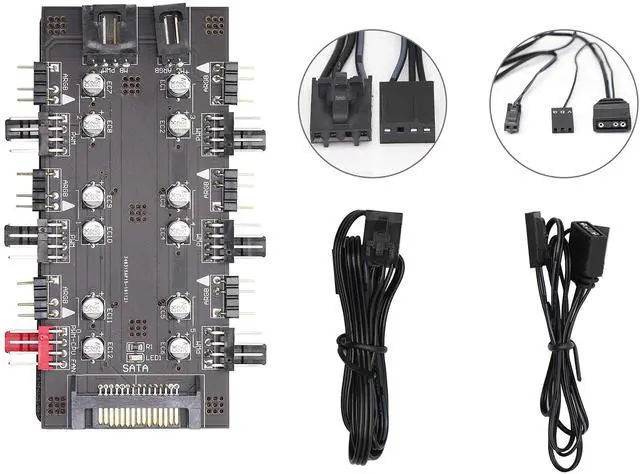

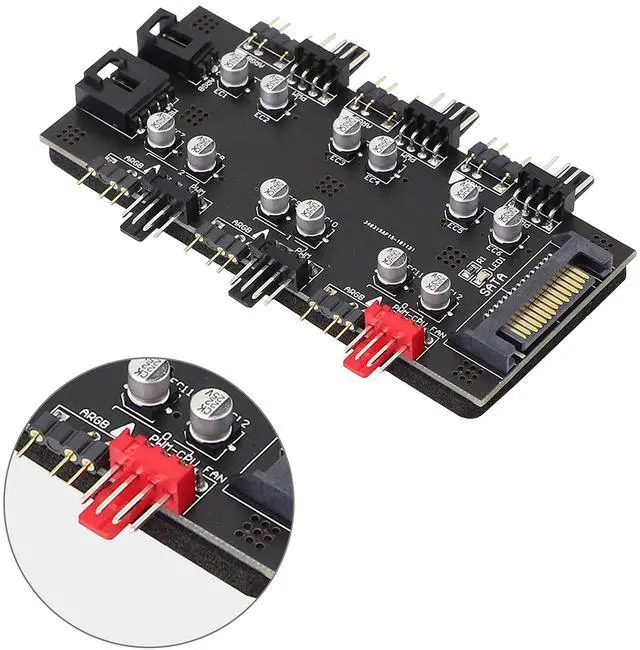

• The PWM ARGB hub is equipped with two connecting cables. Both length of the wires is 53 cm. The red port on the hub is a professional port for the CPU fan. Gold-plated pins, solid materials, strong and durable.
