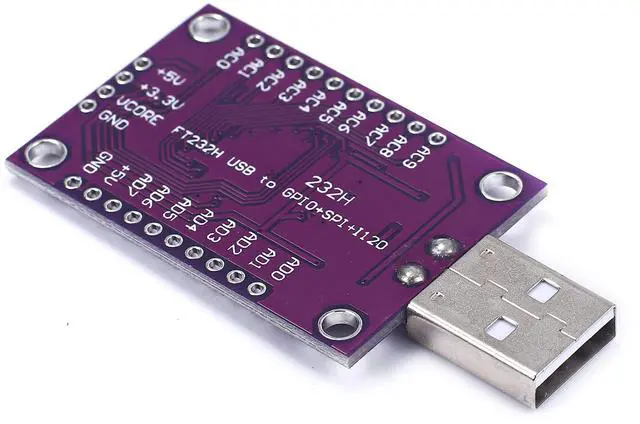

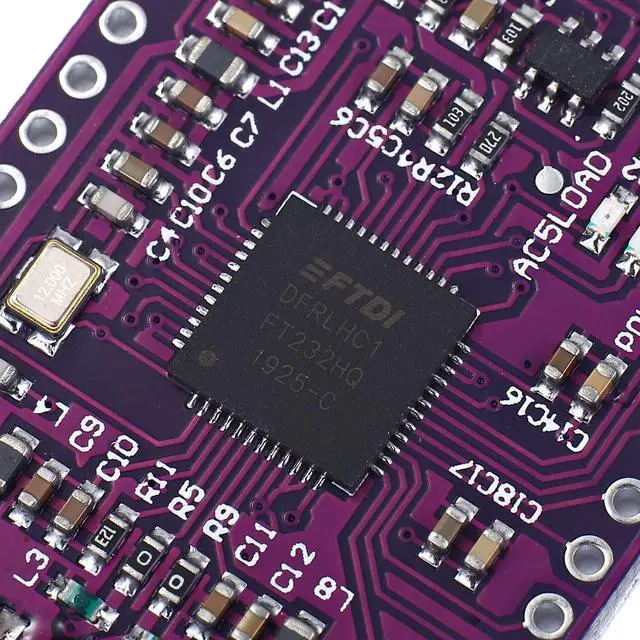

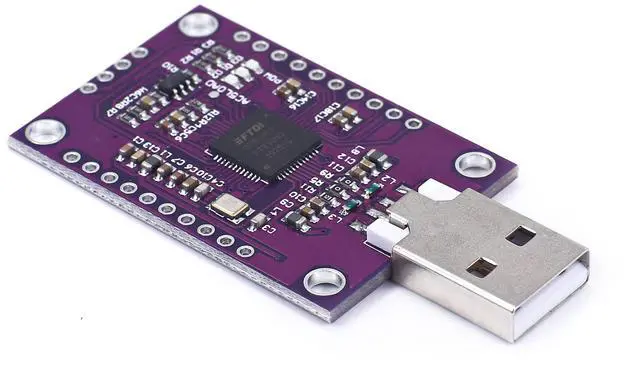

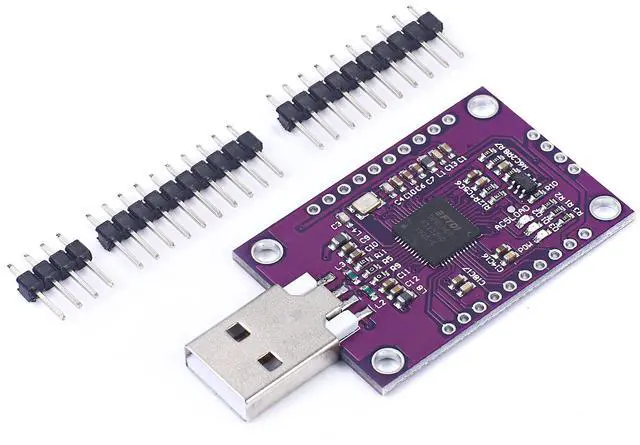

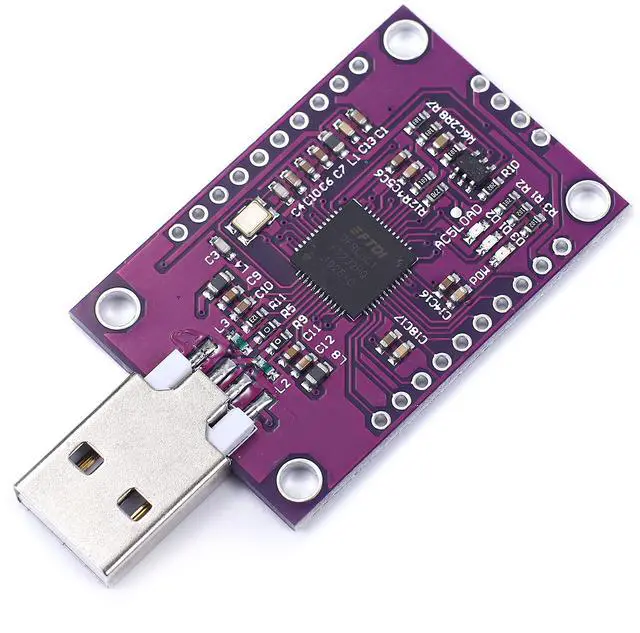

BUCIER FT232H USB to JTAG High-Speed Multifunction Serial Port Module SPI/I2C UART/FIFO SPI/I2C
- Working voltage: 3.3V-5V
- Working environment temperature: -40~85degree
- Supports bus-powered, self-powered and high-power bus-powered USB configurations +1.8V (chip core) and +3.3VI/O interface (+5V withstand voltage)
- Support USB bulk data transfer mode (512-byte packets in high-speed mode) UART transfer data rate up to 12 megabaud (baud). (PS232 data rate limit is determined by external level shifter), UART interface supports 7 or 8 bit data bits, 1 or 2 stop bits and odd/even/marker/space/no parity
- Use external EEPROM to save operating mode configuration and USB description string configuration data via USB interface
- Automatic transmission enable control for RS485 serial applications using the TXDEN pin
- Compatible with UHCI/OHCI/EHCI host controller; compatible with USB2.0 high speed 480Mbps and full speed 12Mpbs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB to asynchronous 245 FIFO mode, transfer data rate up to 8 megabytes per second USB to synchronous 245 parallel FIFO mode, transfer rate up to 40 megabytes per second Supports half-duplex, bidirectional data bus, configurable width (1, 2, 4 or 8 bit wide) FT1248 interface Configurable I/O drive strength (4, 8, 12 or 16 mA) and slew rate Complete hardware grip or X-On/X-Off software Bit-bang with RD# and WR# control signal options; options for LED drive signals when transmitting and receiving Typical Applications
