BUCIER M.2 NGFF SSD to 2.5" sata III ssd Drives, Connector Converter Expansion Card for SATA III, Supports M.2 NGFF SATA 2280, 2260, 2242, 2230
- "ONLY SUPPORTS" M.2 NGFF (SATA Channel) B key M.2 SSD with Open Frame Housing supports 7mm or larger 2.5" SATA bays, and supports SATA I/II/III.
- HIGHT SPEED SATA Converter Maximize system speed by adding M.2 SSD performance.
- HEAT DISSIPATION SSD to 2.5in SATA Adapter with 2.5in SATA form factor housing and open-frame steel mounting bracket to help maximize heat dissipation.
- SUPPORTS full length M.2 NGFF SSDs (2230, 2242, 2260, 2280) / M.2 SSD to SATA Adapter / M.2 NGFF SSD to SATA Adapter for 2.5" Drive Bay / M.2 SSD to SATA Converter.

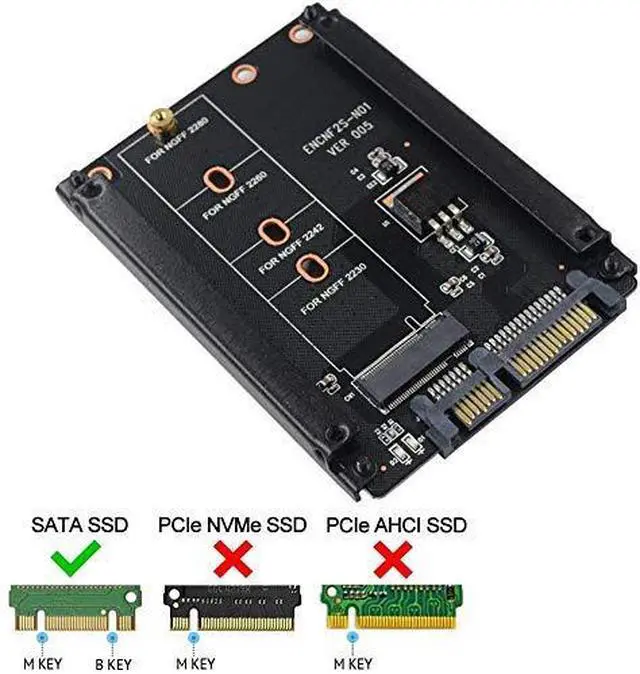

- Please Check Your M.2 SSD is SATA Channel or PCI-E Channel on it's Brand Website Before Ordering.Support All Size 22*30/22*42/22*60/22*80mm M.2 NGFF(SATA) SSD, DO NOT support PCI-E based B key & any M key M.2 SSD .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
CONNECTOR
1x B-key M.2 socket for M.2 NGFF SATA SSD
1 x SATA Data & Power (7+15 pins) Receptacle
DATA TRANSFER RATE
Up to 6 GBps (SATA III)
SOFTWARE
OS independent; No driver installation required
Support Windows, Macs, and Linux
OTHER SPECIFICATIONS
Convert M.2 NGFF SATA based SSD to standard 2.5 SATA drive Form Factor
Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
100% Compatible with 2.5 SATA drive mechanical spec
M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application.
SSD & PCBA power from SATA 5V input
Provides M.2 SSD Max 3.3V/3A power source
INCLUDES
2.5 drive metal frame
- Dimension of PCBA with 2.5 frame: 100.45mm x 69.85mm x 7mm

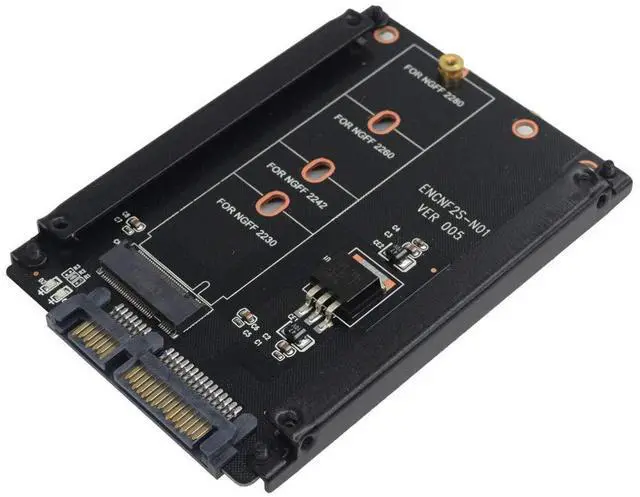

Movable M.2 NGFF stand-o and multiple plated-holes supports type 2280, 2260, 2242, 2230 SSD
22 pin SATA (Signals and Power) male connector on board
Mounting screw set (1x SSD latch screw)
(Note: This item can not t with PCIe NVMe/PCIe AHCI M.2 internal SSD with M key).
