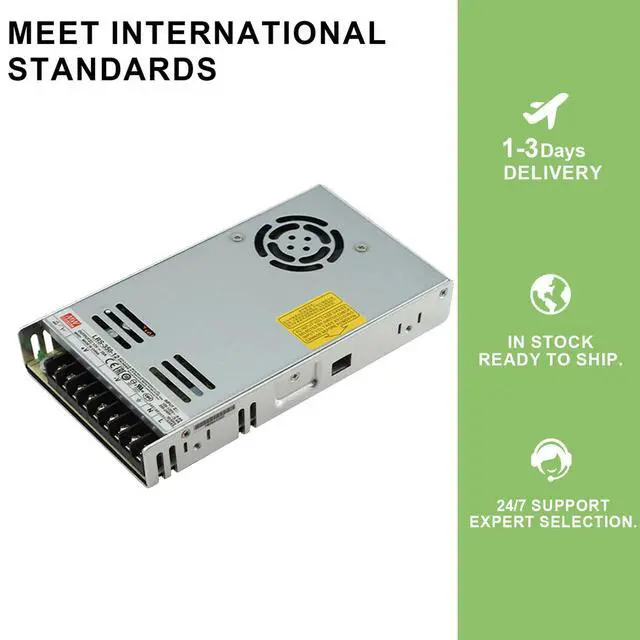

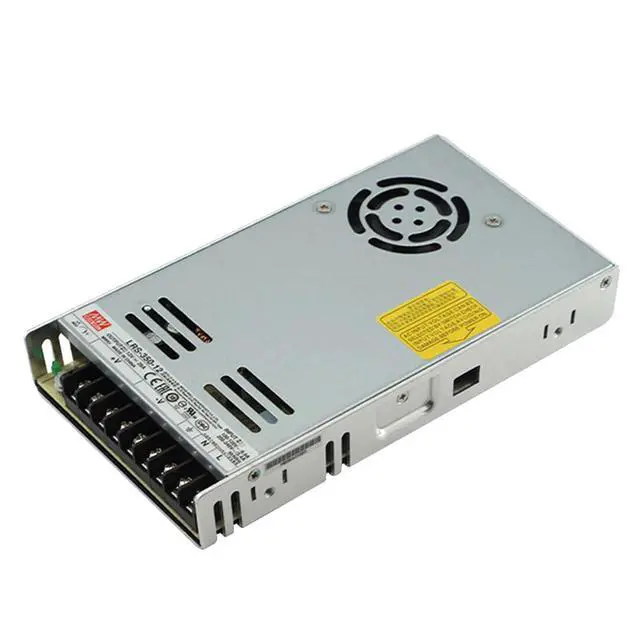

The MEAN WELL LRS-350-12 is a reliable and efficient 350W single-output AC-DC switching power supply that provides a stable 12V DC output with a current rating of 29A. This power supply is designed to meet the demanding needs of various industrial applications, ensuring exceptional performance and longevity.
Key Features: Universal AC input / Full range AC input range selectable by switch Withstand 300VAC surge input for 5 seconds

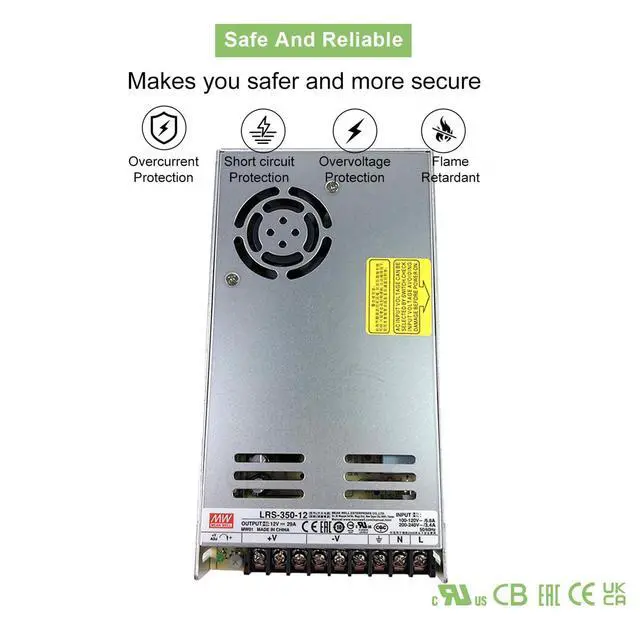

Protections: Short circuit / Overload / Over voltage / Over temperature Built-in DC fan forced air cooling Forced air cooling with fan ON/OFF control 1U low profile Withstand 5G vibration test LED indicator for power on No load power consumption < 0.75W 100% full load burn-in test High operating temperature up to 70 High efficiency, long life and high reliability 3 years warranty
Applications: Industrial automation machinery Industrial control systems Mechanical and electrical equipment Electronic instruments, devices, and apparatus Household appliances

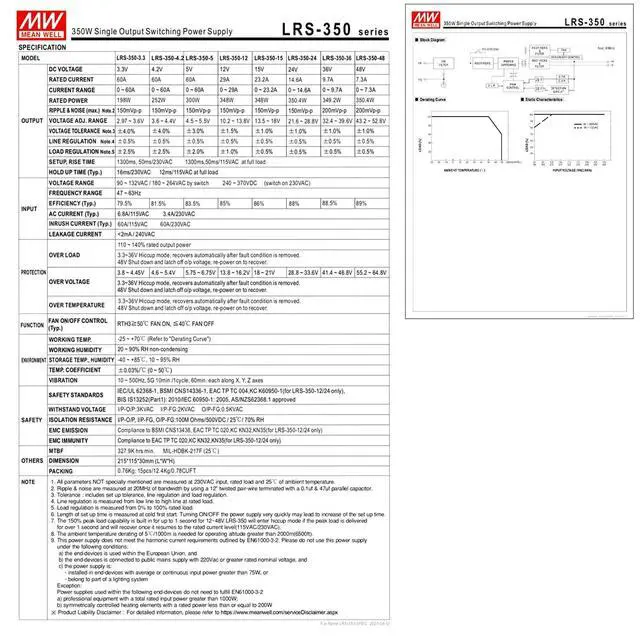

Specifications
: Input
voltage: 90-132VAC/180-264VAC (selectable by switch)
Output voltage: 12V DC
Output current: 29A
Output power: 350W
Efficiency: 84%
Operating temperature: -13 to 158

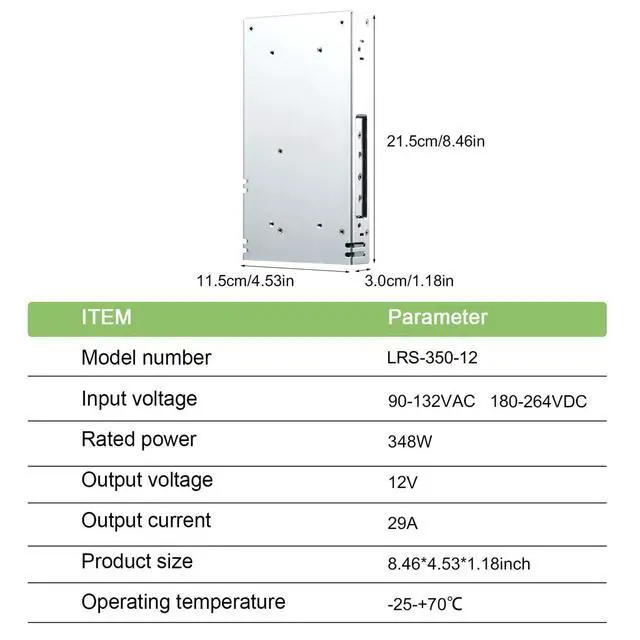

Dimensions: 8.46" x 4.52" x 1.18"
Weight: 1.67 lbs The LRS-350-12 is equipped with multiple protection mechanisms, including short circuit, overload, overvoltage, and overtemperature protection, ensuring the safety of both the power supply and connected equipment. Its high efficiency and low no-load power consumption make it an energy-efficient choice, reducing energy waste and operating costs. This power supply is built to withstand harsh industrial environments, featuring a wide operating temperature range and 5G vibration resistance. Its compact size and 1U low profile design allow for easy integration into various systems, while its built-in DC fan ensures efficient heat dissipation. The FerroFab LRS-350-12 is a reliable and efficient power solution for a wide range of industrial applications, offering stable performance, comprehensive protection, and ease of installation.
