ElecGear Hall Joystick Kit Replacement for Universal Controllers, 2x Hall Effect Control Stick + 2x Calibration PCB + Desoldering Repair Tools for Analog Stick Thumbsticks - HL-UniA
- [2x Hall Joysticks for Universal Controller] - This UniA kit is to replace the normal analog stick with hall joystick for wireless and wired USB controllers. The hall sensor delivers higher sensitivity and accuracy. No more wear of traditional carbon film resistor, say goodbye to drifting. (Before ordering, make sure you follow the steps presented on the 2nd image. This UniA fits normal analog sticks measured 19.0 mm on the image. While UniB is for 20.2 mm sticks.)
- [2x Added-on Calibration PCB] - Two options to install the PCB. Stack on the back of main board, or house it at a free position and link individual wires remotely if there's some interference in the structure. The hall signal inputs to the MCU, the calibrated signal outputs to the main board. Connect the controller to a PC with a USB cable. You can fine reset the center and trim the curve on a web link
- [Attention] - 1.It takes serious electronic know-how and soldering skills. Not for newbies. 2.Carefully
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: HL-UniA
This UniA version of Repair kit was rated 10 difficulty. Not for beginners

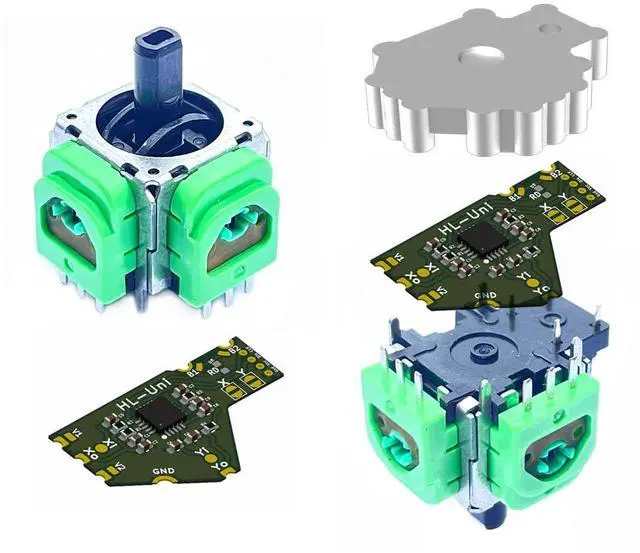

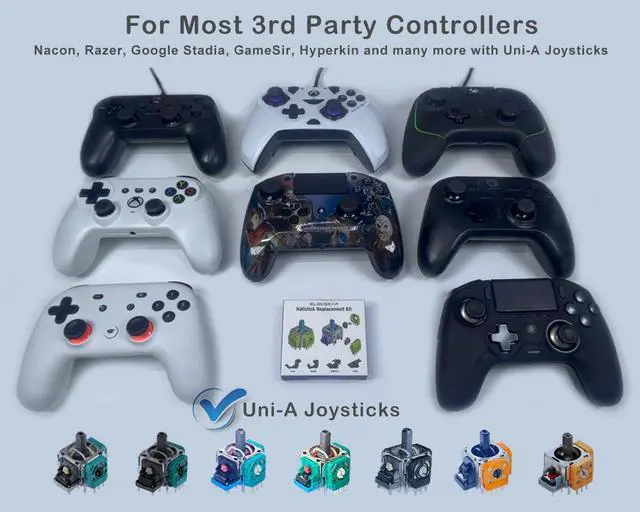

Hall Joysticks Replacement for Most Normal ALPS, FU and 3rd Joysticks
Calibration PCB with MCU for the finest Centering and Rocking Curve

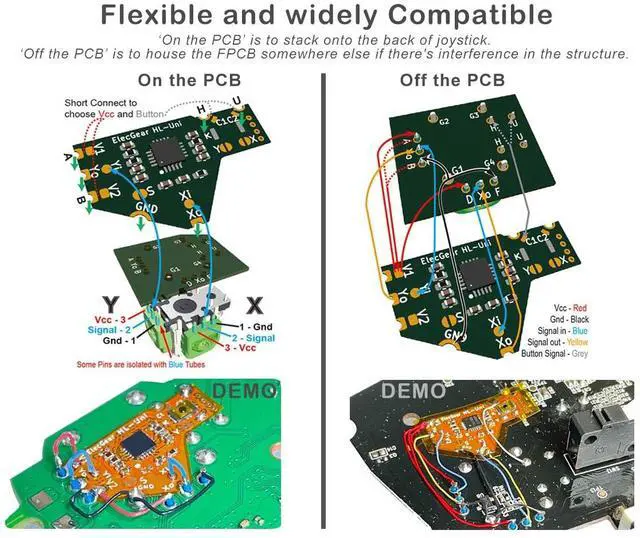

Stack on the back of the PCB, or Link the individual Wires off the PCB
A Copper Heating Plate and Solder Wick help a lot for the Desoldering
ATTENTIONs before Ordering:

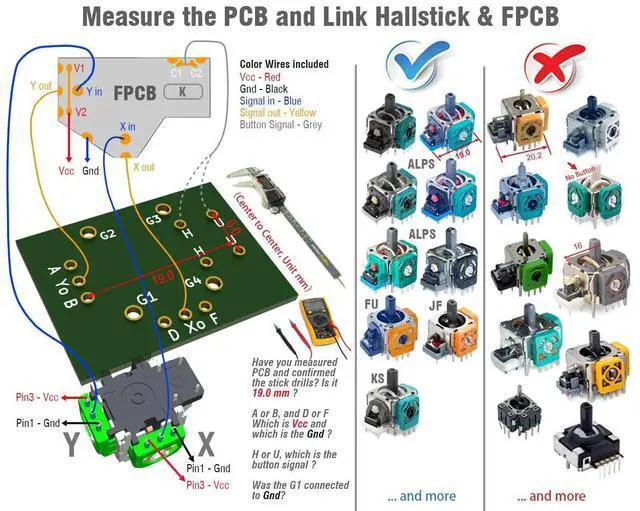

1. Thoroughly read the page and images, measure the joystick and PCB before ordering
2. This UniA fits normal analog sticks measured 19.0 mm on the image. While UniB is for 20.2 mm sticks
3. Serious electronic know-how and soldering skills required. Not for newbies

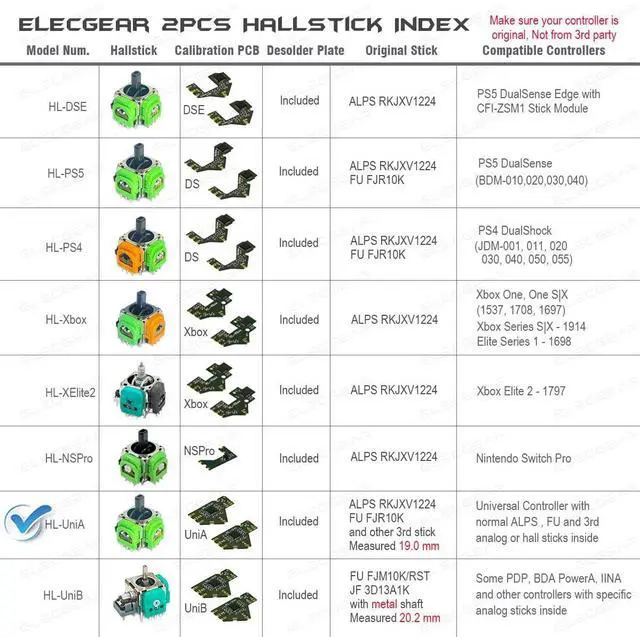

4. Turn to ours HL-PS4, PS5, DSE, Xbox and NSPro for these specific controllers
5. Make sure your controller works with the tester web link (View the image), and see if your controller shows the LR circles. (Other joystick test tool is also OK. )
6. Teardown screwdriver tools, USB wired/wireless controllers, other soldering tools and materials are required, however NOT included
ATTENTIONs before Operation:
1. Fully read the installation guide. And understand the DEMOs before DIY
2. Before desolder the old analog stick off, the main board should be carefully measured with a multi-meter
Reminder on the Button and Calibration:
1. The button signal will be used when calibrating. The button in the stick will work in 99% cases. In case it does not work, remove the connection on C1 and C2, use the onboard button instead
2. Study if your controller has a built-in App or power-on self-calibration. Co-work these settings with the calibration modes
What's in the box:
2x Hall Joysticks UniA
2x Calibration PCB UniA
1x Heating Plate
1x Solder Wick
5x Color Wires for wiring off the PCB
1x Installation Guide in English alone
This UniA version of Repair kit was rated 10 difficulty. Not for beginners
Hall Joysticks Replacement for Most Normal ALPS, FU and 3rd Joysticks
Calibration PCB with MCU for the finest Centering and Rocking Curve
Stack on the back of the PCB, or Link the individual Wires off the PCB
A Copper Heating Plate and Solder Wick help a lot for the Desoldering
ATTENTIONs before Ordering:
1. Thoroughly read the page and images, measure the joystick and PCB before ordering
2. This UniA fits normal analog sticks measured 19.0 mm on the image. While UniB is for 20.2 mm sticks
3. Serious electronic know-how and soldering skills required. Not for newbies
4. Turn to ours HL-PS4, PS5, DSE, Xbox and NSPro for these specific controllers
5. Make sure your controller works with the tester web link (View the image), and see if your controller shows the LR circles. (Other joystick test tool is also OK. )
6. Teardown screwdriver tools, USB wired/wireless controllers, other soldering tools and materials are required, however NOT included
ATTENTIONs before Operation:
1. Fully read the installation guide. And understand the DEMOs before DIY
2. Before desolder the old analog stick off, the main board should be carefully measured with a multi-meter
Reminder on the Button and Calibration:
1. The button signal will be used when calibrating. The button in the stick will work in 99% cases. In case it does not work, remove the connection on C1 and C2, use the onboard button instead
2. Study if your controller has a built-in App or power-on self-calibration. Co-work these settings with the calibration modes
What's in the box:
2x Hall Joysticks UniA
2x Calibration PCB UniA
1x Heating Plate
1x Solder Wick
5x Color Wires for wiring off the PCB
1x Installation Guide in English alone
