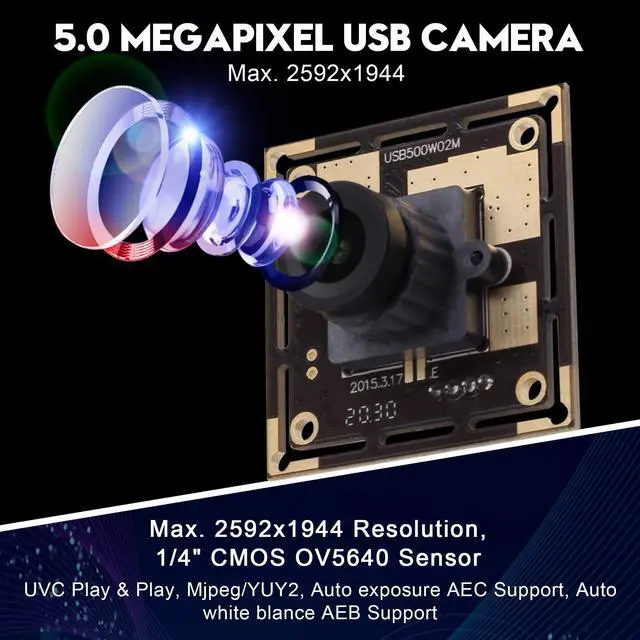

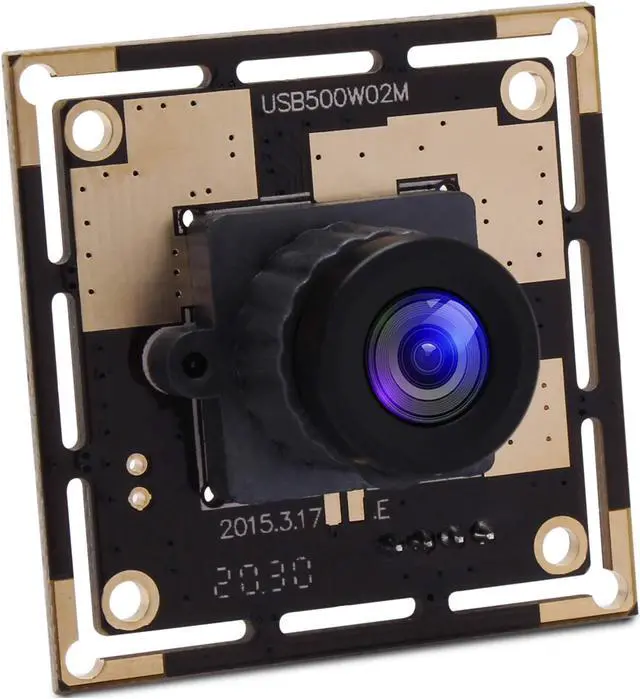

SVPRO 5MP USB Camera Module Wide Angle MJPEG USB Webcam Camera HD 2592X1944 CMOS OV5640 Free Driver Mac Linux Android Windows USB Machine Vision Camera Board Support UVC Web Cams
- High Quality Image Sensor---5Megapixel CMOS sensor for HD image up to max.2592 (H) x 1944 (V) pixels.High quality lens, true color image and not distorted.
- High Speed USB1.1/USB2.0 Compatible ---USB Connecting port in this camera module support high speed usb 1.1/usb 2.0 data transmission,occupy less bandwidth,greatly improved the working efficiency.
- High pixel technology Camera---High Definition 1280x720@30fps /2592x1944@15fps, Webcamera usb module with 5 megapixel high pixel technology for sharp image and accurate color reproduction.
- Low light performance---Ideal for any lighting condition.USB camera module with High definition and lower Color reproduction deviation produce sharp image and accurate information, ideal for many applications such as security systems, portable video system, Videophone, industrial monitoring of machines and toys.
- Camera with UVC---Connected on a beaglebone black/ Rasperry Pi,Octoprint for 3d printer monitoring; works perfectly on lin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SVPRO MJPEG USB Camera module's final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth.
And most Linux USB port device is USB 1.1, because bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB 1.1 yet.
Specification:
Sensor: 1/4" CMOS OV5640
Lens size: 5.0 megapixel, Max. 2592 (H) x1944 (V) pixels
Max.
Resolution: 2592X1944
Picture format: MJPEG
USB Protocal: USB 2.0 HS/FS

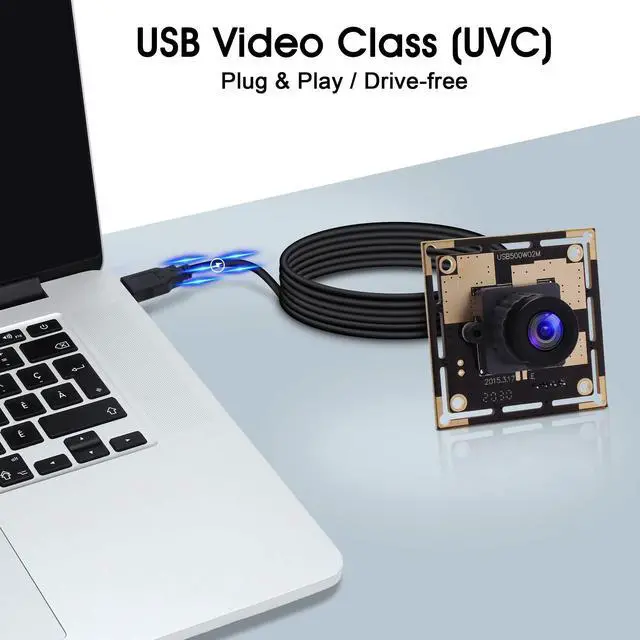

Support free driver: USB Video Class (UVC) 1.1
Auto exposure AEC: Support
Auto white blance AEB: Support
Advantages of the usb camera
*5 megapixel CMOS sensor for a high quality image.
*Hi-Speed USB 2.0 interface for high-resolution PC camera interface.
* High pixel technology for a sharp image and accurate color reproduction.
*Low light performance: ideal for any lighting condition.

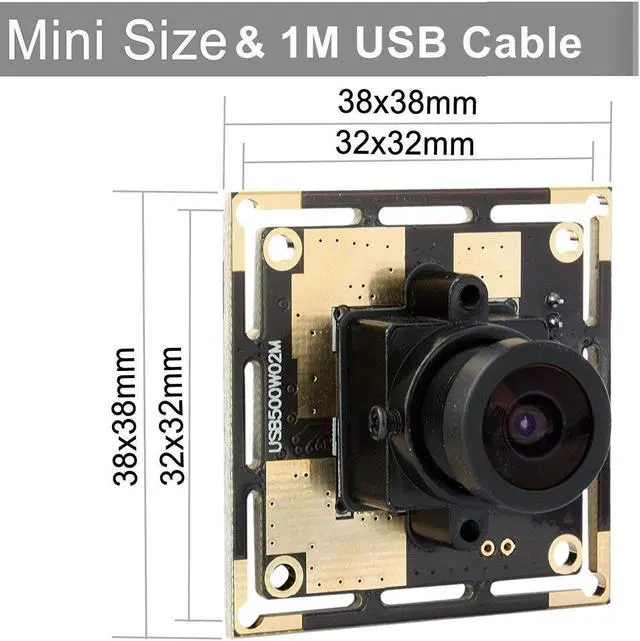

*Super small outline and thin profile for integrated applications.
*High frame rate: 30 fps in 1280X720 resolution.
*High quality lens, true color image and not distorted.
*Low power consumption: ideal for portable equipment.
*UVC for use in Linux Windows XP WIN CE MAC SP2 or above
Frame rate:
2592 (H) x 1944 (V) pixels MJPEG 8fps, 2048 (H) x 1536 (V) pixels MJPEG 10fps
1600 (H) x 1200 (V) pixels MJPEG 12fps, 1920 (H) x 1080 (V) pixels MJPEG 12fps
1280 (H) x 1024 (V) pixels MJPEG 12fps, 1280 (H) x 720 (V) pixels MJPEG 30fps
1024 (H) x 768 (V) pixels MJPEG 30fps, 800 (H) x 600 (V) pixels MJPEG 30fps
640 (H) x 480 (V) pixels MJPEG 30fps, 320 (H) x 240 (V) pixels MJPEG 30fps"
Adjustable parameters: Brightness / Contrast/ Color saturation /Definition/Gamma/WB
Worktemperature: DEGREES(-20~70)
Support OS: WinXP/Vista/WIN7/WIN8/Linux with UVC Mac-OS X 10.4. 8 or later/Wince with UVC/Android 4.0 or above
And most Linux USB port device is USB 1.1, because bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB 1.1 yet.
Specification:
Sensor: 1/4" CMOS OV5640
Lens size: 5.0 megapixel, Max. 2592 (H) x1944 (V) pixels
Max.
Resolution: 2592X1944
Picture format: MJPEG
USB Protocal: USB 2.0 HS/FS
Support free driver: USB Video Class (UVC) 1.1
Auto exposure AEC: Support
Auto white blance AEB: Support
Advantages of the usb camera
*5 megapixel CMOS sensor for a high quality image.
*Hi-Speed USB 2.0 interface for high-resolution PC camera interface.
* High pixel technology for a sharp image and accurate color reproduction.
*Low light performance: ideal for any lighting condition.
*Super small outline and thin profile for integrated applications.
*High frame rate: 30 fps in 1280X720 resolution.
*High quality lens, true color image and not distorted.
*Low power consumption: ideal for portable equipment.
*UVC for use in Linux Windows XP WIN CE MAC SP2 or above
Frame rate:
2592 (H) x 1944 (V) pixels MJPEG 8fps, 2048 (H) x 1536 (V) pixels MJPEG 10fps
1600 (H) x 1200 (V) pixels MJPEG 12fps, 1920 (H) x 1080 (V) pixels MJPEG 12fps
1280 (H) x 1024 (V) pixels MJPEG 12fps, 1280 (H) x 720 (V) pixels MJPEG 30fps
1024 (H) x 768 (V) pixels MJPEG 30fps, 800 (H) x 600 (V) pixels MJPEG 30fps
640 (H) x 480 (V) pixels MJPEG 30fps, 320 (H) x 240 (V) pixels MJPEG 30fps"
Adjustable parameters: Brightness / Contrast/ Color saturation /Definition/Gamma/WB
Worktemperature: DEGREES(-20~70)
Support OS: WinXP/Vista/WIN7/WIN8/Linux with UVC Mac-OS X 10.4. 8 or later/Wince with UVC/Android 4.0 or above
