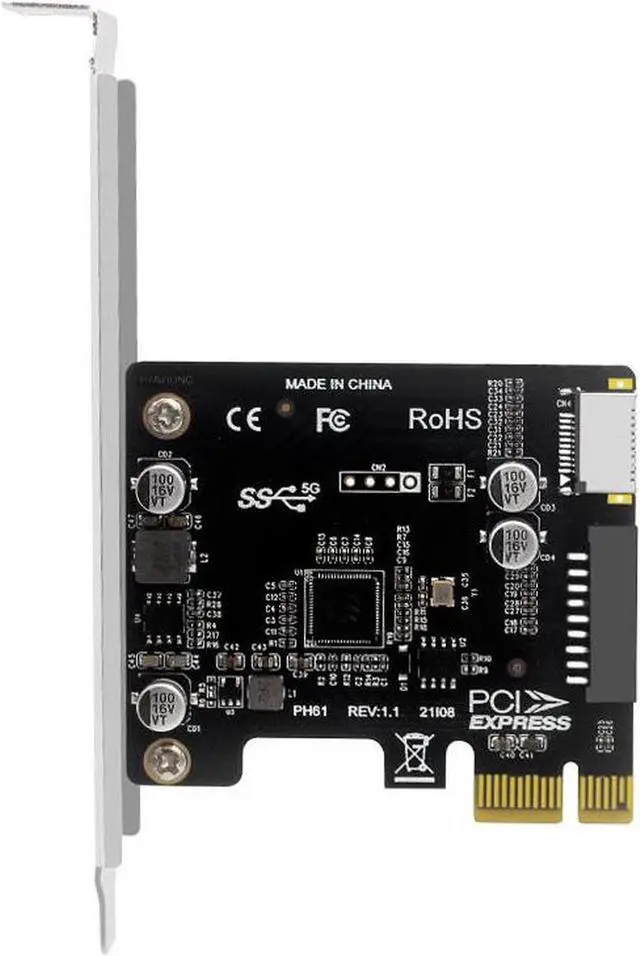

Main image of PCIe to USB 3.2 5Gbps Type-E A Key & USB 3.0 20Pin Motherboard Header Expansion Card for Front Panel ,PCIe Express to USB Internal Connector 20 Pin Adapter

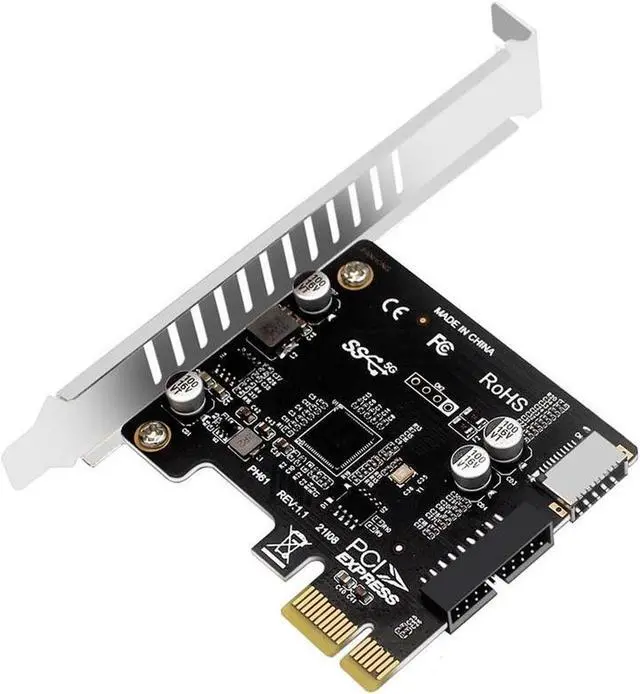

Alt view image 2 of 5 - PCIe to USB 3.2 5Gbps Type-E A Key & USB 3.0 20Pin Motherboard Header Expansion Card for Front Panel ,PCIe Express to USB Internal Connector 20 Pin Adapter

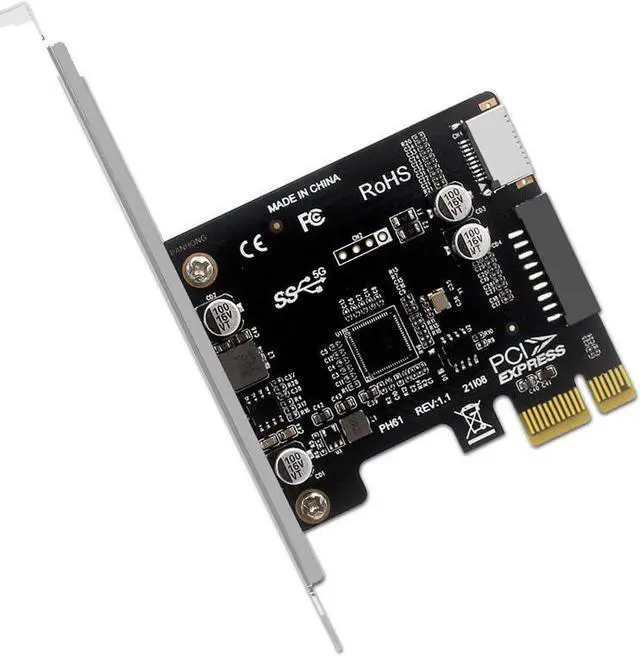

Alt view image 3 of 5 - PCIe to USB 3.2 5Gbps Type-E A Key & USB 3.0 20Pin Motherboard Header Expansion Card for Front Panel ,PCIe Express to USB Internal Connector 20 Pin Adapter

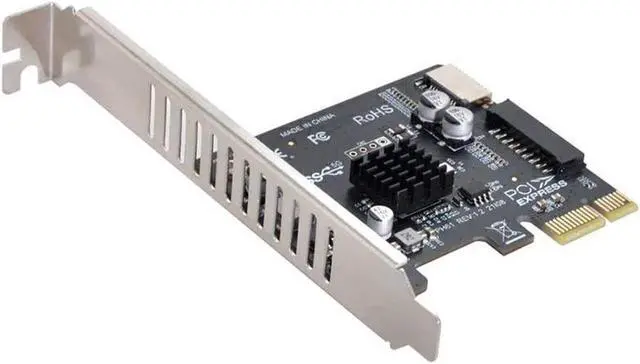

Alt view image 4 of 5 - PCIe to USB 3.2 5Gbps Type-E A Key & USB 3.0 20Pin Motherboard Header Expansion Card for Front Panel ,PCIe Express to USB Internal Connector 20 Pin Adapter

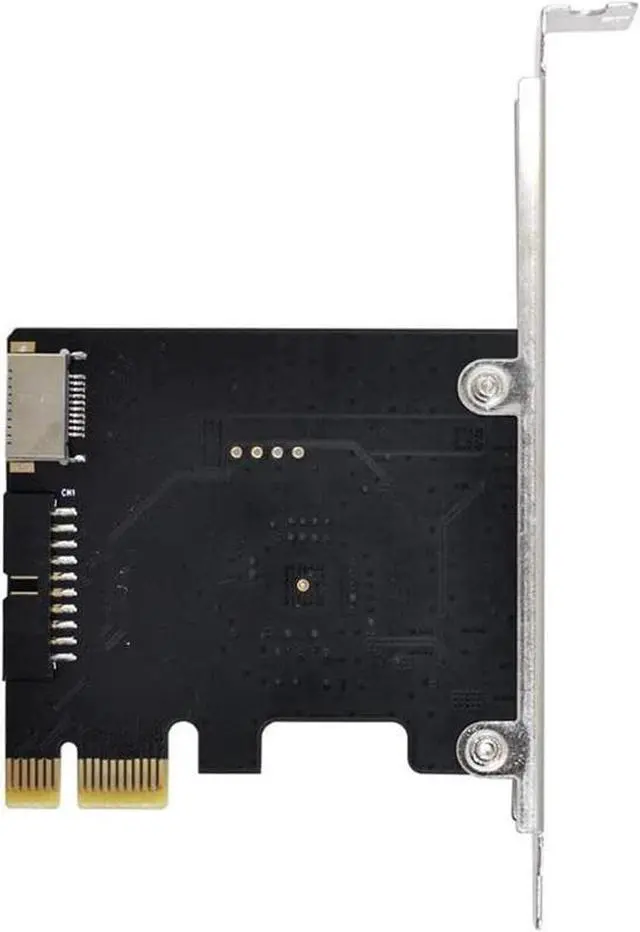

Alt view image 5 of 5 - PCIe to USB 3.2 5Gbps Type-E A Key & USB 3.0 20Pin Motherboard Header Expansion Card for Front Panel ,PCIe Express to USB Internal Connector 20 Pin Adapter

Shop All Vszerda Products | Visit YuXuan Technology Store

PCIe to USB 3.2 5Gbps Type-E A Key & USB 3.0 20Pin Motherboard Header Expansion Card for Front Panel ,PCIe Express to USB Internal Connector 20 Pin Adapter

Be the first to review this product...

Converts the motherboard's available PCI-E 1x to USB 20 Pin Motherboard Header
Expand PCIe slot to USB 3.2 20Pin internal header for front panel or rear panel
Expand PCIe to one USB 3.2 Type-E A Key and USB 3.0 20Pin Headers
Supports transfer rates up to 5Gbps
Compatible with PCIe x1, PCIe x4, PCIe x8, PCIe x16 Slot
Compatible with Windows XP, WIN7, WIN8, VISTA, WIN10, WIN11 32BIT/64BIT, LINUX OS System

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Features
Converts the motherboard's available PCI-E 1x to USB 20 Pin Motherboard Header
Expand PCIe slot to USB 3.2 20Pin internal header for front panel or rear panel
Expand PCIe to one USB 3.2 Type-E A Key and USB 3.0 20Pin Headers
Supports transfer rates up to 5Gbps
Compatible with PCIe x1, PCIe x4, PCIe x8, PCIe x16 Slot
Compatible with Windows XP, WIN7, WIN8, VISTA, WIN10, WIN11 32BIT/64BIT, LINUX OS System

SPECIFICATION
Type: USB 3.2 TYPE-E Front Panel Expansion Card
Input: PCI-E 1X(Compatible with PCI-E 4X 8X 16X )
Output 1: USB 3.1 GEN1 motherboard header - Type-E A-Key
Output 2: USB 3.0 20Pin motherboard header
Data transfer speed: 5Gbps Transfer Speed
Chipset: VIA VL 805
OS requirement: Windows XP, WIN7, WIN8, VISTA, WIN10, WIN11 32BIT/64BIT, LINUX OS System
Mounting: Full profile PCI slot bracket
