Indoor GPS Signal Repeater Amplifier Transfer L1 BD2 Full Kit 15M Distance (60M GPS Cable)

Indoor GPS Signal Repeater Amplifier Transfer L1 BD2 Full Kit 15M Distance
Features:
- Built with pure cast-aluminum housing, amplifier main unit ensures signals
- Pure copper 60m antenna cable is made in line with SYV-50-3 standard, prolong its life span
- 4-level amplifier tube with double filters on amplifier board
- Easy wiring and simple operation to its signal transfer device
- No limit to the number of indoor GPS transceivers and maintenance-
- Larger Coverage Area: The maximum distance is up to 15m

Specifications

:
Receiving Antenna
- Frequency: 1575±5MHz + Beidou
- Polarization mode right circular polarization
- Antenna Gain: 3.5 dB
- Amplifier Gain: 37dB
- Noise Factor: 1.5 dB
- Reflection Loss: -14dB (SWR 1.5 )
- P- 1: 10 dBm
- Interference Suppression: 20dB (f0±100MHz)
- Power Supply: 3V/5V DC
- Connector: SMA
- Mounting Way: Thread (M24X 1.5 ) Connection
- Volume: Diameter 96 x 126mm
- Working Temperature: -45 to 85
- Storage Temperature: -50 to 90
- Humidity: 100%
Antenna Cable
- Length: 60M (Can be customized)
- Cable Standard: SYV-50-3
Amplifier
- Frequency: 1575±5MHz + Beidou
- Gain: 54dB
- Voltage: DC 5V
- Interference Suppression: 20dB (f0±100MHz)
- Reflection Loss: -14dB (SWR 1.5 )
Transmitter
- Frequency: 1575±5MHz + Beidou
- Gain: 3.5DBI
- Reflection Loss: -14dB (SWR 1.5 )
Power Supply
- For GPS Signal Transfer: 220V/50Hz
- Outdoor Antenna is powered by GPS Signal Transfer

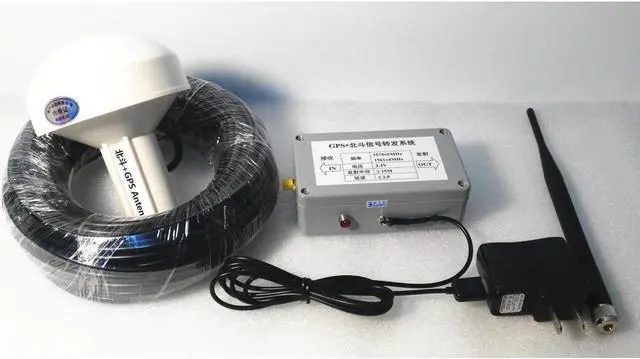

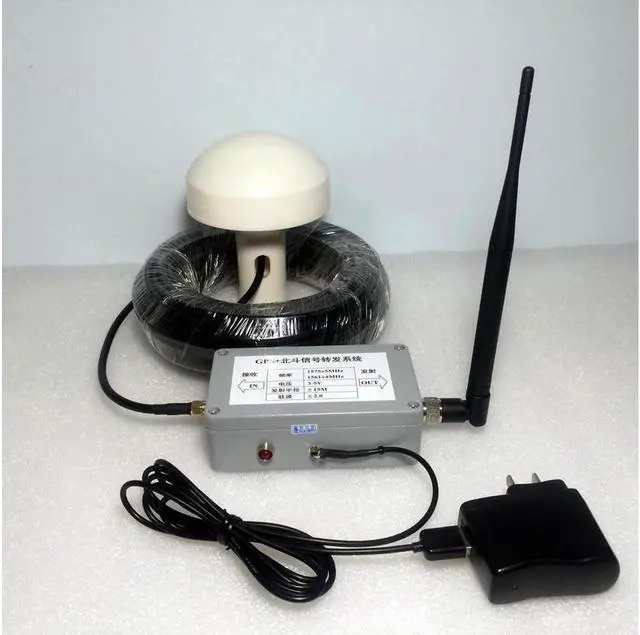

Package Included:

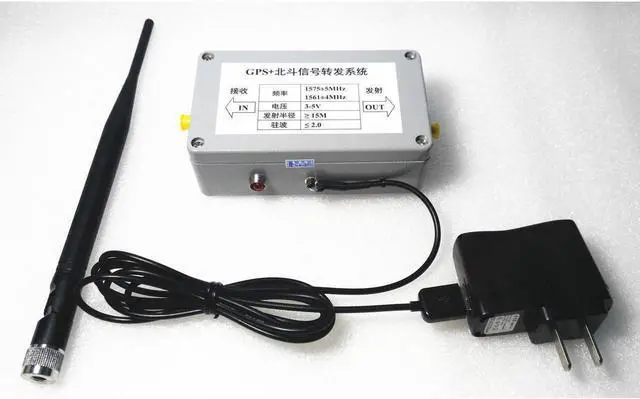

- 1 x GPS Signal Transfer Main Unit
- 1 x GPS Antenna
- 1 x 60M GPS Cable
- 1 x Transmitting Antenna
- 1 x Power Adapter
Note: The length of antenna cable is 60M. The length can be customized. If other lengths or online amplifiers are needed, please contact us. Thank you!
