Single Port Gigabit Ethernet PCI-e x1 Intel I210 Network Interface Card (SY-PEX24068)

based on the intel ethernet controller i210, this adapter represents the next step in the gigabit ethernet (gbe) networking evolution for the enterprise and data center offering audio-video-bridging (avb) support, along with power management technologies such as energy efficient ethernet (eee) and dma coalescing (dmac). the intel ethernet controller i210 (i210) is a single port, compact, low power component that supports gbe designs. the i210-at and it offer a fully-integrated gbe media access control (mac) and a physical layer (phy) port. the i210-is offers a fully-integrated mac and an sgmii/serdes port that can be connected to a backplane or an external phy.

the i210 also supports pci express [pcie v 2.1 ( 2.5 gt/s)].
low-halogen single-port pci-express 10/100/1000 ethernet adapter
the power management features including energy efficient ethernet (eee), dma coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption

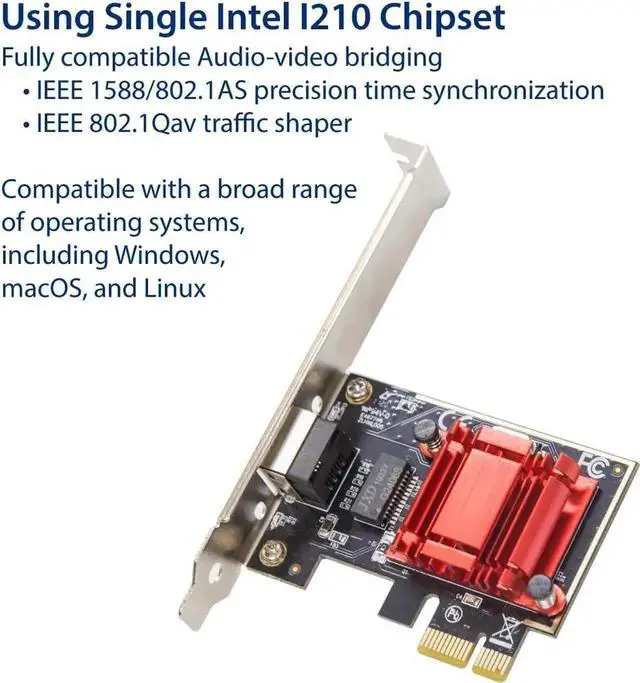

ieee 802.1 qav audio-video-bridging (avb) for tightly controlled media stream synchronization, buffering, and reservation
high-performing design supporting pci express gen 2.1 2.5 gt/s
