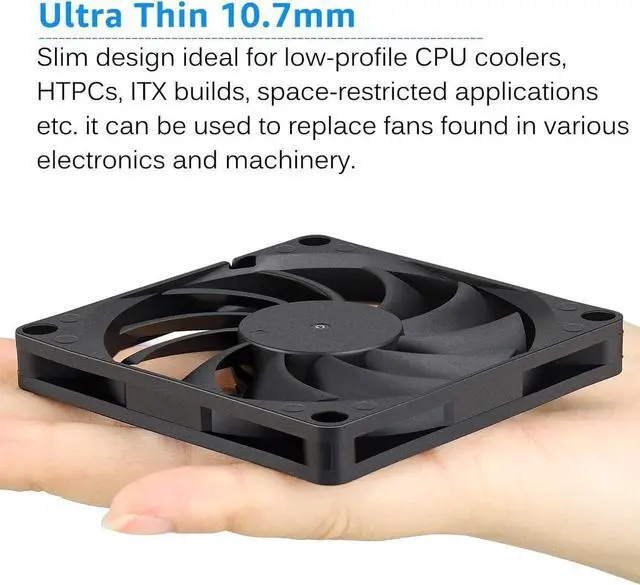

Great for Tight SpacesThe GDA8010 fan has an installation height of only 10.7 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit

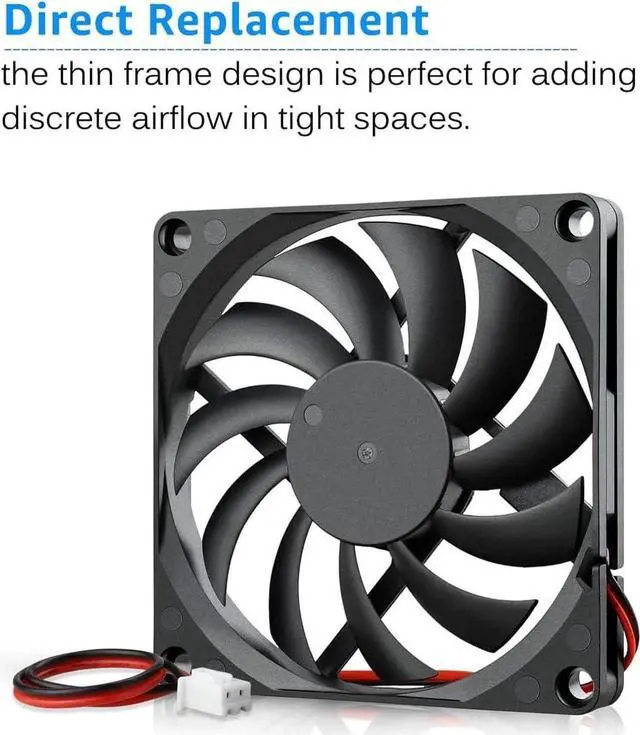

Slim Frame DesignUltra thin 80x10mm fan ideal for low-profile CPU heatsinks, HTP
Cs, Mini ITX builds, space-restricted applications etc. or as replace fans found in Laptop Cooler, Desktop PC Computer, Expansion Board and other electronics

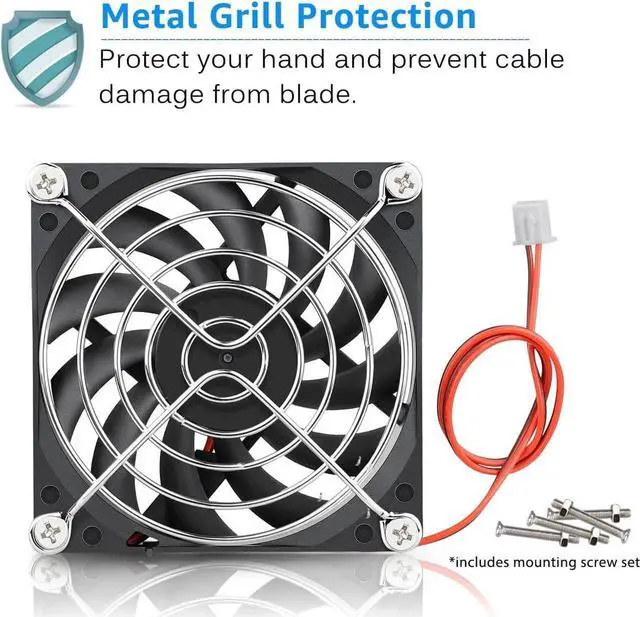

Fully ProtectionMetal fan grill on the fan side can protect your hand and prevent cable damage from blade, includes mounting screws set

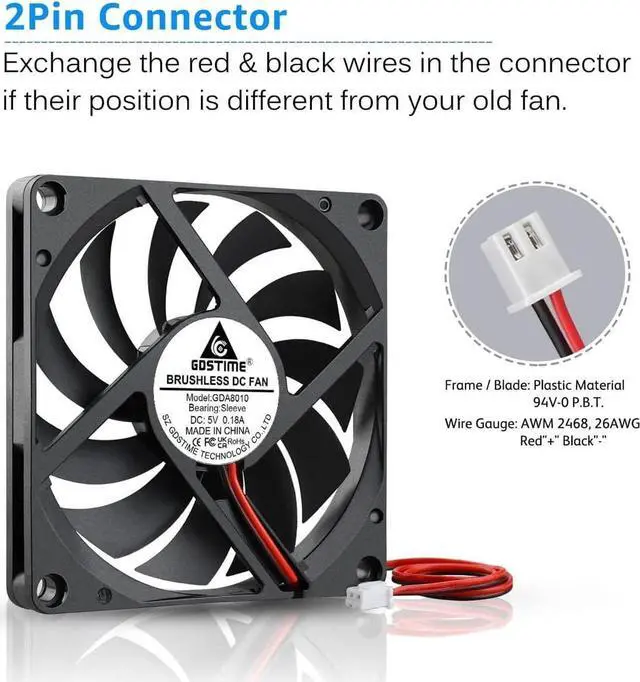

Convenient 2 Pin Power ConnectorRed wire: Positive+;
Black wire: Negative-; You can exchange the red and black wires in the connector if their position is different from your old fan

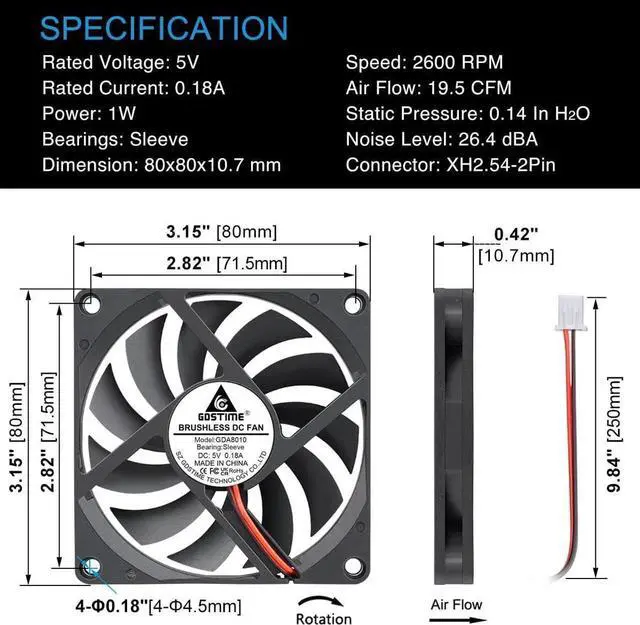

Fan Specs80 x 80 x 10.7 mm ( 3.15 x 3.15 x 0.42 in. ) |
Rated Voltage: 5V DC |
Rated Current: 0.18 Amp |
Power: 1W |
Airflow: 19.5 CFM |
Static Pressure: 0.14 In H2O |
Noise: 26.4 dBA | Speed: 2600 RPM
Brushless MotorOperating Voltage: 4 to 5.5V, overtake 5.5V, it also can work, but will effects the fan' s life; You can enjoy One Year Warranty (Free Replacement) if quality problems caused by non-human factors
