Features:
- Made of soft but firm enough improved rubber prolong the lifespan

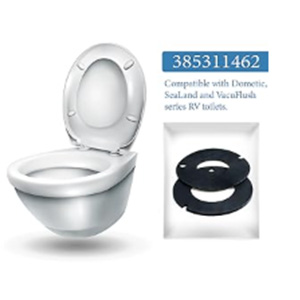

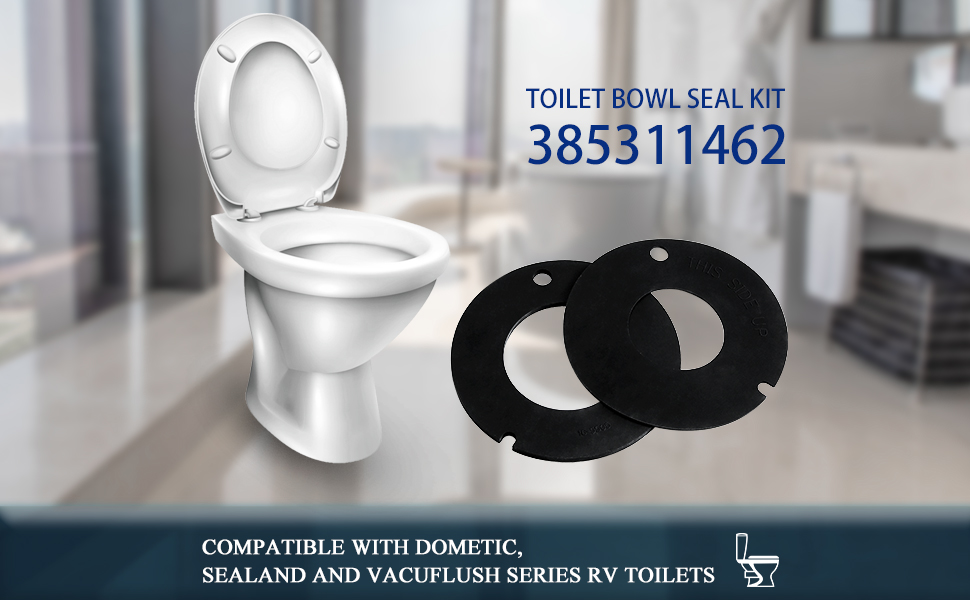

- Each package includes 2 piece (1 x rubber flush ball seal and 1 x rubber bowl seal)
Compatibility
- Compatible with SeaLand, VacuFlush and Travel Trailer RV toilets
- Fit models: 506+, 510+, 511 H, 547+, 548+, 706, 709, 748, 749, 806, 808, 847, 848, 1147, 1148, 2010, 2011, 5006, 5047, 5048, 5049, EcoVac 146-149, VacuFlush 168, 606, 647, 648, 1006, 1008, 1047, 1048, 1049, 1106, 5146, 5147, 5148, 5149
Superiority
- Super easy to install with simple tools needed
- Avoid leakage effectively and hold water in service
Installation Steps (1-5)
- Turn off the water supply
- Press the flush petal and drain water from toilet bowl, remove pedestal cover
- Loosen stainless steel band and remove plastic half clamps that hold china bowl and plastic base together
- Tilt China bowl forward,grasp vacuum breaker attached to back of toilet and pull it out off toilet.Set toilet bowl aside
- Remove both old seals and place new seals with TISH SIDE UP on top of thin seal with raised circle of thin seal protruding up through center of large disc
Installation Steps (6-10)
- Place seal and disk assembly on top of flush ball with TISH SIDE UP showing. Align notch on edge of large disc with pin on edge of base
- Put china bowl back on toilet base, aligning notch with pin on base, and centering the bowl outlet over the flush ball. Re-insert vacuum breaker into back of toilet, pushing it all the way into the rubber sealing grommet
- Re-install plastic half clamps under loosend steel band, making sure tabs interlocks at center front of toilet. There will be a small gap at rear of toilet
- Tighten stainless steel band clamp to a minimum torque of 65 pounds
- Reinstall pedestal cover and turn on water supply
