    Connector 5pcs/lot DIY Solder Type-C Female Socket Connector Replace for Micro-USB 5Pin Female SMT Type DC 5V Power

    Be the first to review this product...
    • Mini+Micro-USB Replacement
    • Mini-USB Replacement
    • USB Type-A Chipset Replacement

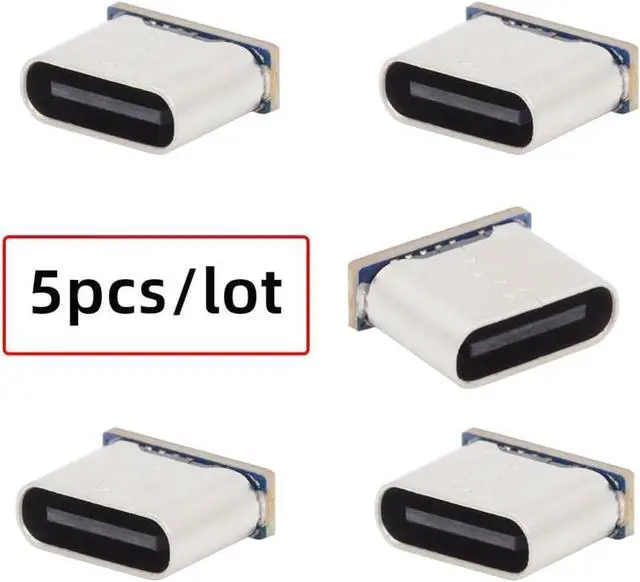

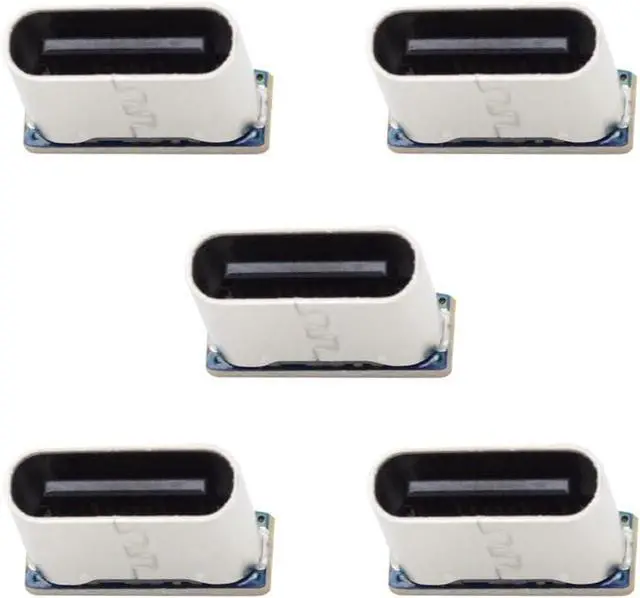

    • 5pcs/lot in the package, The Type-C female connector is replaced for Micro USB 5Pin Female; For DIY OEM solder use.

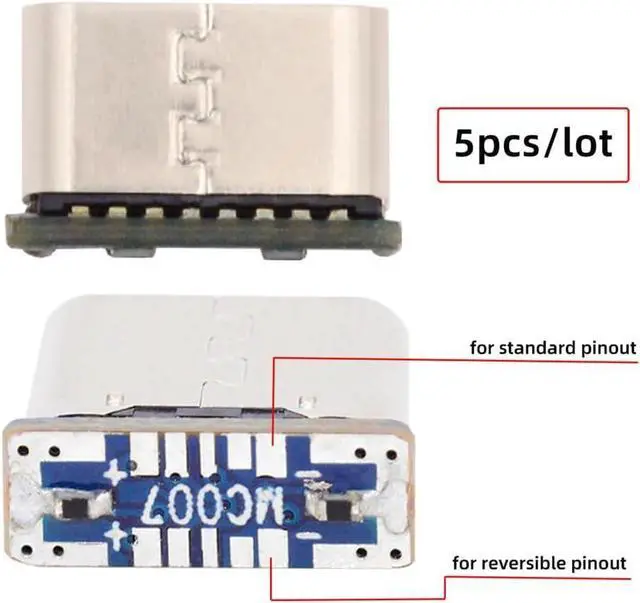

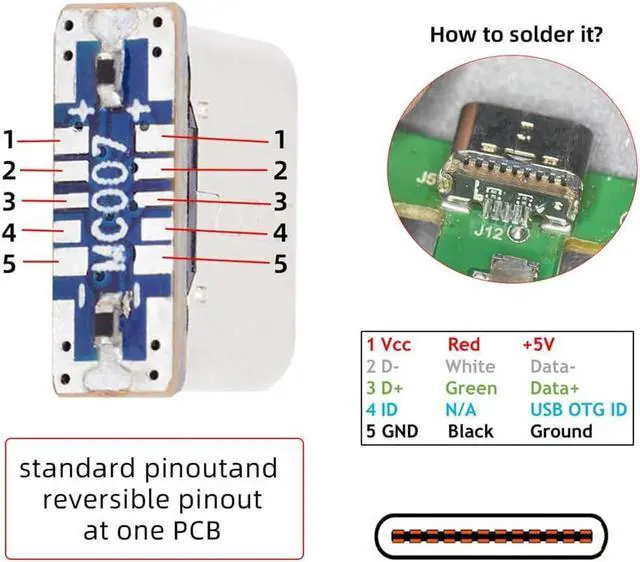

    • Two pinout at the connector, Please check the micro usb pinout is standard or reversible pinout when you solder it.You need to solder the connector yourself. Proficien in manual soldering techniques is required.

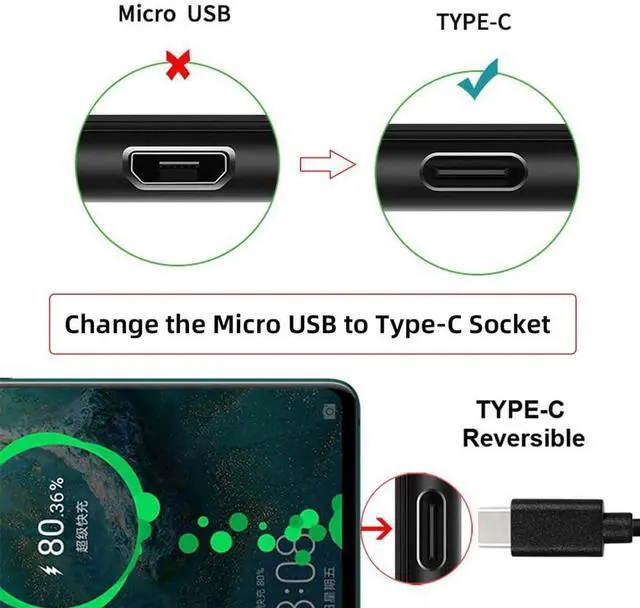

    • The hole of Micro-USB is larger than that of Type-C. You need to repair the hole yourself when changed the plug.Fast power and data,Offers a throughput of up to DC 5V 2A when used with a Type-C USB2.0 power and device.
    • Compliant with USB Base Specification 2.0, Output USB Type-C interface. Compliant with USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
    • Peripherals: Connect Camera, MP3, Speaker, and any peripheral using Micro USB connector.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. 5pcs/lot in the package, The Type-C female connector is replaced for Micro USB 5Pin Female; For DIY OEM solder use.
    2. Two pinout at the connector, Please check the micro usb pinout is standard or reversible pinout when you solder it.You need to solder the connector yourself. Proficien in manual soldering techniques is required.
    3. The hole of Micro-USB is larger than that of Type-C. You need to repair the hole yourself when changed the plug.Fast power and data,Offers a throughput of up to DC 5V 2A when used with a Type-C USB2.0 power and device.
    4. Compliant with USB Base Specification 2.0, Output USB Type-C interface. Compliant with USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
    5. Peripherals: Connect Camera, MP3, Speaker, and any peripheral using Micro USB connector.
