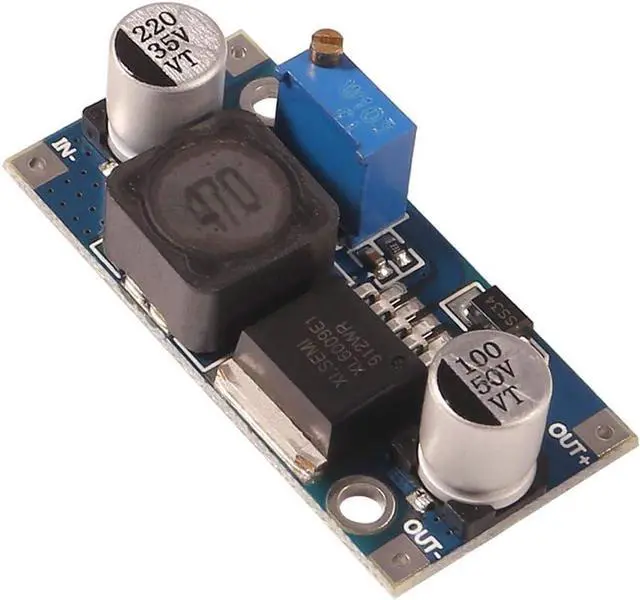

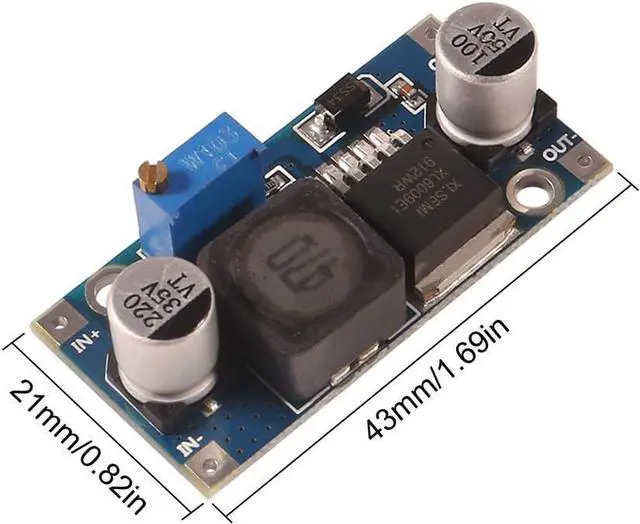

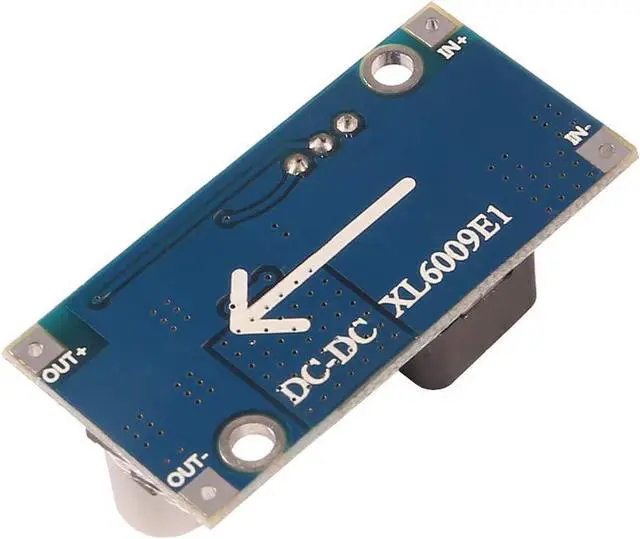

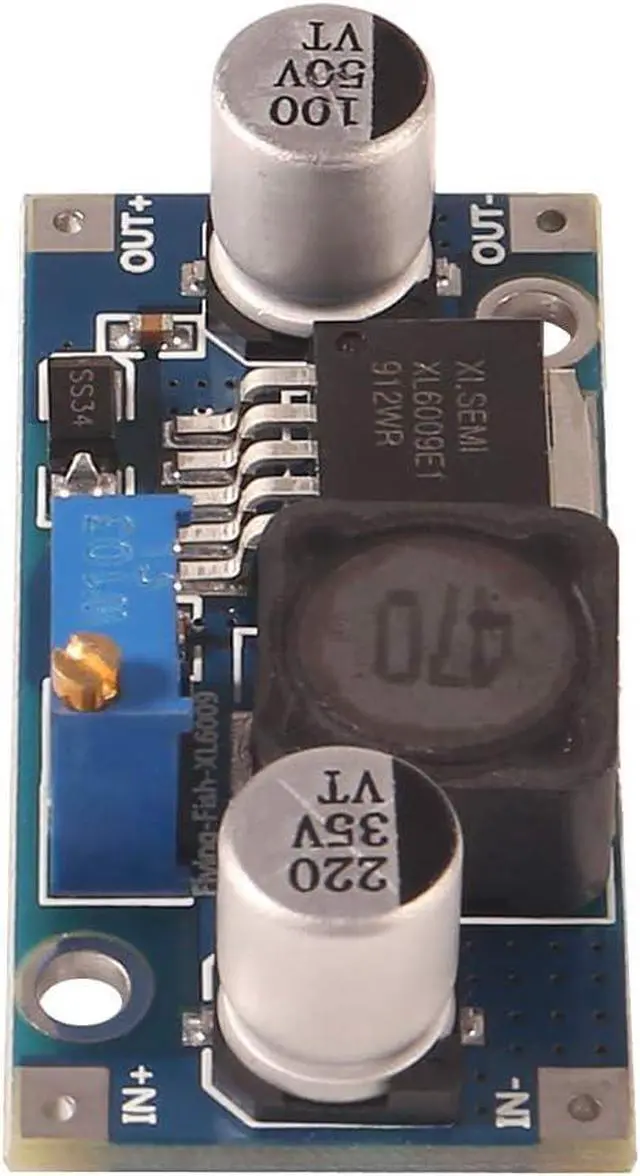

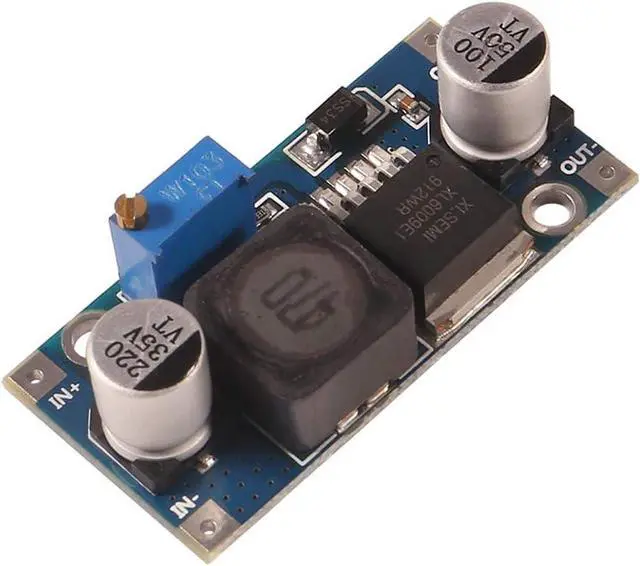

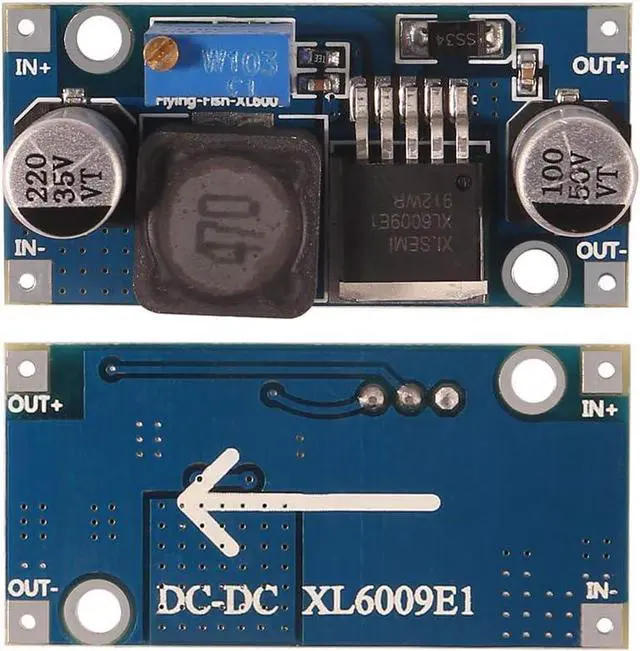

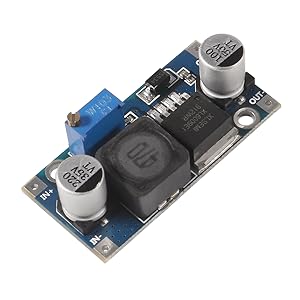

    10 Pack XL6009 Booster Step Up DC to DC Boost Converter Circuit Board, Input 3V-32V to Output 5V-35V 4A 400KHz Power Supply Module LM2577 Step-up Module

    Be the first to review this product...
    • XL6009 DC-DC adjustable boost power converter module, boost circuit board is an efficient non-isolated boost module.
    • The module uses XL6009E1 as the core chip of the second generation high frequency switch technology, and its performance is far superior to LM2577 of the first generation technology. XL6009 booster module has lower cost and better performance.
    • Built-in 4A high-efficiency MOSFET switch, making efficiency up to 94%; (LM2577 current only 3A).
    • Ultra-wide input voltage is 3V~32V, and the optimum operating voltage range is 5~32V. Ultra-wide output voltage 5V~35V;Step-up boost circuit can work safely and reliable in -40°C~85°C range
    • Applications:Power supply for electronic equipment; Boost charger; DIY a mobile power supply
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    ss

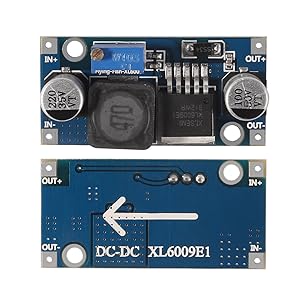

    Specifications:
    • Model: XL6009/DSN6009/XL6009E1
    • Input voltage: DC 3V - 30V (optimum working voltage range is 5V to 30V)
    • Output Voltage: DC 5V - 35V (adjustable)
    • Output Current: <4A, no-load 18mA (5V input, 8V output, no-load current 18mA, the higher the voltage, the greater the no-load current.)
    • Conversion Efficiency: <94% (the greater differential pressure, the lower the efficiency)
    • Switching Frequency : 400KHz
    • Rectification: non-synchronous rectification
    • Module property: non-isolated boost module
    s

    • Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)



    s
    Kindly Note:

    1. The output voltage must be higher than the input voltage.

    2. The input voltage should be within 5V to 30V, other input voltage may cause damage or failure with a high probability.

    3. Do not reverse the input and output interface

    4. Keep output under 2.5A and use a heat sink when for a long time working

    Package Include:

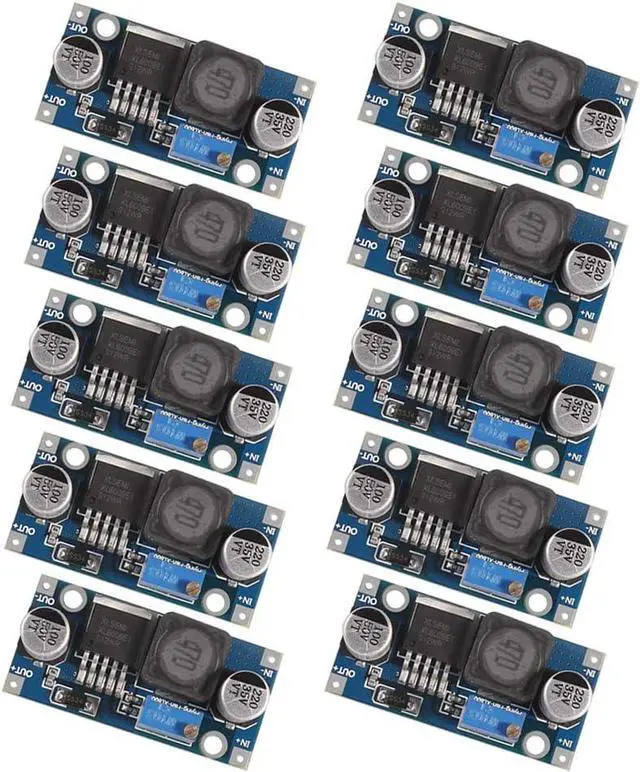

    10pcs Xl6009 Booster Power Module

    1. XL6009 DC-DC adjustable boost power converter module, boost circuit board is an efficient non-isolated boost module.
    2. The module uses XL6009E1 as the core chip of the second generation high frequency switch technology, and its performance is far superior to LM2577 of the first generation technology. XL6009 booster module has lower cost and better performance.
    3. Built-in 4A high-efficiency MOSFET switch, making efficiency up to 94%; (LM2577 current only 3A).
    4. Ultra-wide input voltage is 3V~32V, and the optimum operating voltage range is 5~32V. Ultra-wide output voltage 5V~35V;Step-up boost circuit can work safely and reliable in -40°C~85°C range
    5. Applications:Power supply for electronic equipment; Boost charger; DIY a mobile power supply
