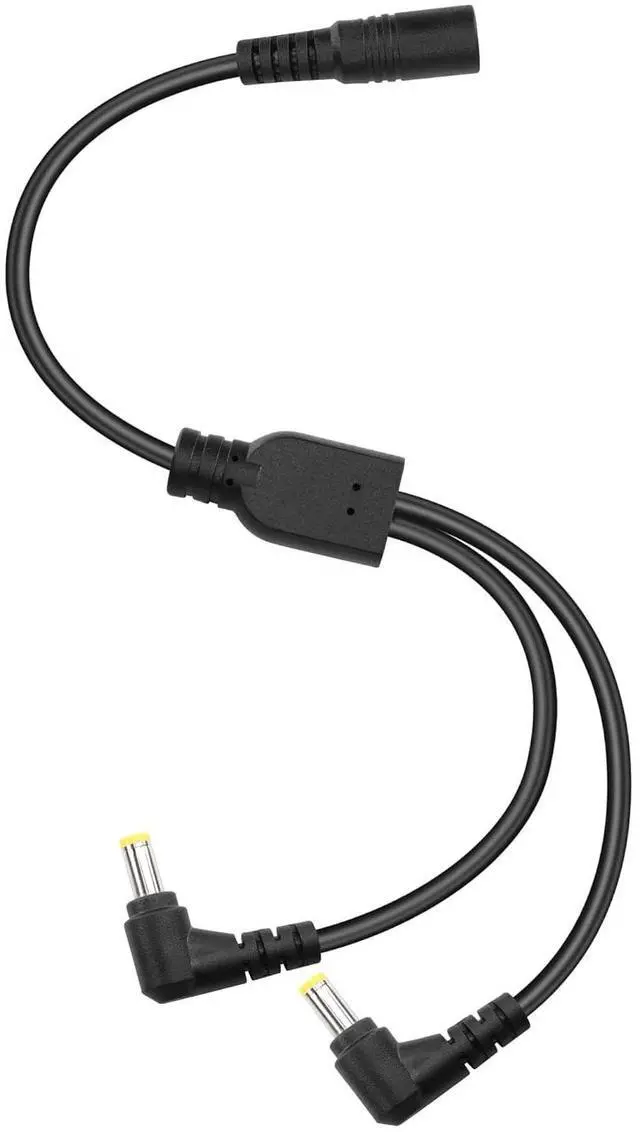

DC5525 Y-Splitter Cable 18AWG DC 5.5mm X 2.5mm Straight Female to Double Right Angle 90 Degree DC 5.5mm X 2.5mm Male Extension Power Cable for Cameras,Laptops,Routers,etc(27.5Inch)

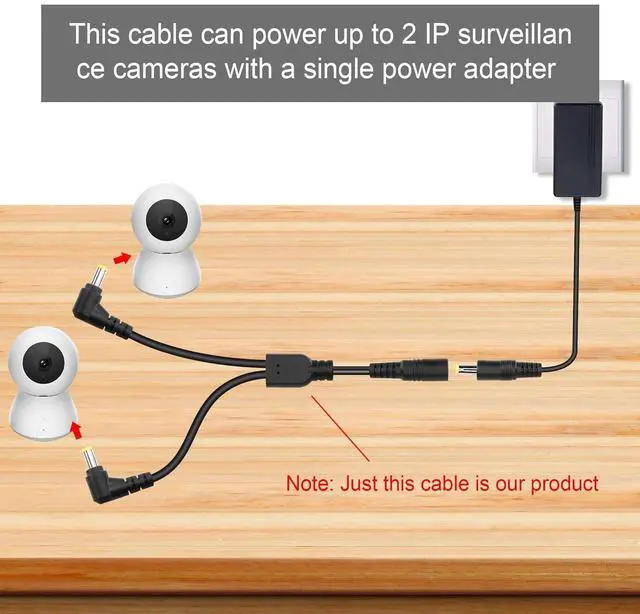

- DC5525 Y-splitter cable can be used to connect two security camera outputs for power supply via a single DC5.5mm x 2.5mm female jack input. Both cost saving and convenient.

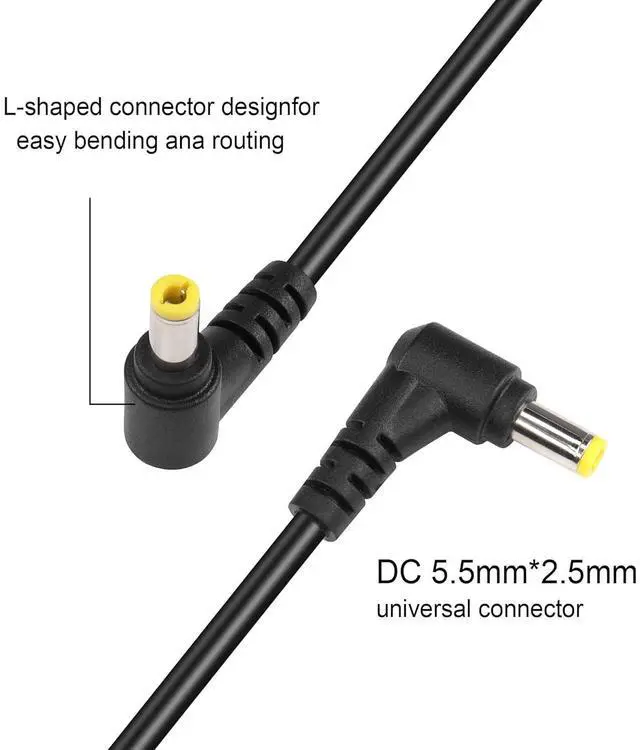

- 90 degree designThe 90 degree design of the DC 5.5mm x 2.5mm male plug solves the awkwardness of limited space between devices and allows for better management of the DC power cable in some cases, especially in small corners.

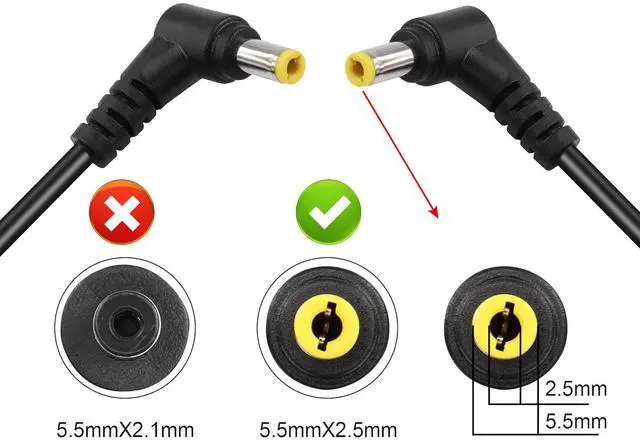

- Model parameters Connector 1: DC5.5mm x 2.5mm female plug; Connector 2: Dual DC5.5mm x 2.5mm right angle male plug; Cable size: 18AWG; Maximum current: 3.7A; Applicable voltage: DC0-24V; Applicable power: 0-88W; Cable length: 70cm/27.5inch (note: including plug length).

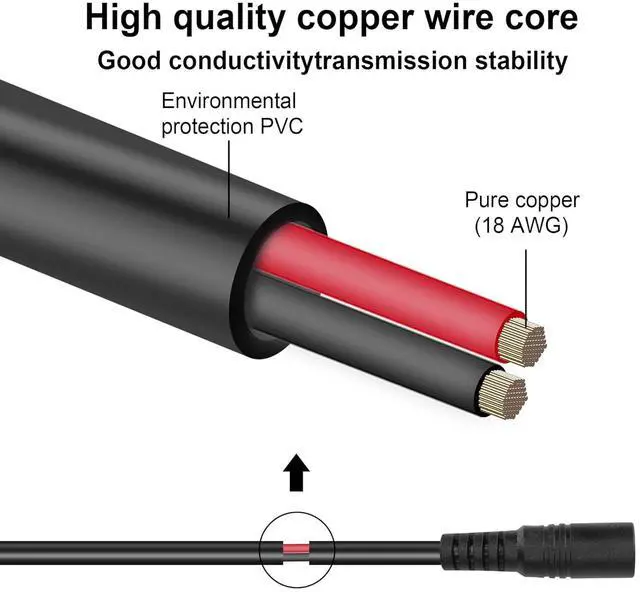

- MaterialThe cable is made of PVC skin, which is resistant to high temperature, wear resistance, flame retardant, soft and not easy to break, and durable. The conductor is made of pure copper core, which has good conductivity and oxidation resistance.
- NoteThis cable is for power supply only and does not support data transmission.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- DC5525 Y-splitter cable can be used to connect two security camera outputs for power supply via a single DC5.5mm x 2.5mm female jack input. Both cost saving and convenient.
- 90 degree designThe 90 degree design of the DC 5.5mm x 2.5mm male plug solves the awkwardness of limited space between devices and allows for better management of the DC power cable in some cases, especially in small corners.
- Model parameters Connector 1: DC5.5mm x 2.5mm female plug; Connector 2: Dual DC5.5mm x 2.5mm right angle male plug; Cable size: 18AWG; Maximum current: 3.7A; Applicable voltage: DC0-24V; Applicable power: 0-88W; Cable length: 70cm/27.5inch (note: including plug length).
- MaterialThe cable is made of PVC skin, which is resistant to high temperature, wear resistance, flame retardant, soft and not easy to break, and durable. The conductor is made of pure copper core, which has good conductivity and oxidation resistance.
- NoteThis cable is for power supply only and does not support data transmission.
