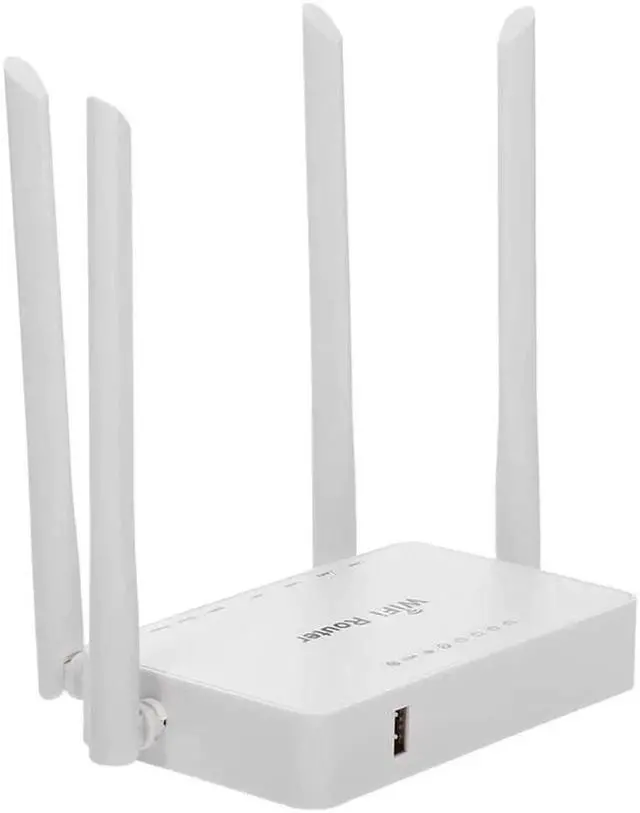

Wireless Router 2.4G 300Mbps WiFi Router 5 Ports Router with 4 External Antennas

Wireless Router 2.4G 300Mbps WiFi Router 5 Ports Router with 4 External Antennas

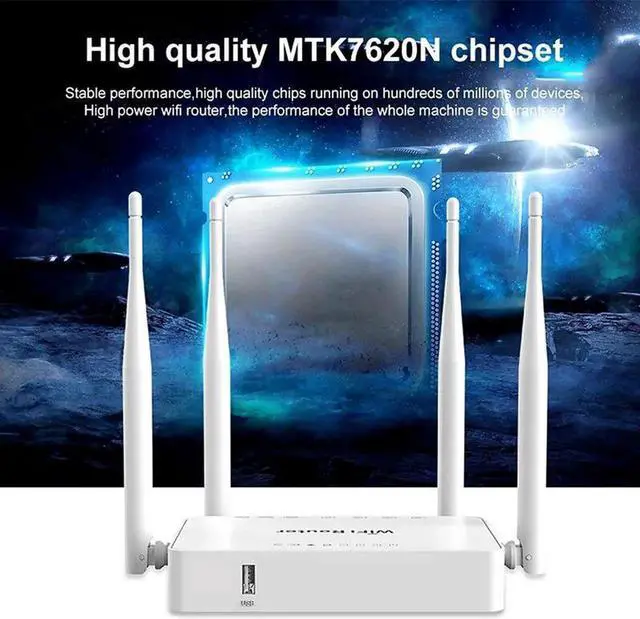

Adopt MT7620N scheme, the main frequency up to 580MHZ, provides strong and stable performance.

Support 802.11b/g/n network protocol, the transmission rate up to 300Mbps. Equipped wth 4 external antennas, which can cover a larger area.

It supports IEEE 802.3/3u standard, provides 1 10/100M WAN and 4 10/100M LAN adaptive network ports, and supports Auto MDI/MDIX.

Adopt mature, stable and strong expansibility SDK system to provide intuitive, simple and easy setting interface. It also integrates various network application functions.

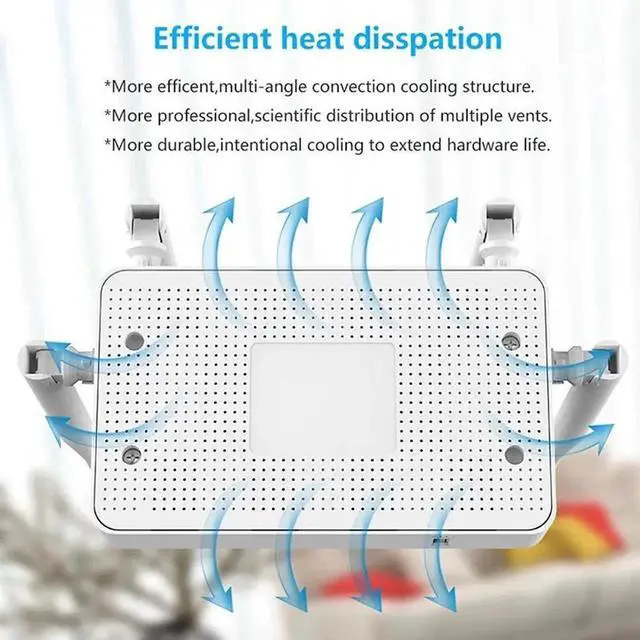

Support one button reset function. Support WEP,WPA,WPA2 and other security encryption modes, provide many ways to protect your transmission. Adopt multi-angle convection cooling structure, multiple cooling holes are distributed scientifically, efficient cooling, prolong the service life.

Specification:

Hardware

Main CPU: MT7620N/580MHZ

RAM: DDR2 RAM 64MB

FLASH: SPI 8MB

Protocol: IEEE802.11b/802.11g/802.11n/802.3/802.3u

Wireless rate: Max 300Mbps

Working frequency: 2.4GHz

Antenna: 4 * External antennas

LED: Power/WLAN/WAN/LAN1/LNA2/LNA3/LNA4

Button: Reset

Power adapter: DC 9V/0.6A

Max power consumption:less than 9W

Software

WAN type: PPPoE,Dynamic IP, Static IP

Working mode: Router

DHCP server: Server, Client list, Static address assignment

Virtual server: Port forwarding, DMZ host

Security setting: Client filtering, Mac address filtering, URL filtering, Remote WEB administration

DDNS: Support

WEB theme switching: Support

Bandwidth control: Support
