1200Mbps Wireless Router Openwrt 3G/4G LTE Wifi Router Dual-band Router Wifi Repeater With SIM Card Slot&RJ45Ports

Please noted :Open Source OpenWRT for better performance ,and the firmware of OS More user-friendly settings. two software web interface can be update .but we will build in OS firmware .

WG3526-1

4G LTE FDD:B1/B3/B5(2100/1800/850MHZ)

3G WCDMA:B1(2100MHZ)

2G GSM:B1(2100MHZ)

Working in most of Asia

WG3526-2

4G LTE FDD:B1/B3/B5/B8(2100/1800/850/900MHZ)

4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)

3G WCDMA:B1/B8(2100/900MHZ)

2G GSM:B3/B8(1800/900MHZ)

Working in most of in EU,Asia,Africa

WG3526-3

4G LTE FDD:B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800MHZ)

4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)

3G WCDMA:B1/B8(2100/900MHZ)

2G GSM:B3/B8(1800/900MHZ)

Working in all off EU ,Asia ,Africa,Oceania

WG3526-US Version

4G LTE FDD:B2/B4/B5/B7/B(1900/1700/850/2600MHZ)

3G WCDMA:B2/B4/B5(1900/1700850MHZ)

Working in USA/CA/Mexico

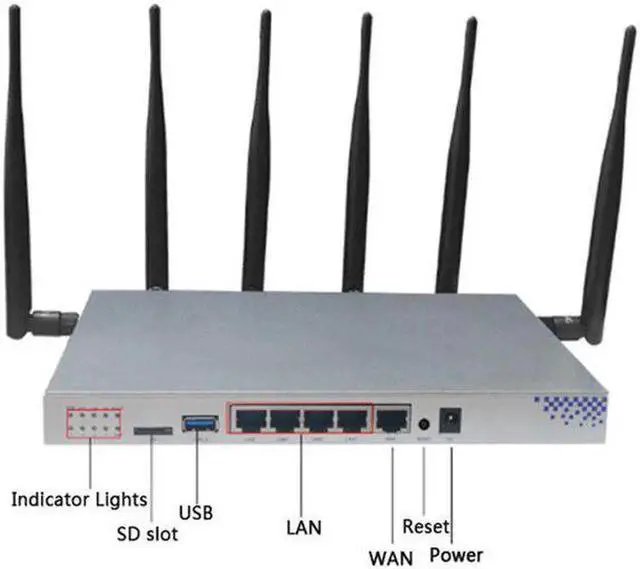

Hardware:

WG3526-4G is using MTK7621 solution, up to 880MHz. It supports 5*10/100/1000M RJ45 port, 1*USB 3.0, 1* internal PCI-E interface, 1*Micro Card, SATA3.0 and so on.

Wireless:

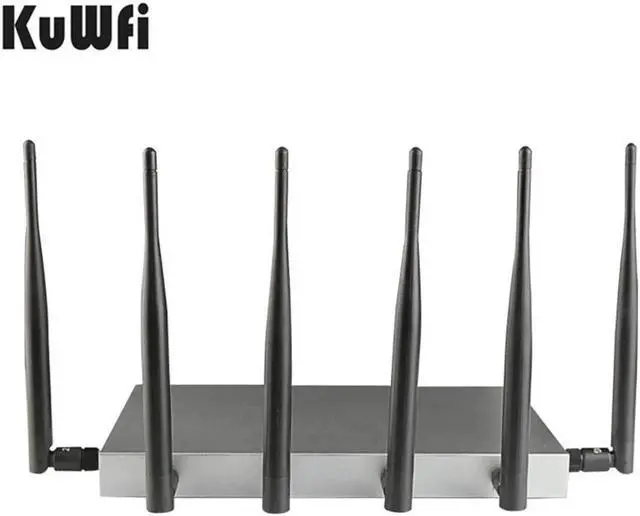

It is compatible with IEEE802.11AC/N/G/B/A wireless network protocol. The max wireless transfer rate up to 1200Mbps. The external 4 pcs 5dBi antennas can make good wireless performance and broader coverage

Software:

The original OpenWrt based on Linux is including 802.11ac, IPV6 and Win8 certification, which provides drivers to support VPN upper layer software, audio and touch screen. L7 QoS can work with on-chip hardware accelerators HNAT/HQoS smoothly, it also provides Auto QoS function for Internet and SMB routers.

Spec:

Provides 1* external USB 3.0
